Un
ID603
ID602
Default: Nominal
voltage of the motor
Linear
Squared
Field
weakening
point
Default:
Nominal frequency
of the motor
U[V]
f[Hz]

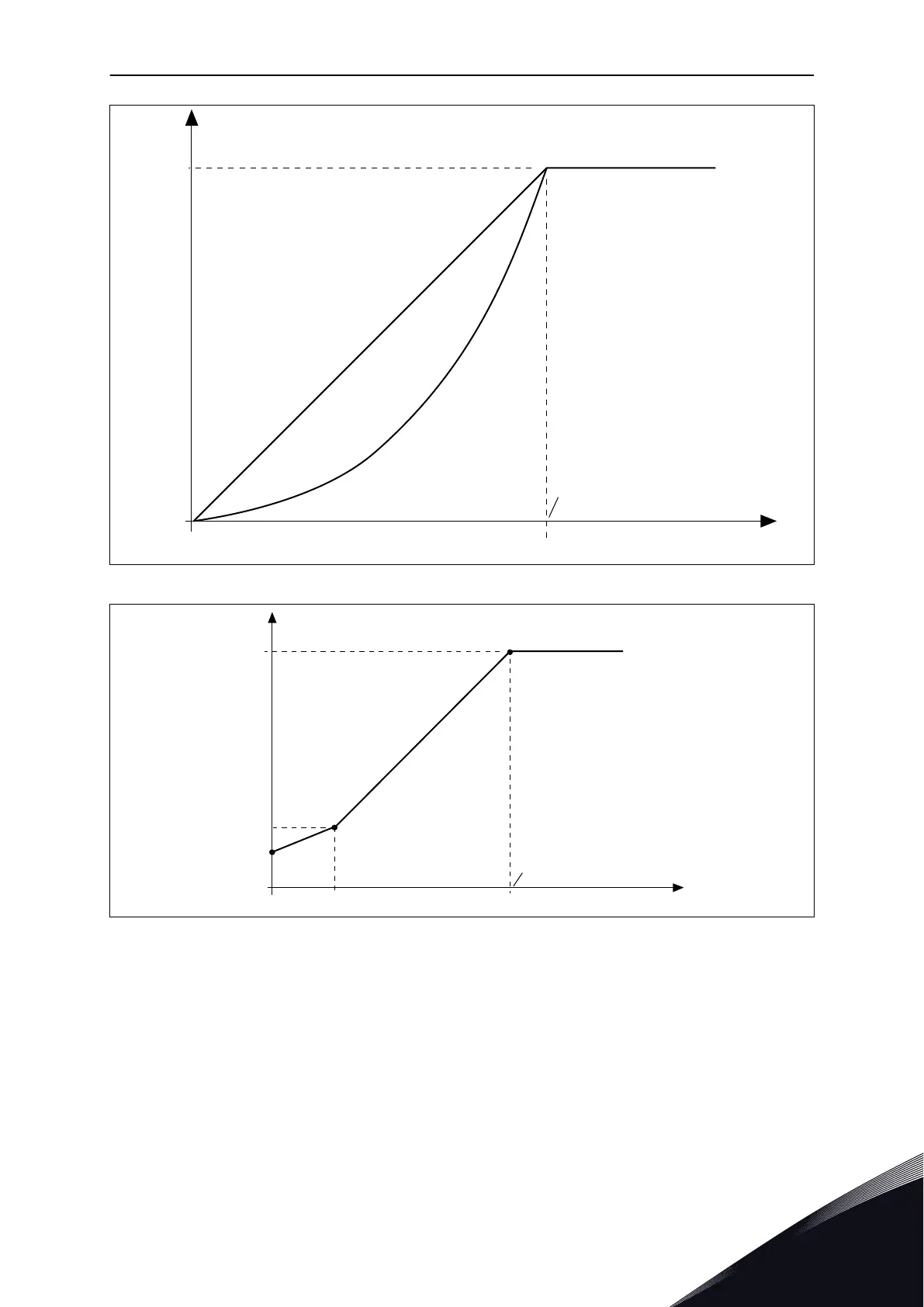

Fig. 24: Linear and squared change of the motor voltage
P1
P2
P3
ID604
ID605
ID606
Default: Nominal
voltage of the motor
Field weakening point
Default: Nominal
frequency of the motor
Un
ID603
ID602
U[V]
f[Hz]
Fig. 25: The programmable U/f curve
PARAMETER DESCRIPTIONS VACON · 237
24-HOUR SUPPORT +358 (0)201 212 575 · EMAIL: VACON@VACON.COM
8
