485 SCALING OF MOTORING TORQUE LIMIT 6 (2.2.6.5)
Table 148: Selections for parameter ID485
Selection
number
Selection name Description
0 Not used
1 AI1
2 AI2
3 AI3
4 AI4
5 Fieldbus (FBProcessDataIN2) See Chapter 8.7 Fieldbus control parameters (IDs 850 to 859)
100%
Par. ID349
Signal range0
Torque
limit
Free
analogue
input

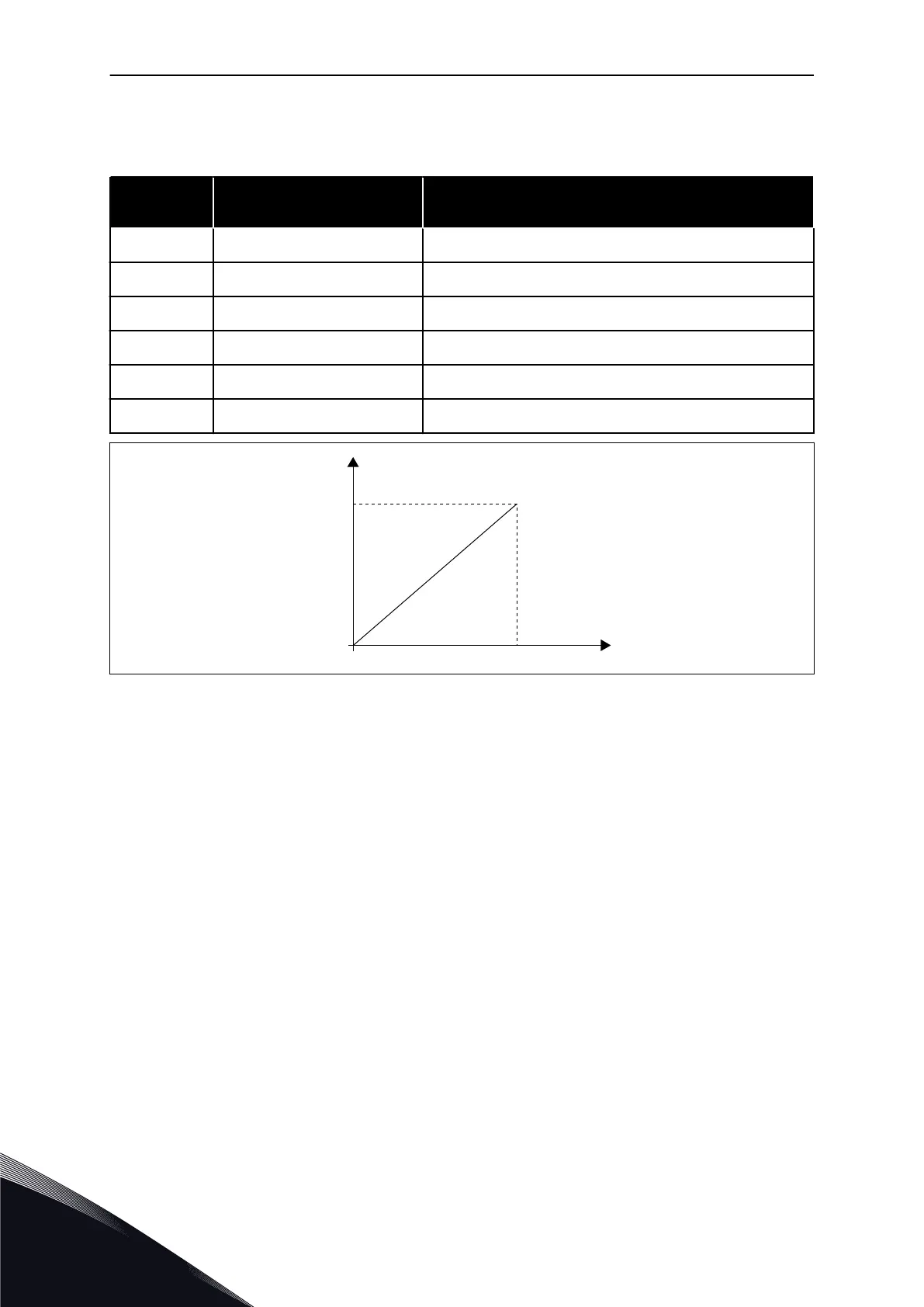

Fig. 64: Scaling of motoring torque limit
486 DIGITAL OUTPUT 1 SIGNAL SELECTION * 6 (2.3.1.1)
Connect the delayed DO1 signal to the digital output of your choice with this parameter. For
more information about the TTF programming method, see Chapter 8.9 "Terminal to
function" (TTF) programming principle. Digital output function can be inverted by Control
options, parameter ID1084.
487 DIGITAL OUTPUT 1 ON-DELAY (2.3.1.3)
488 DIGITAL OUTPUT 1 OFF-DELAY 6 (2.3.1.4)
With these parameters you can set on- and off-delays to digital outputs.
