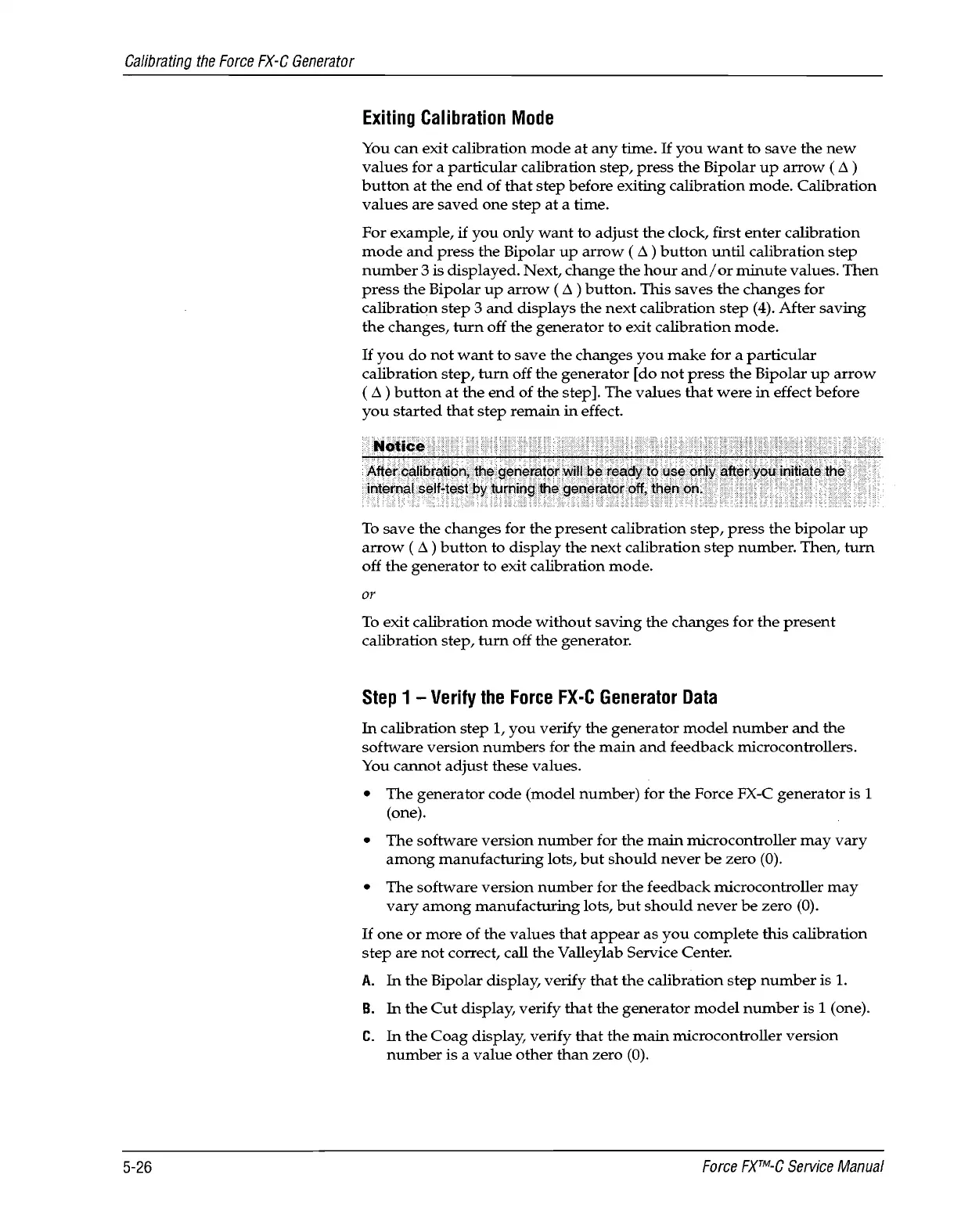

Calibrating
the
Force
FX-C
Generator
5-26
Exiting
Calibration
Mode
You
can
exit calibration
mode
at
any
time.
If
you
want
to
save
the
new
values
for a
particular
calibration
step,
press
the
Bipolar
up
arrow
(Ll)
button
at
the
end
of
that
step
before exiting
calibration
mode.
Calibration
values
are
saved
one
step
at
a time.
For
example,
if
you
only
want
to
adjust
the
clock, first
enter
calibration
mode
and
press
the
Bipolar
up
arrow
(
Ll
)
button
until
calibration
step
number
3 is
displayed.
Next,
change
the
hour
and/
or
minute
values.
Then
press
the
Bipolar
up
arrow
(
Ll
)
button.
This
saves
the
changes
for
calibration
step
3
and
displays
the
next
calibration
step
(4).
After
saving
the
changes,
turn
off
the
generator
to
exit
calibration
mode.
If
you
do
not
want
to
save
the
changes
you
make
for a
particular
calibration
step,
turn
off
the
generator
[do
not
press
the
Bipolar
up
arrow
(
Ll
)
button
at
the
end
of
the
step].
The
values
that
were
in
effect before
you
started
that
step
remain
in
effect.
To
save
the
changes
for
the
present
calibration
step,
press
the
bipolar
up
arrow
(
Ll
)
button
to
display
the
next
calibration
step
number.
Then,
tum
off
the
generator
to
exit calibration
mode.
or
To
exit calibration
mode
without
saving
the
changes
for
the
present
calibration
step,
turn
off
the
generator.
Step
1 -
Verify
the
Force
FX-C
Generator
Data
In
calibration
step
1,
you
verify
the
generator
model
number
and
the
software
version
numbers
for
the
main
and
feedback
microcontrollers.
You
cannot
adjust
these values.
•
The
generator
code
(model
number)
for
the
Force FX-C
generator
is 1
(one).
•
The
software
version
number
for
the
main
micro
controller
may
vary
among
manufacturing
lots,
but
should
never
be
zero
(0).
•
The
software
version
number
for
the
feedback
microcontroller
may
vary
among
manufacturing
lots,
but
should
never
be
zero
(0).
If
one
or
more
of
the
values
that
appear
as
you
complete
this
calibration
step
are
not
correct, call
the
Valleylab Service Center.
A.
In
the
Bipolar display, verify
that
the
calibration
step
number
is 1.
B.
In
the
Cut
display,
verify
that
the
generator
model
number
is 1 (one).
C.
In
the
Coag
display, verify
that
the
main
microcontroller
version
number
is a
value
other
than
zero
(0).
Force
FXTM-C
