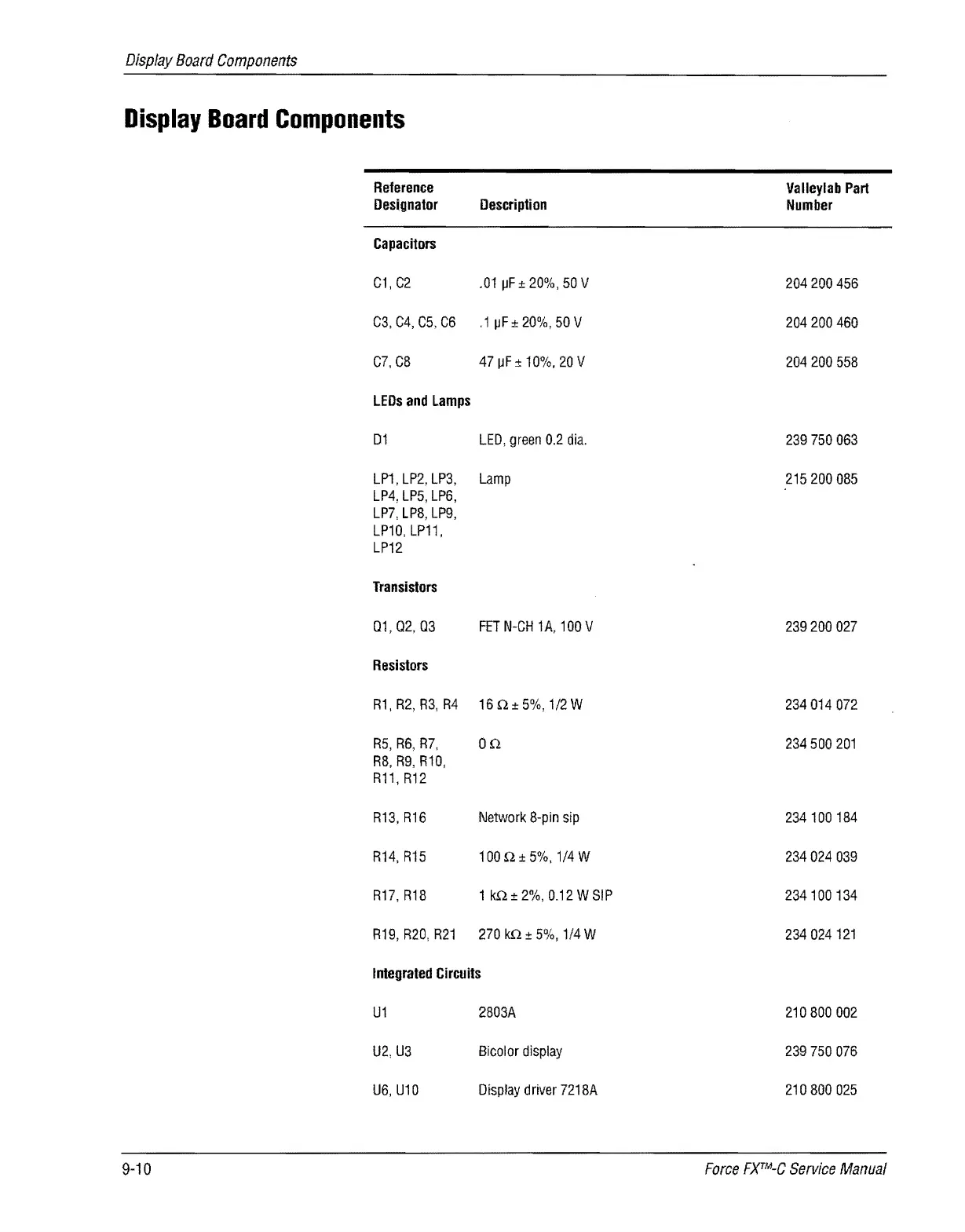

Display Board Components
Display Board Components
Reference
Valleylab Part
Desjgnator Description
Number
Capacitors
C1, C2
.011JF ± 20%, 50 V
204200456
C3,C4,C5,C6
.1IJF±20%,50V 204200460
C7,C8
471JF± 10%. 20V 204200558
LEOs and Lamps
01
LED, green 0.2 dia.
239750063
LP1, LP2, LP3,
Lamp
215200085
LP4, LP5, LP6,
LP7, LP8, LP9,
LP10, LP11,
LP12
Transistors
01,Q2,03 FET N-CH 1A, 100 V
239200027
Resistors
R1,R2, R3, R4 16n±5%,1/2W
234014072
R5, R6, R7, on
234500201
R8, R9, R10,
R11, R12
R13, R16
Network 8-pin sip
234100184
R14,R15 100n±5%,1/4W 234024039
R17,R18 1 kn ± 2%,0.12 W SIP 234100134
R19, R20, R21
270 kn ± 5%, 1/4 W
234024121
Integrated Circuits
U1 2803A 210800002
U2,U3 Bicolor display
239750076
U6, U10
Display driver 7218A 210800025
9-10
Force FXTM-C Service Manual
