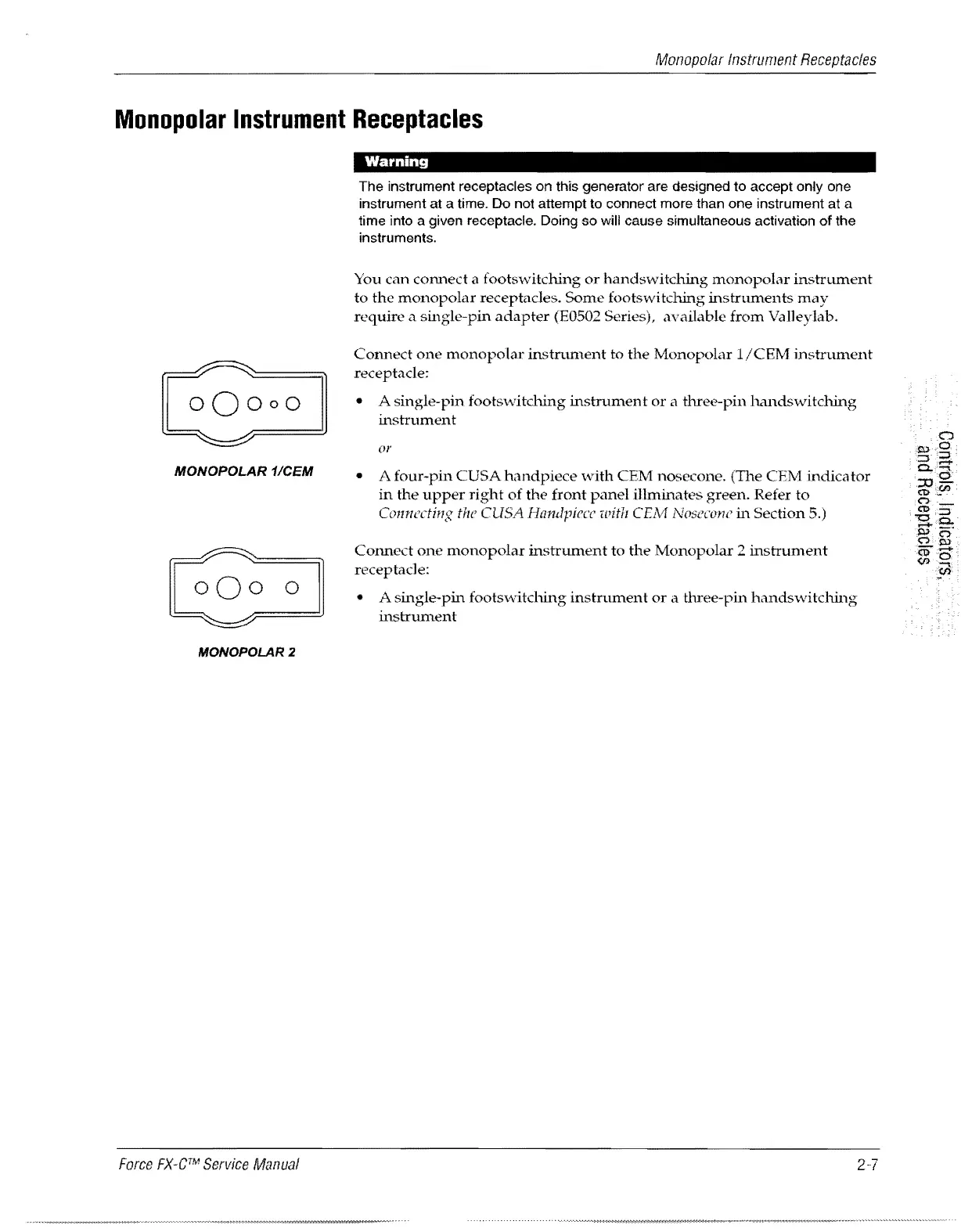

Monopolar Instrument Receptacles
Monopolar Instrument Receptacles
C§:ooo I
MONOPOLAR 11CEM
o
MONOPOLAR2
Force FX-CTM Service Manual
Warning
The instrument receptacles on this generator are designed to accept only one
instrument at a time. Do not attempt to connect more than one instrument at a
time into a given receptacle. Doing so will cause simultaneous activation
of the
instruments.
You can connect a footswitching or handswitching monopolar instrument
to the monopolar receptacles. Some footswitching instruments may
require a single-pin adapter (E0502 Series), available from Val1eylab.
Connect one monopolar instnlment to the Monopolar IjCEM instrument
receptacle:
• A single-pin footswitching instrument or a three-pin handswitching
instrument
or
• A four-pin CUSA handpiece with CEM nosecone. (The CEM indicator
in the upper right of the front panel iHminates green. Refer to
Connecting thr CUSA Handpircc with CE1Vf Noseconc in Section 5.)
Connect one monopolar instrument to the Monopolar 2 instrument
receptac1e:
• A single-pin foots,·vitching instrument or a three-pin handswitching
instrument
