Output Characteristics
Output Characteristics

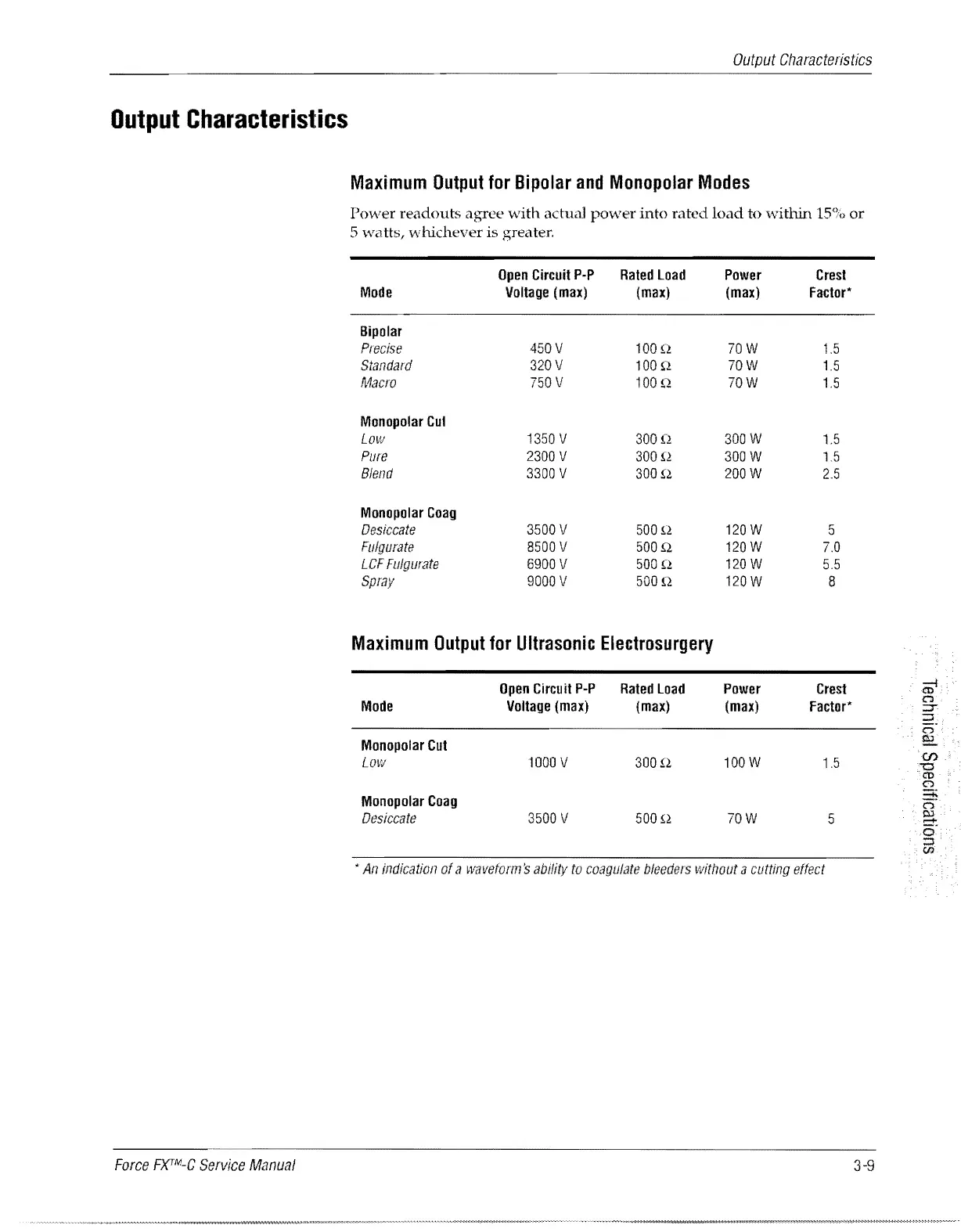

Maximum Output for Bipolar and Monopolar Modes
Power readouts agree with aetua] power into rated load to within 15''i" or
5 watts
,
whichever is greater.
Open Circuit p.p
Rated Load Power
Crest
Mode
Voltage (max) (max) (max)
Factor'
Bipolar
Precise 450V 100 f! 70W
1,5
Standard 320V
100 n
70W
1,5
Macro
750 V
100 n
70W
1.5
Monopolar Cui
Low 1350 V 300n 300W
1,5
Pure 2300 V 300n
300W 1.5
Blend
3300 V
300 !l
200W
2.5
Monopolar Coag
Desiccate 3500 V 500n 120 W
5
Fulgurate 8500 V 500n 120 W
7,0
LCF Fulgurate
6900 V 500 n 120 W
5,5
Spray
9000 V 500n 120W
8
Maximum Output for Ultrasonic Electrosurgery
Open Circuit Pop
Rated Load
Power Crest
a;i
Mode
Voltage (max) (max) (max)
Factor*
<':I
::;:r
::;l
C')
Monopolar Cut
tD
Low
1000 V 300!l 100 W
1,5
CJ)
"C
C'O
n
Monopolar Coag
::::;;.
6'
Desiccate 3500 V
500 ~~ 70W
5
OJ
!::!:
0
;::)
w
* An indication of a waveform's ability to coagulate bleeders without a cLitting effect
