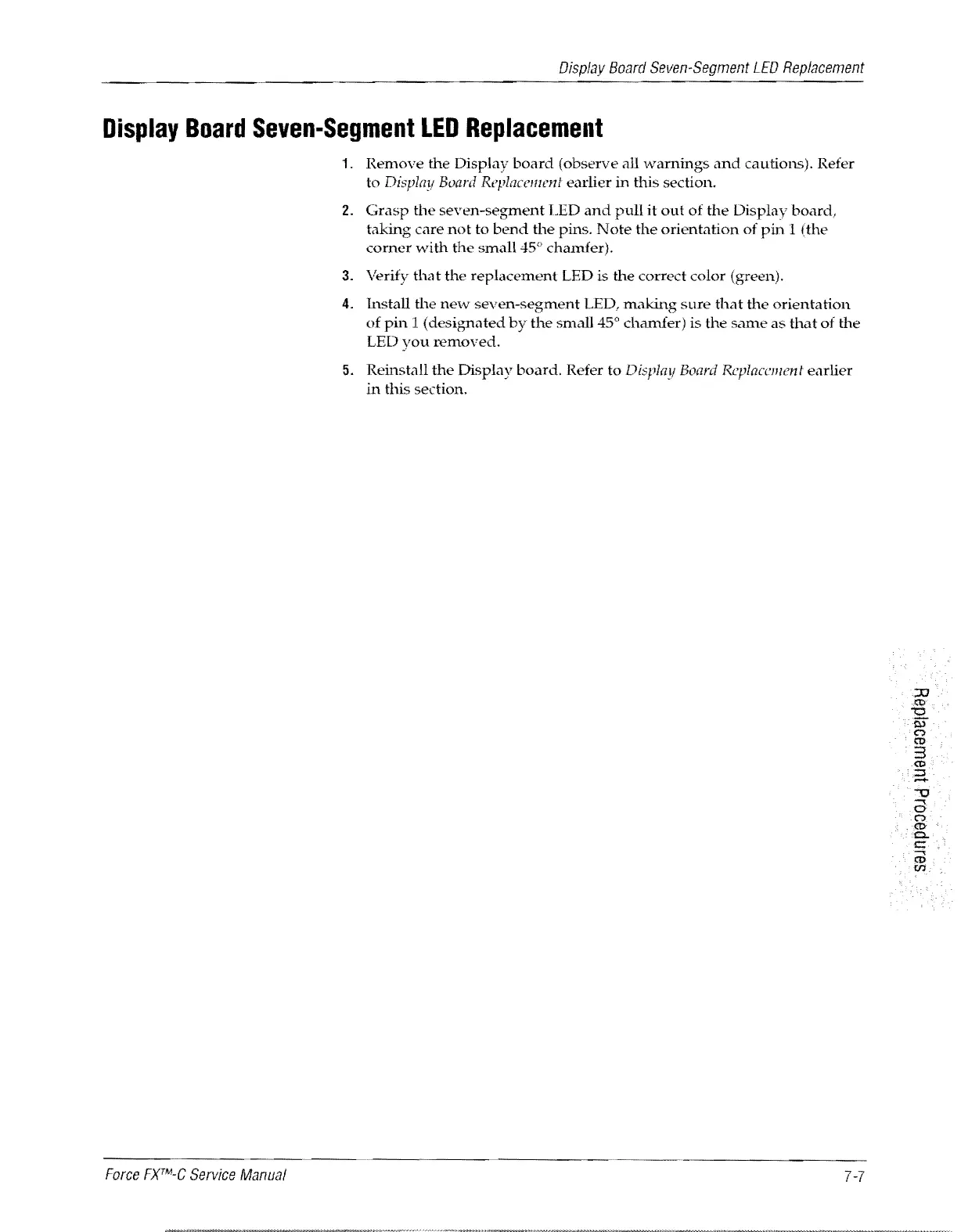

Display Board Seven-Segment LED Replacement
Display Board Seven-Segment LED Replacement
1. Remove the Display board (observe all warnings and cautions). Refer
to Display Board Replacement earlier in this section.
2. Grasp the seven-segment LED and pull it out of the Display board!
taking care not to bend the pins. Note the orientation of pin 1 (the
corner with the small 45" chamfer).
3. Verify
that the replacement LED is the correct color (green).
4. Install the new seven-segment LED, making sure that the orientation
of pin 1 (designated by the small 45
0
chamfer) is the same as that of the
LED you removed.
5. Reinstall the Display board. Refer to Display Board Replaccment earlier
in this section.
Force FXTM-C Service Manual 7-7
