Valleylab Force FX-C - Parts List

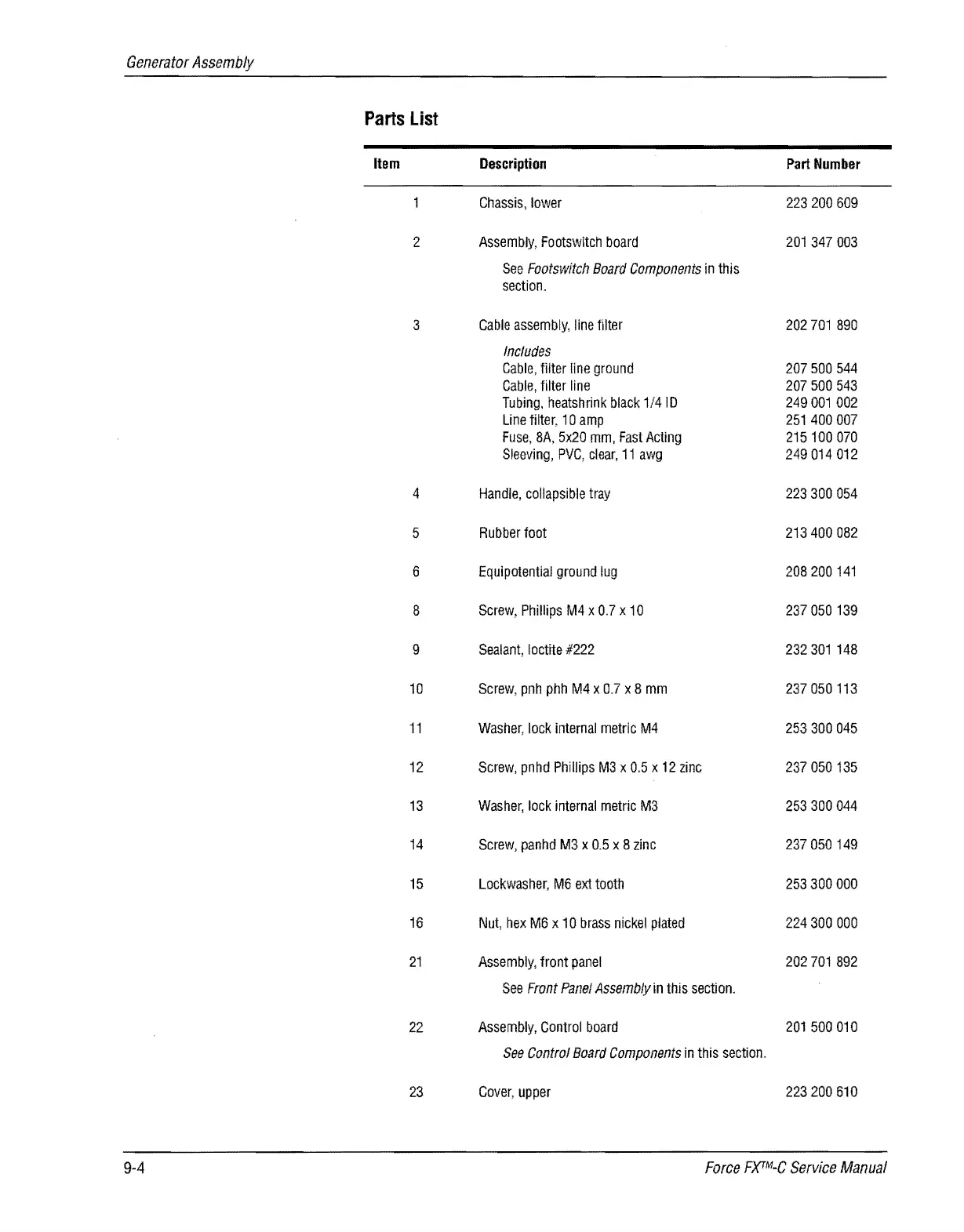

Generator Assembly
Parts List
Item Description
Part Number
Chassis, lower 223200609
2 Assembly, Footswitch board 201 347003
See Footswitch Board Components in this
section.
3 Cable assembly, line filter 202701 890
Includes
Cable, filter line ground 207500544
Cable, filter line 207500543
Tubing, heatshrink black 1/41D
249001002
Line filter, 10 amp 251400007
Fuse, 8A, 5x20 mm, Fast Acting 215100070
Sleeving, PVC, clear, 11 awg 249014012
4
Handle, collapsible tray
223300054
5
Rubber foot 213400082
6
Equipotential ground lug 208200141
8
Screw, Phillips M4 x 0.7 x 10 237050139
9
Sealant, loctite #222 232301148
10 Screw, pnh phh M4 x 0.7 x 8 mm 237050113
11 Washer, lock internal metric M4 253300045
12
Screw, pnhd Phillips M3 x 0.5 x 12 zinc
237050135
13 Washer, lock internal metric M3 253300044
14 Screw, panhd M3 x 0.5 x 8 zinc
237050149
15 Lockwasher, M6 ext tooth 253300000
16
Nut, hex M6 x 10 brass nickel plated 224300000
21 Assembly, front panel
202701892
See Front Panel Assembly in this section.
22
Assembly, Control board 201 500010
See Control Board Components in this section.
23 Cover, upper
223200610
9-4
Force F)(TM-C Service Manual
