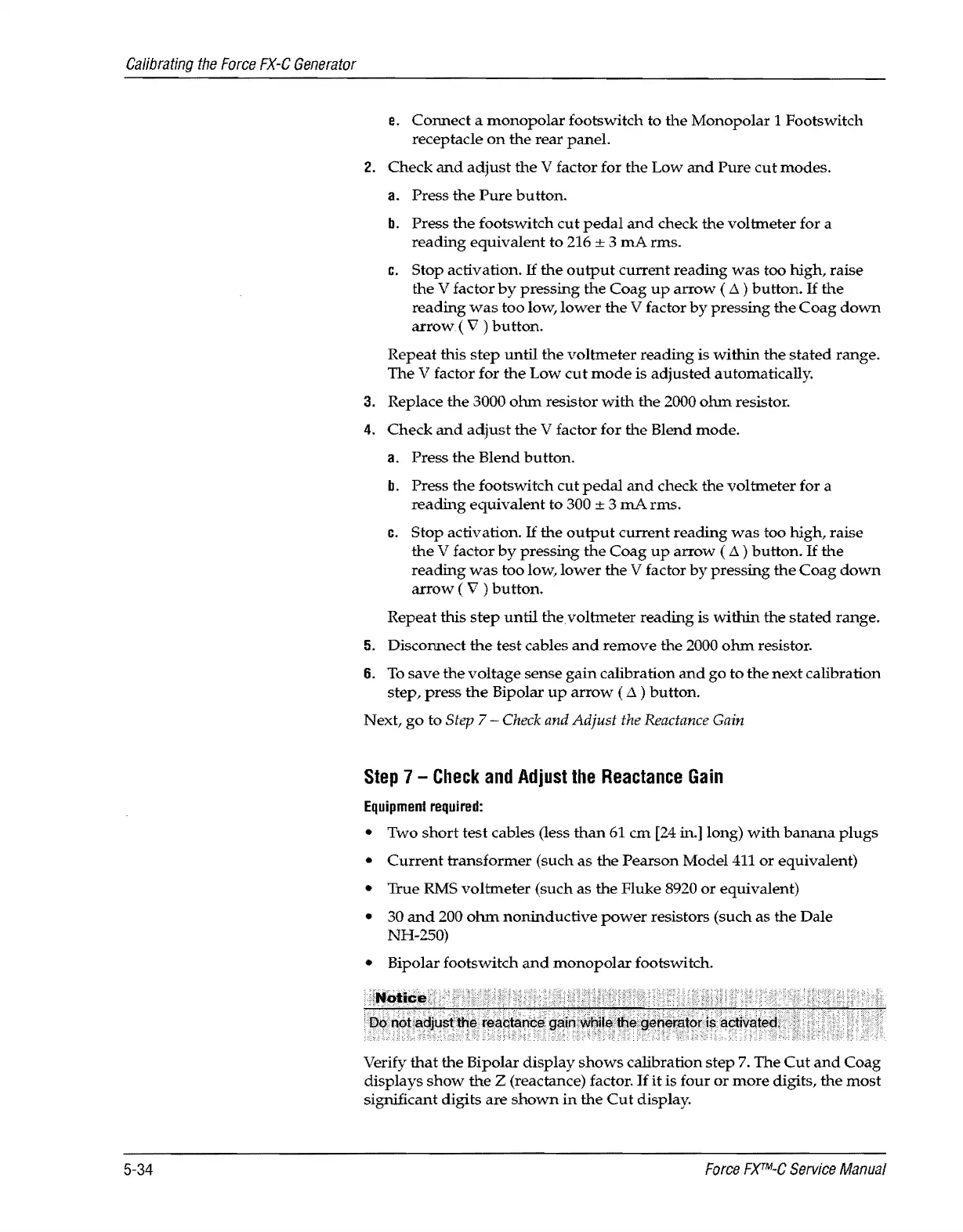

Calibrating
the
Force
FX-C
Generator
5-34
e.
Connect
a
monopolar
footswitch to
the
Monopolar
1 Footswitch
receptacle
on
the
rear
panel.
2.
Check
and
adjust
the
V factor for
the
Low
and
Pure
cut
modes.
3.
Press
the
Pure
button.
b. Press
the
footswitch
cut
pedal
and
check
the
voltmeter
for a
reading
equivalent
to
216 ± 3
rnA
rms.
c.
Stop activation.
If
the
output
current
reading
was
too high, raise
the
V factor
by
pressing
the
Coag
up
arrow
( Ll )
button.
If
the
reading
was
too
low,
lower
the
V factor
by
pressing
the
Coag
down
arrow
(
v)
button.
Repeat
this
step
until
the
voltmeter
reading
is
within
the
stated
range.
The
V factor for
the
Low
cut
mode
is
adjusted
automatically.
3. Replace
the
3000
ohm
resistor
with
the
2000
ohm
resistor.
4.
Check
and
adjust
the
V factor for
the
Blend
mode.
3.
Press
the
Blend
button.
b.
Press
the
footswitch
cut
pedal
and
check
the
voltmeter
for a
reading
equivalent
to
300 ± 3
rnA
rillS.
c.
Stop
activation.
If
the
output
current
reading
was
too high, raise
the
V factor
by
pressing
the
Coag
up
arrow
(
Ll
)
button.
If
the
reading
was
too
low,
lower
the
V factor
by
pressing
the
Coag
down
arrow
(v)
button.
Repeat
this
step
until
the
voltmeter
reading
is
within
the
stated
range.
5. Disconnect
the
test
cables
and
remove
the
2000
ohm
resistor.
6. To
save
the
voltage
sense
gain
calibration
and
go
to
the
next
calibration
step,
press
the
Bipolar
up
arrow
(Ll)
button.
Next,
go
to
Step 7 - Check and
Adjust
the Reactance Gain
Step
7 -
Check
and
Adjust
the
Reactance
Gain
Equipment
required:
Two
short
test
cables (less
than
61
cm
[24 in.] long)
with
banana
plugs
Current
transformer
(such
as
the
Pearson
Model
411
or
equivalent)
True RMS
voltmeter
(such
as
the
Fluke 8920
or
equivalent)
30
and
200
ohm
noninductive
power
resistors (such
as
the
Dale
NH-2S0)
Bipolar footswitch
and
monopolar
footswitch.
Verify
that
the
Bipolar
display
shows
calibration
step
7.
The
Cut
and
Coag
displays
show
the
Z (reactance) factor.
If
it
is
four
or
more
digits,
the
most
significant digits
are
shown
in
the
Cut
display.
Force
F)(TM-C
Service
Manual
