Left Rear Heat Sink and Component Replacement

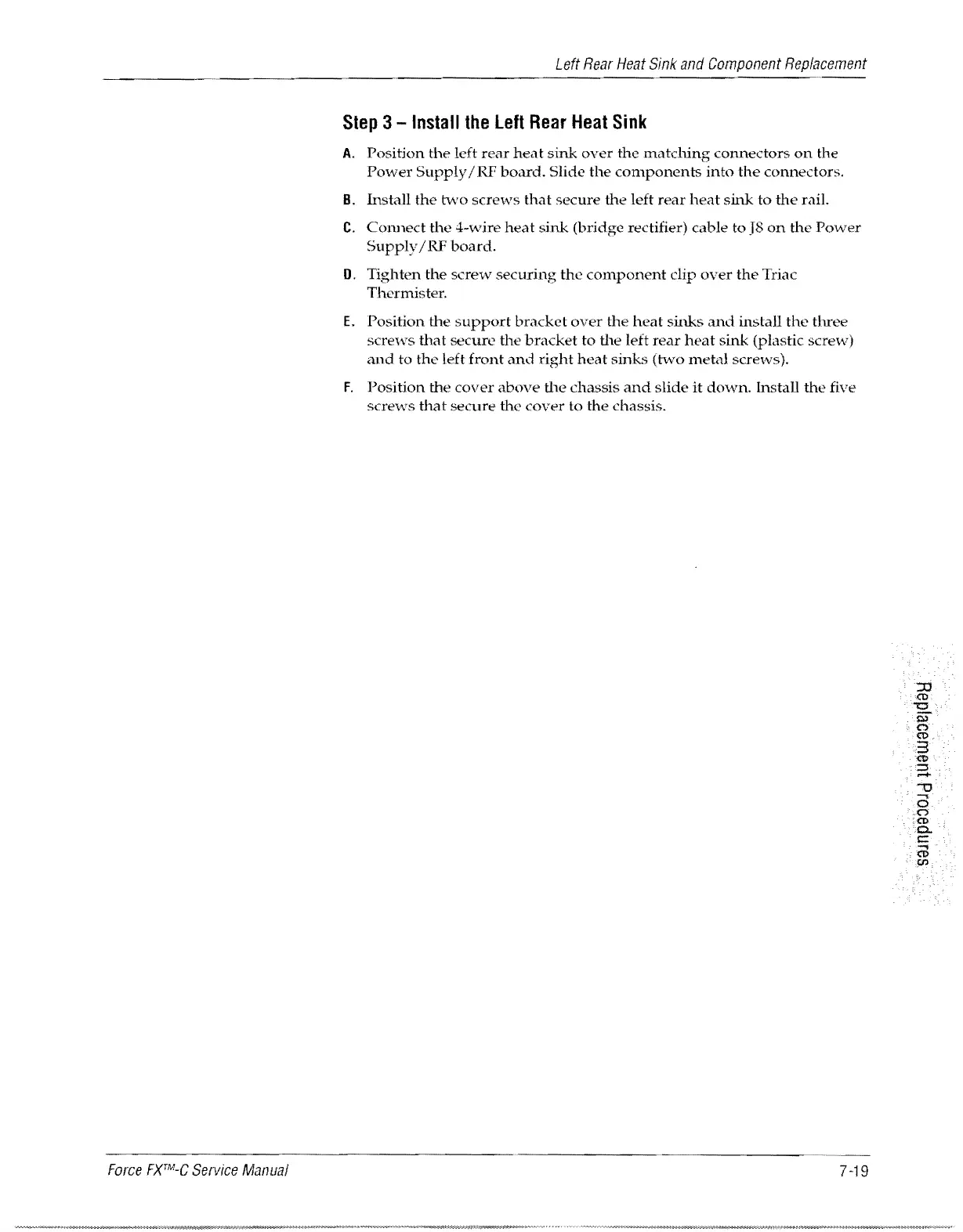

Step 3 - Install the left Rear Heat Sink
A. Position the left rear heat sink over the matching connectors on the
Power Supply /RF board. Slide the components into the connectors.
B. Install the two scre,A,'S that secure the left rear heat sink to the rail.
C. Connect the 4-wire heat sink (bridge rectifier) cable to J8 on the Power
Supply /RF board.
D. Tighten the screw securing the component clip over the Triac
Thermister.
E. Position the support bracket over the heat sinks and install the three
screws that secure the bracket to the left rear heat sink (plastic screw)
and to the left front and right heat sinks (two metal screws).
F. Position the cover above the chassis and slide it down. Install the five
screws that secure the cover to the chassis.
