Fuse Replacement
7-14

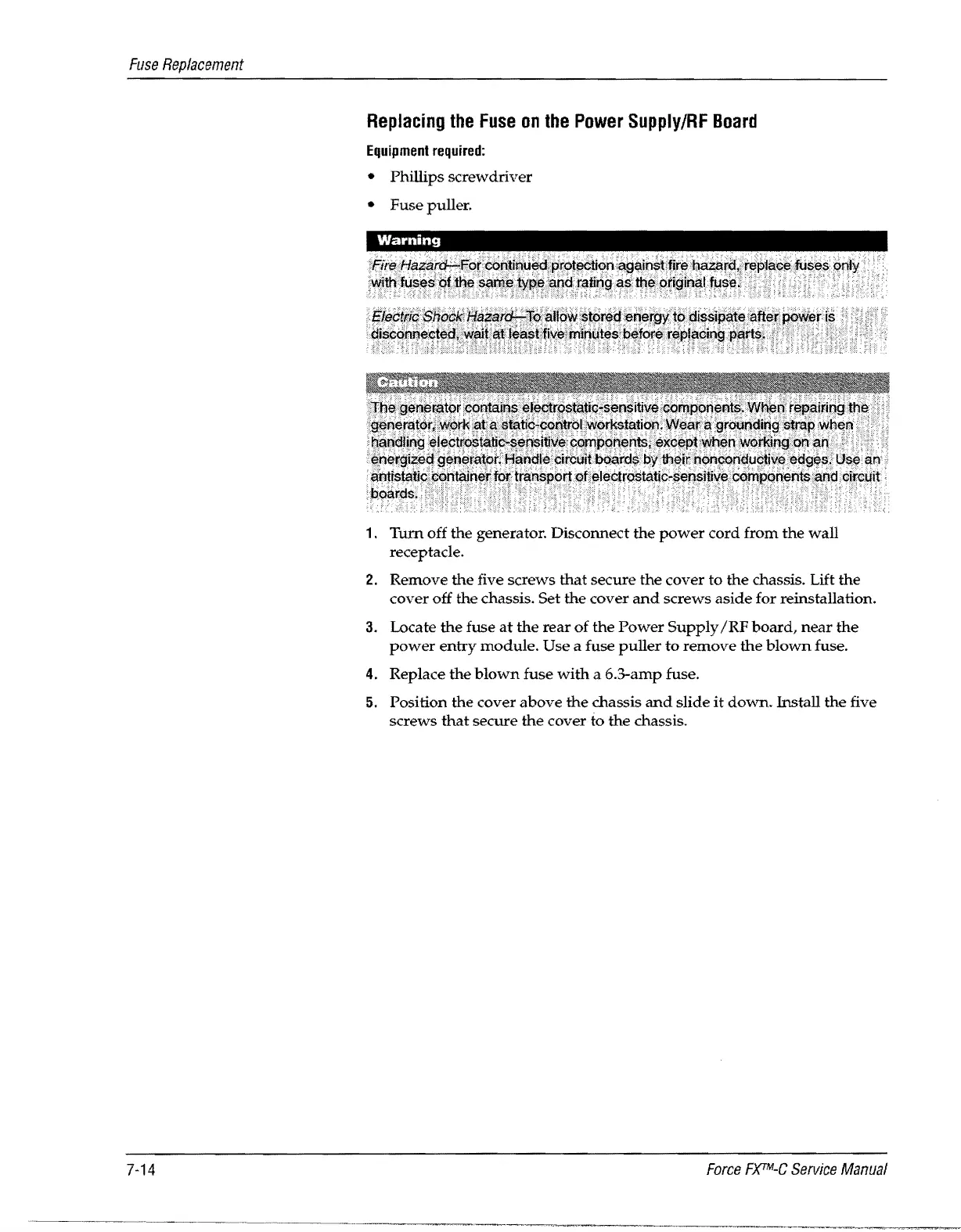

Replacing the Fuse on the Power Supply/RF Board
Equipment required:
• Phillips screwdriver
• Fuse puller.
1. Tum off the generator. Disconnect the power cord from the wall
receptacle.
2. Remove the five screws that secure the cover to the chassis. Lift the
cover off the chassis. Set the cover
and screws aside for reinstallation.
3. Locate the fuse at the rear of the Power Supply /RF board, near the
power entry module. Use a fuse puller to remove the blown fuse.
4. Replace the blown fuse with a 6.3-amp fuse.
5. Position the cover above the chassis and slide it down. Install the five
screws
that secure the cover to the chassis.
Force F)(TM-C Service Manual
