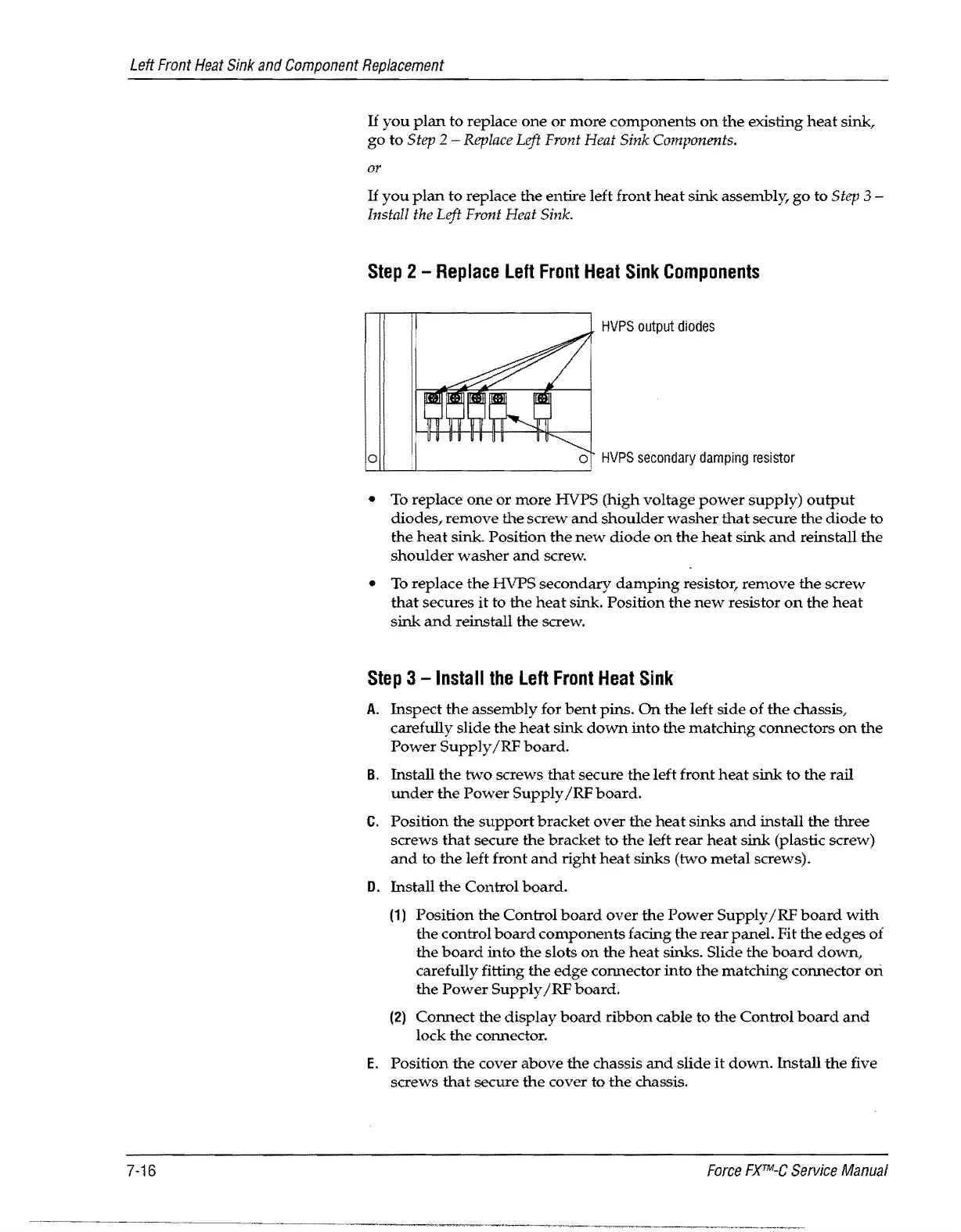

Left
Front
Heat
Sink
and
Component
Replacement
7-16
If
you
plan
to replace
one
or
more
components
on
the
existing
heat
sink,
go
to
Step 2 Replace Left Front Heat Sink Components.
or
If
you
plan
to replace
the
entire left front
heat
sink
assembly,
go
to Step 3 -
Install the Left Front Heat Sink.
Step
2 -
Replace
left
Front
Heat
Sink
Components
HVPS
output
diodes
o
o
HVPS
secondary
damping
resistor
~~~----------------~
To
replace
one
or
more
HVPS (high voltage
power
supply)
output
diodes,
remove
the
screw
and
shoulder
washer
that
secure the
diode
to
the
heat
sink. Position
the
new
diode
on
the
heat
sink
and
reinstall
the
shoulder
washer
and
screw.
To
replace
the
HVPS
secondary
damping
resistor, remove
the
screw
that
secures
it
to
the
heat
sink. Position
the
new
resistor
on
the
heat
sink
and
reinstall the screw.
Step
3 -
Install
the
left
Front
Heat
Sink
A.
Inspect
the
assembly for
bent
pins.
On
the
left
side
of
the
chassis,
carefully
slide
the
heat
sink
down
into
the
matching
connectors
on
the
Power
Supply
/RF
board.
B.
Install
the
two
screws
that
secure
the
left front
heat
sink
to
the
rail
under
the
Power
Supply
/RF
board.
C.
Position the
support
bracket
over
the
heat
sinks
and
install the three
screws
that
secure
the
bracket
to
the
left
rear
heat
sink (plastic screw)
and
to
the
left front
and
right
heat
sinks
(two
metal screws).
D.
Install
the
Control
board.
(1)
Position the Control
board
over
the
Power
Supply
/RF
board
with
the
control
board
components
facing
the
rear
paneL Fit
the
edges
of
the
board
into
the
slots
on
the
heat
sinks. Slide the
board
down,
carefully fitting
the
edge
connector
into
the
matching
connector
on
the
Power
Supply
/RF
board.
(2)
Connect
the
display
board
ribbon
cable to
the
Control
board
and
lock
the
connector.
E.
Position the cover
above
the
chassis
and
slide
it
down.
Install the five
screws
that
secure
the
cover to
the
chassis.
Force
F)(TM-C
Service
Manual
