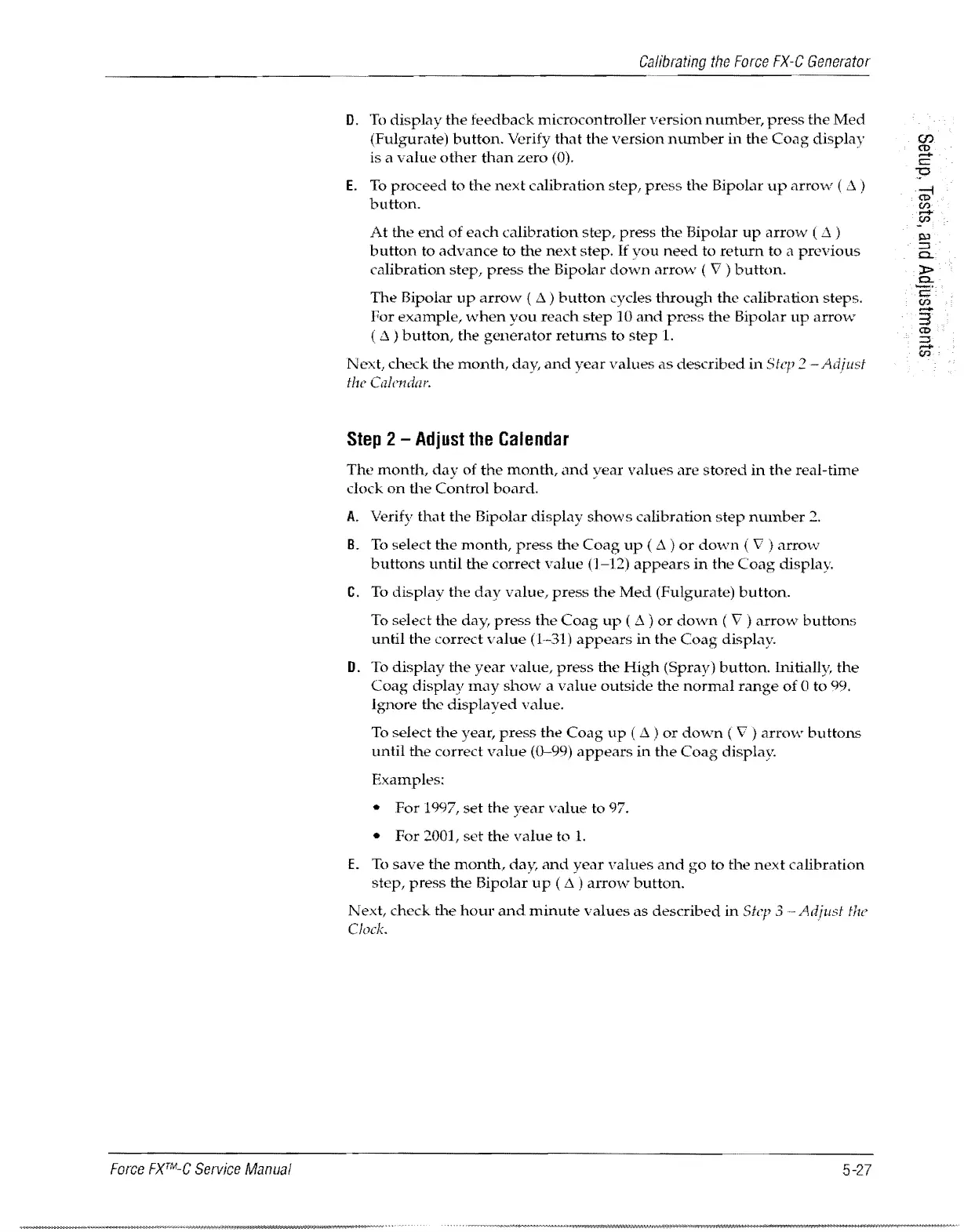

Calibrating
the
Force
FX-C
Generator
--------------~-----------------------------------
D.
To
display
the
feedback
microcontroller
version
number,
press
the
Med
(Fulgurate)
button.
Verify
that
the
version
number
in
the
Coag
display
is a
value
other
than
zero
(0).
E.
To
proceed
to
the
next
calibration
step!
press
the
Bipolar
up
arro,\! (
j.
)
button.
At
the
end
of
each
calibration
step,
press
the
Bipolar
up
arrow
(
j.)
button
to
advance
to
the
next
step.
If
you
need
to
return
to
a
previous
calibration
step,
press
the
Bipolar
down
arr0'·v ( V )
button.
The
Bipolar
up
arrow
(
j.
)
button
cycles
through
the
calibration
steps.
l~or
example,
when
you
reach
step
10
and
press
the
Bipolar
up
arrmv
(
j.
)
button,
the
generator
returns
to
step
1.
Next,
check
the
month,
day,
and
year
values
as
described
in
Step
2-
Adjust
the Calendar.
Step
2 -
Adjust
the
Calendar
The
month,
day
of
the
month,
and
year
values
are
stored
in
the
real-time
clock
on
the
Control
board.
A.
Verify
that
the
Bipolar
display
shows
calibration
step
number
2.
B.
To select
the
month,
press
the
Coag
up
(
j.
)
or
down
( V )
arro,\'
buttons
until
the
correct
value
(1-12)
appears
in
the
Coag
display.
C.
To
display
the
day
value!
press
the
Med
(Fulgurate)
button.
To
select
the
day,
press
the
Coag
up
(
j.
)
or
down
( v )
arrow
buttons
until
the
correct
value
(t-31)
appears
in
the
Coag
display.
D.
To
display
the
year
value,
press
the
High
(Spray)
button.
Initially,
the
Coag
display
may
show
a
value
outside
the
normal
range
of
0
to
99.
Ignore
the
displayed
value.
To
select
the
year,
press
the
Coag
up
(j.)
or
down
(V)
ar1'0'''
..
·
buttons
until
the
correct
value
(0-99)
appears
in
the
Coag
display·.
Examplt's:
•
For
1997,
set
the
year
value
to
97.
•
For
2001,
set
the
value
to
1.
E.
To
save
the
month,
day,
and
year
values
and
go
to
the
next
calibration
step,
press
the
Bipolar
up
(j.
)
arrow
button.
Next,
check
the
hour
and
minute
values
as
described
in
Step 3
Adjust
the
Clock.
Force
FXTM-C
Service
Manual
5-27
