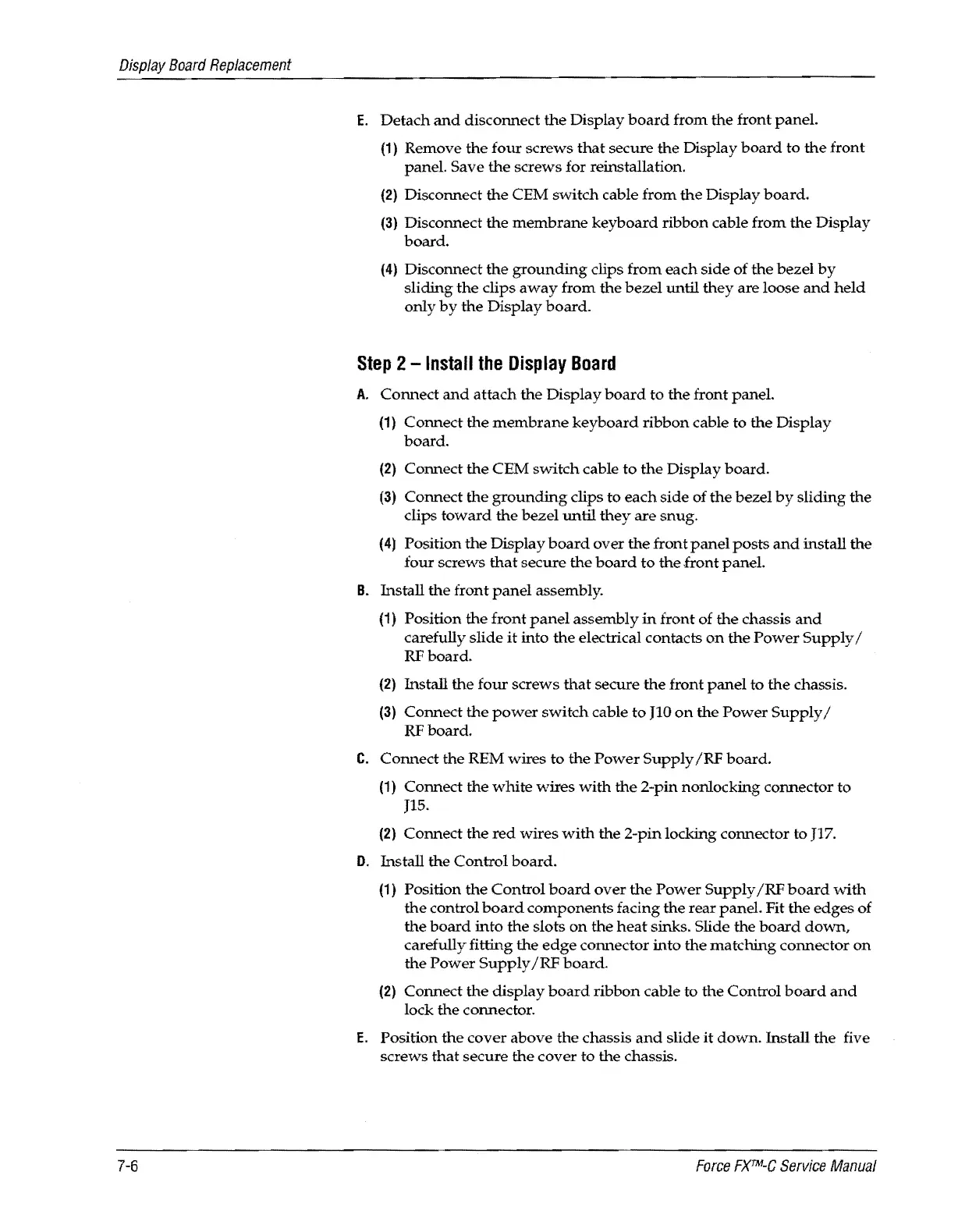

Display
Board
Replacement
7-6
E.
Detach
and
disconnect
the
Display
board
from
the
front panel.
(1)
Remove
the
four screws
that
secure
the
Display
board
to
the
front
panel.
Save
the
screws for reinstallation.
(2) Disconnect
the
CEM
switch
cable
from
the
Display
board.
(3) Disconnect
the
membrane
keyboard
ribbon cable from
the
Display
board.
(4)
Disconnect
the
grounding
clips from
each
side
of
the
bezel
by
sliding
the
clips
away
from
the
bezel
until
they
are
loose
and
held
only
by
the
Display
board.
Step
2 -
Install
the
Display
Board
A.
Connect
and
attach
the
Display
board
to
the
front panel.
(1)
Connect
the
membrane
keyboard
ribbon
cable to
the
Display
board.
(2)
Connect
the
CEM
switch
cable
to
the
Display
board.
(3)
Connect
the
grounding
clips to
each
side
of
the
bezel
by
sliding
the
clips
toward
the
bezel
until
they
are
snug.
(4)
Position
the
Display
board
over
the
front
panel
posts
and
install
the
four
screws
that
secure
the
board
to
the
front
panel.
B.
Install
the
front
panel
assembly.
(1)
Position
the
front
panel
assembly
in
front of
the
chassis
and
carefully
slide
it
into
the
electrical contacts
on
the
Power
Supply
/
RFboard.
(2)
Install
the
four
screws
that
secure
the
front
panel
to
the
chassis.
(3)
Connect
the
power
switch
cable
to
JlO
on
the
Power
Supply
/
RFboard.
C.
Connect
the
REM wires to
the
Power
Supply
/RF
board.
(1)
Connect
the
white
wires
with
the
2-pin nonlocking connector to
JIS.
(2)
Connect
the
red
wires
with
the
2-pin locking connector to J17.
D.
Install the Control
board.
(1)
Position
the
Control
board
over
the
Power
Supply
/RF
board
with
the
control
board
components
facing
the
rear panel. Fit
the
edges
of
the
board
into
the
slots
on
the
heat
sinks. Slide the
board
down,
carefully fitting
the
edge
connector
into
the
matching
connector
on
the
Power
Supply
/RF
board.
(2)
Connect
the
display
board
ribbon
cable to
the
Control
board
and
lock
the
connector.
E.
Position
the
cover
above
the
chassis
and
slide
it
down.
Install
the
five
screws
that
secure
the
cover
to
the chassis.
