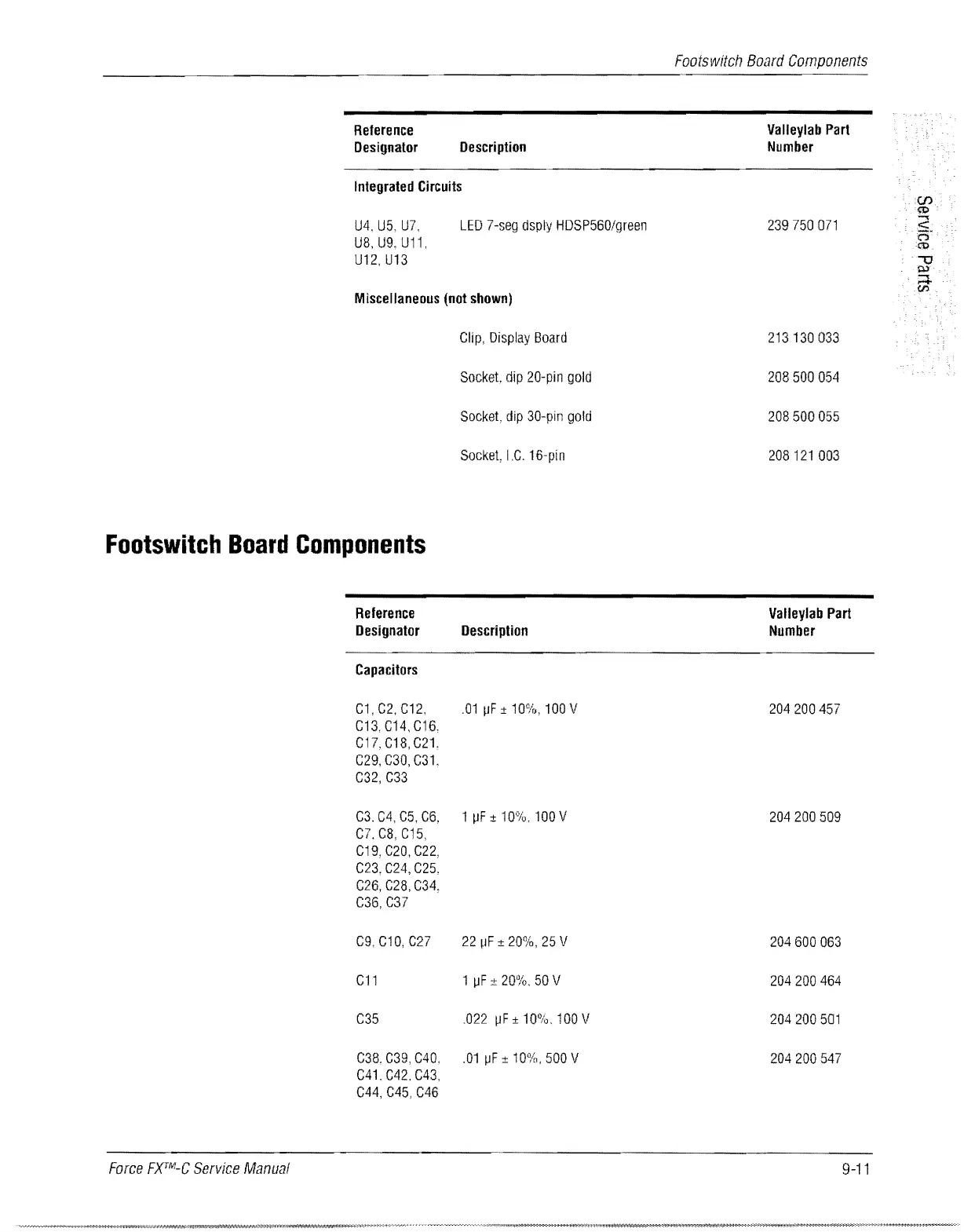

Valleylab Force FX-C - Footswitch Board Components

Reference
Designator Description
Integrated Circuits
U4. U5, U7,
U8, U9, U11,
U12,U13
LED 7-seg dsply HDSP560/green
Miscellaneous (not shown)
Clip, Display Board
Socket, dip 20-pin gold
Socket, dip 30-pin gold
Socket, I.C. 16-pin
Footswitch Board Components
Reference
Designator Description
Capacitors
C1, C2, C12,
.01 I1F ± 10%, 100 V
C13, C14, C16,
C17,
C18, C21,
C29, C30,
C31,
C32,C33
C3. C4, C5, C6,
1I1F±10%,100V
C7. C8, C15,
C19, C20,
C22,
C23, C24, C25,
C26, C28,
C34.
C36,C37
C9,C10, C27 22 pF ± 20%, 25 V
C11 1 IJF ± 20%, 50 V
C35
,022 IJF± 10%, 100V
C38, C39, C40. ,01 IJF ± 10%, 500 V
C41, C42. C43,
C44,C45, C46
Force FX
1K
C Service Manual
Footswitch Board Components
Valleylab Part
Number
239750 071
213130033
208500054
208500055
208121 003
Valleylab Part
Number
204200457
204200509
204600063
204200464
204200501
204200547
9-11
