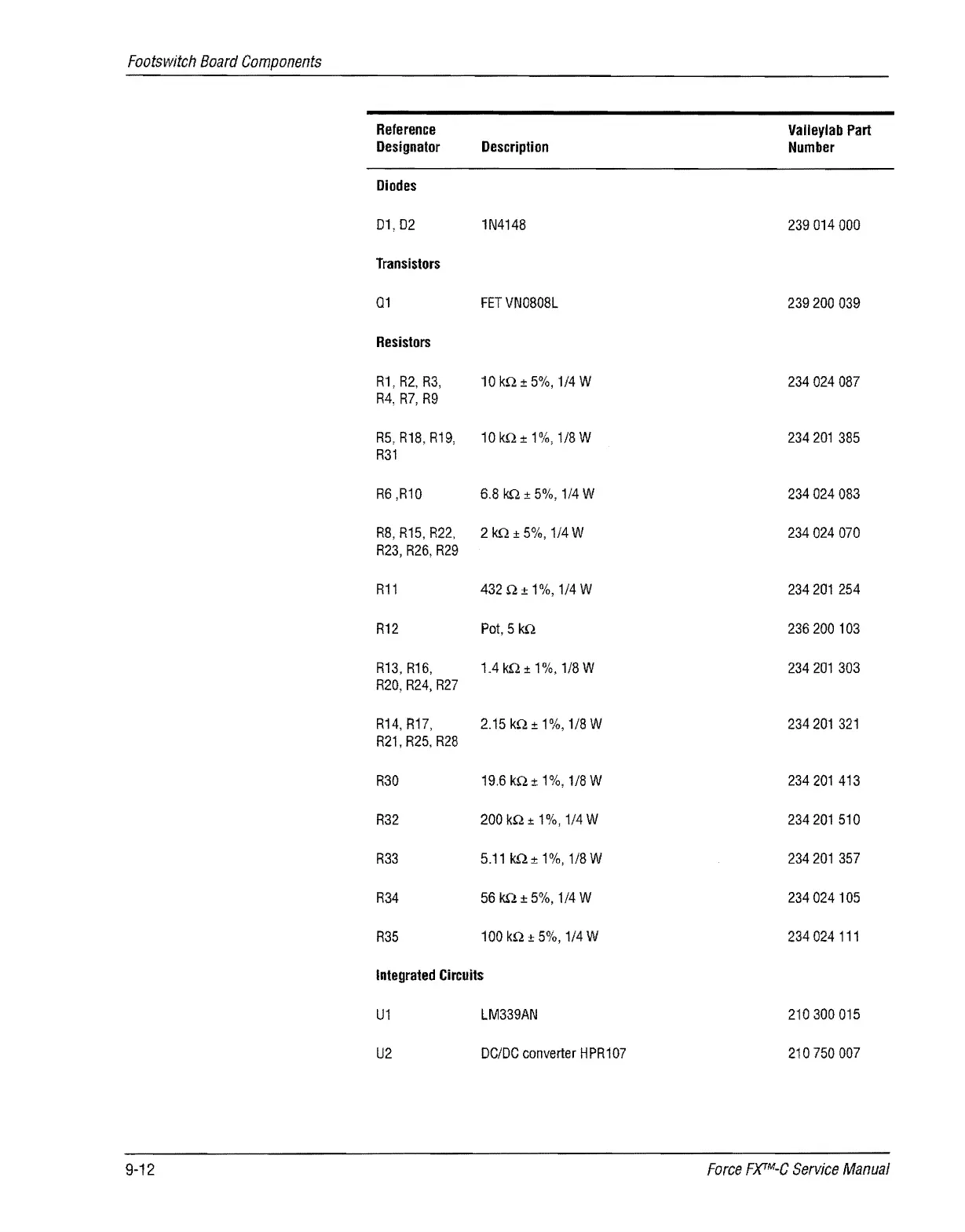

Footswitch Board Components
Reference
Valleylab Part
Designator Description
Number
Diodes
01,02 1N4148
239014000
Transistors
Q1
FETVN0808L
239200039
Resistors
R1, R2, R3,
10kn±5%,1/4W 234024087
R4, R7,R9
R5, R18, R19, 10kn±1%,1/8W
234201 385
R31
R6,R10 6.8 kn ± 5%, 1/4 W 234024083
R8, R15, R22, 2 kn ± 5%, 1/4 W
234024070
R23, R26,R29
R11 432 n ± 1%, 1/4 W 234201 254
R12 Pot, 5 kn 236200103
R13, R16, 1.4kn±1%,1/8W 234201303
R20,R24,R27
R14,R17,
2.15 kn ± 1%, 1/8 W
234201321
R21,R25,R28
R30
19.6 kn ± 1%, 1/8 W 234201 413
R32
200 kn ± 1%, 1/4 W 234201510
R33
5.11 kn± 1%, 1/8W 234201357
R34
56 kn ± 5%, 1/4 W 234024105
R35
100 kn ± 5%,1/4 W 234024111
Integrated Circuits
U1
LM339AN 210300015
U2 DC/DC converter HPR107
210750007
9-12
Force F)(TM-C Service Manual
