Force
FXTM-G
Service
Manual
Inspecting
the
Generator

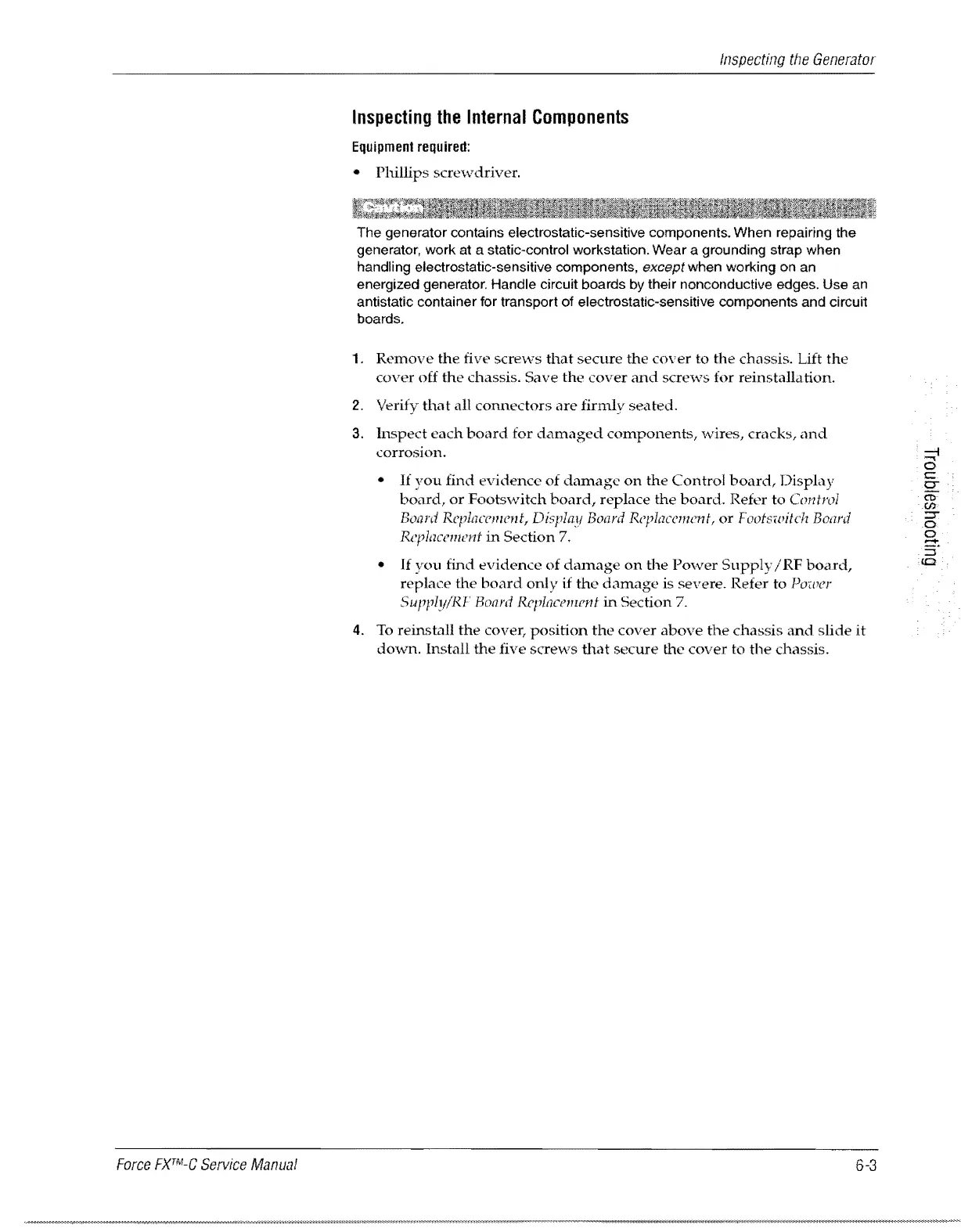

Inspecting
the
Internal
Components
Equipment
required:
•
Phillips
scre'wdriver.
The generator contains electrostatic-sensitive components. When repairing the
generator, work at a static-control workstation. Wear a grounding strap when
handling electrostatic-sensitive components, except when working on an
energized generator. Handle circuit boards by their nonconductive edges.
Use an
antistatic container for transport of electrostatic-sensitive components and circuit
boards.
1.
Remove
the
fivt:'
screws
that
secure
the
cover
to
the
chassis.
Lift
the
cover
off
the
chassis.
Save
the
cover
and
screws
for reinstallation.
2.
Verify
that
all
connectors
are
firmly
seated.
3. h1spect
each
board
for
damaged
components,
wires,
cracks,
and
corrosion.
•
If
you
find
evidence
of
damage
on
the
Control
board,
Display
board,
or
Footswitch
board,
replace
the
board.
Refer
to
Control
Board
Repiace}1u'llt,
Display
Board
Replacement,
or
Footswitch
Board
Replacement
in
Section
7.
•
If
you
find
evidence
of
damage
on
the
Pmver
Supply
/RF
board,
replace
the
board
only
if
the
damage
is severe. Refer to POlPcr
Supply/RF
Board Replacement
in
Section
7.
4.
To
reinstall
the
cover,
position
the
cover
above
the
chassis
and
slide
it
down.
Install
the
five
screws
that
secure
the
cover
to
the
chassis.
6-3
