Low
Voltage
Power
Supply
Replacement
7-24

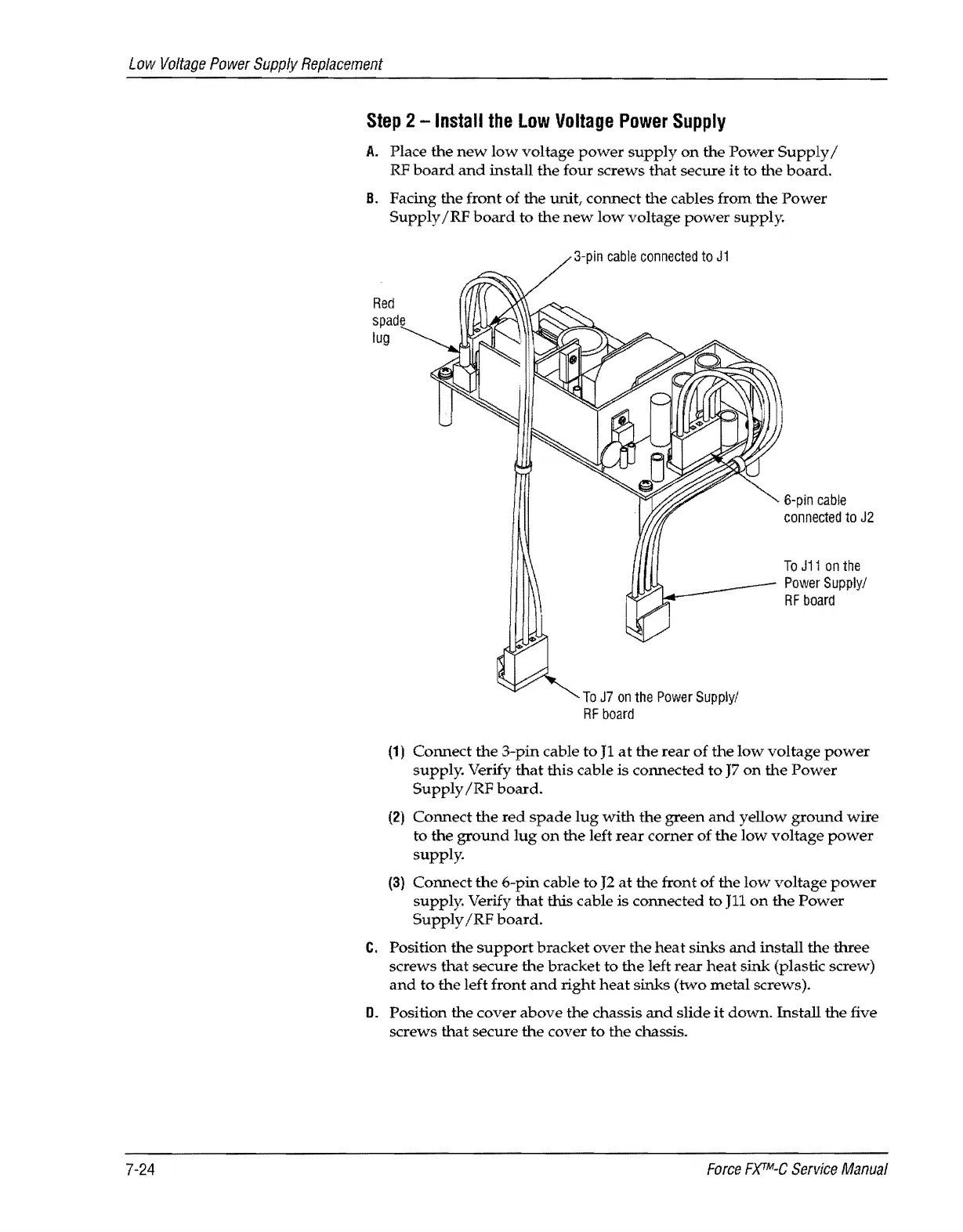

Step
2 -
Install
the
low
Voltage
Power
Supply
A.
Place
the
new
low
voltage
power
supply
on
the
Power
Supply
/
RF
board
and
install
the
four screws
that
secure
it
to the
board.
B.
Facing
the
front
of
the unit,
connect
the
cables from
the
Power
Supply
/RF
board
to
the
new
low
voltage
power
supply.
Red
spade
lug
3-pin
cable
connected
to
J1
To
J7
on
the
Power
Supply/
RF
board
6-pin
cable
connected
to
J2
To
J11
on
the
Power
Supplyl
RF
board
(1)
Connect
the
3-pin
cable
to
Jl
at
the
rear
of
the
low
voltage
power
supply. Verify
that
this cable is connected
to
}7
on
the
Power
Supply
/RF
board.
(2)
Connect
the
red
spade
lug
with
the
green
and
yellow
ground
wire
to
the
ground
lug
on
the
left
rear
corner
of
the
low
voltage
power
supply.
(3)
Connect
the
6-pin
cable to
}2
at
the
front
of
the
low
voltage
power
supply. Verify
that
this
cable is connected to
}11
on
the
Power
Supply
/RF
board.
C.
Position
the
support
bracket
over
the
heat
sinks
and
install the
three
screws
that
secure
the
bracket to
the
left
rear
heat
sink
(plastic screw)
and
to
the
left front
and
right
heat
sinks
(two
metal
screws).
D.
Position the
cover
above
the
chassis
and
slide
it
down.
Install
the
five
screws
that
secure
the
cover
to
the
chassis.
