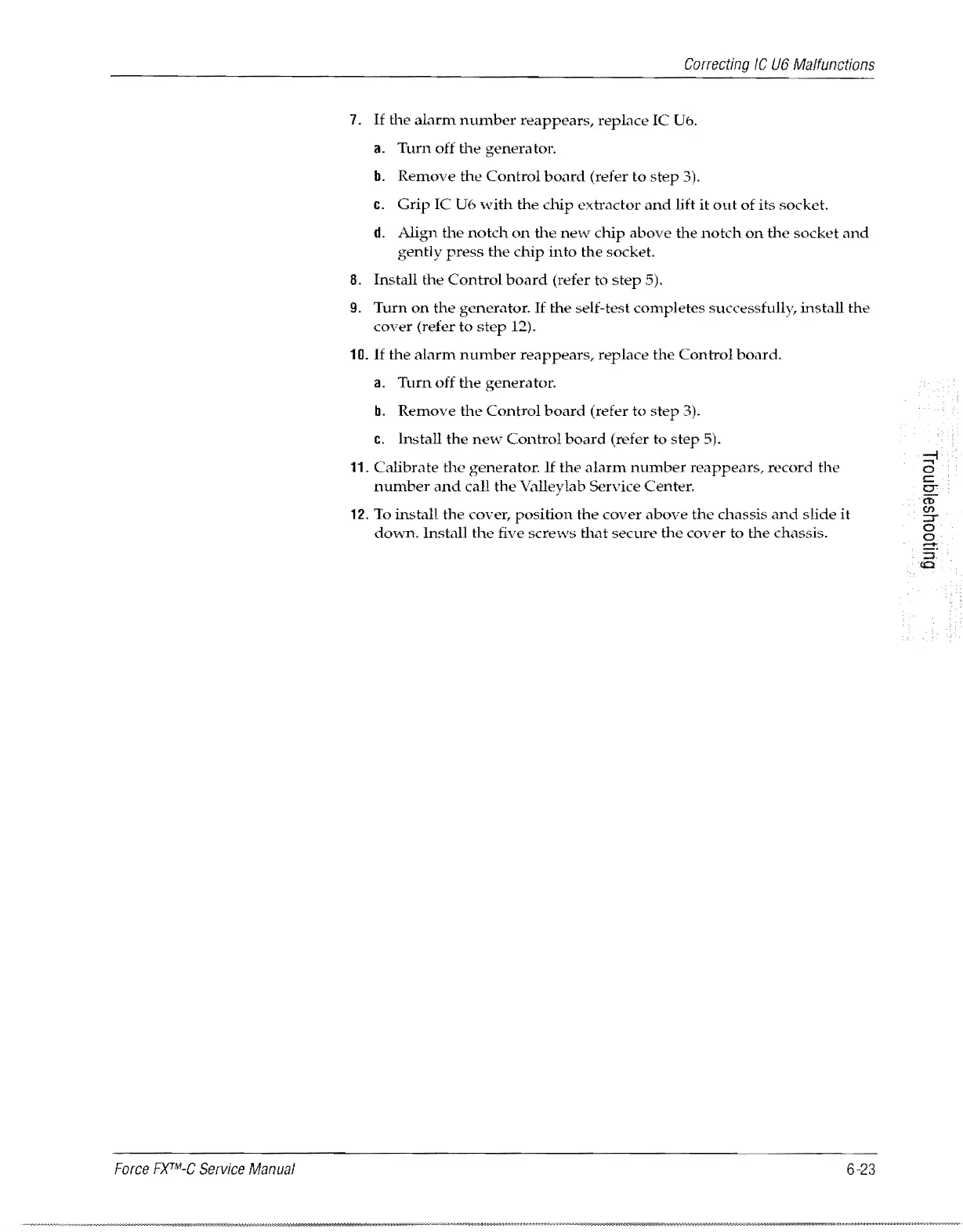

Force
F)(TM-C
Service
Manual
-r,ry,,,',,r'''IC
U6
Malfunctions
7.
If
the
alarm
number
reappears,
replace
IC
Ub.
a.
Turn
off
the
generator.
b.
Remove
the
Control
board
(refer
to
step
3).
c.
Grip
IC U6
with
the
chip
exh'actor
and
lift
it
out
of
its
socket.
d.
Align
the
notch
on
the
new
chip
above
the
notch
on
the
socket
and
gently
press
the
chip
into
the
socket.
8. Install
the
Control
board
(refer to
step
5).
9.
Turn
on
the
generator.
If
the
self-test
completes
successfully,
install
the
cover
(refer
to
step
12).
10.
If
the
alarm
number
reappears,
replace
the
Control
board.
a.
Turn
off
the
generator.
h.
Remove
the
Control
board
(refer
to
step
3).
c.
Install
the
new
Control
board
(refer to
step
5).
11.
Calibrate
the
generator.
If
the
alarm
number
reappears,
record
the
number
and
call
the
Valleylab Service Center.
12. To
install
the
cover,
position
the
cover
above
the
chassis
and
slide
it
dm·vn.
Install
the
five
screws
that
secure
the
cover
to
the
chassis.
6-23
