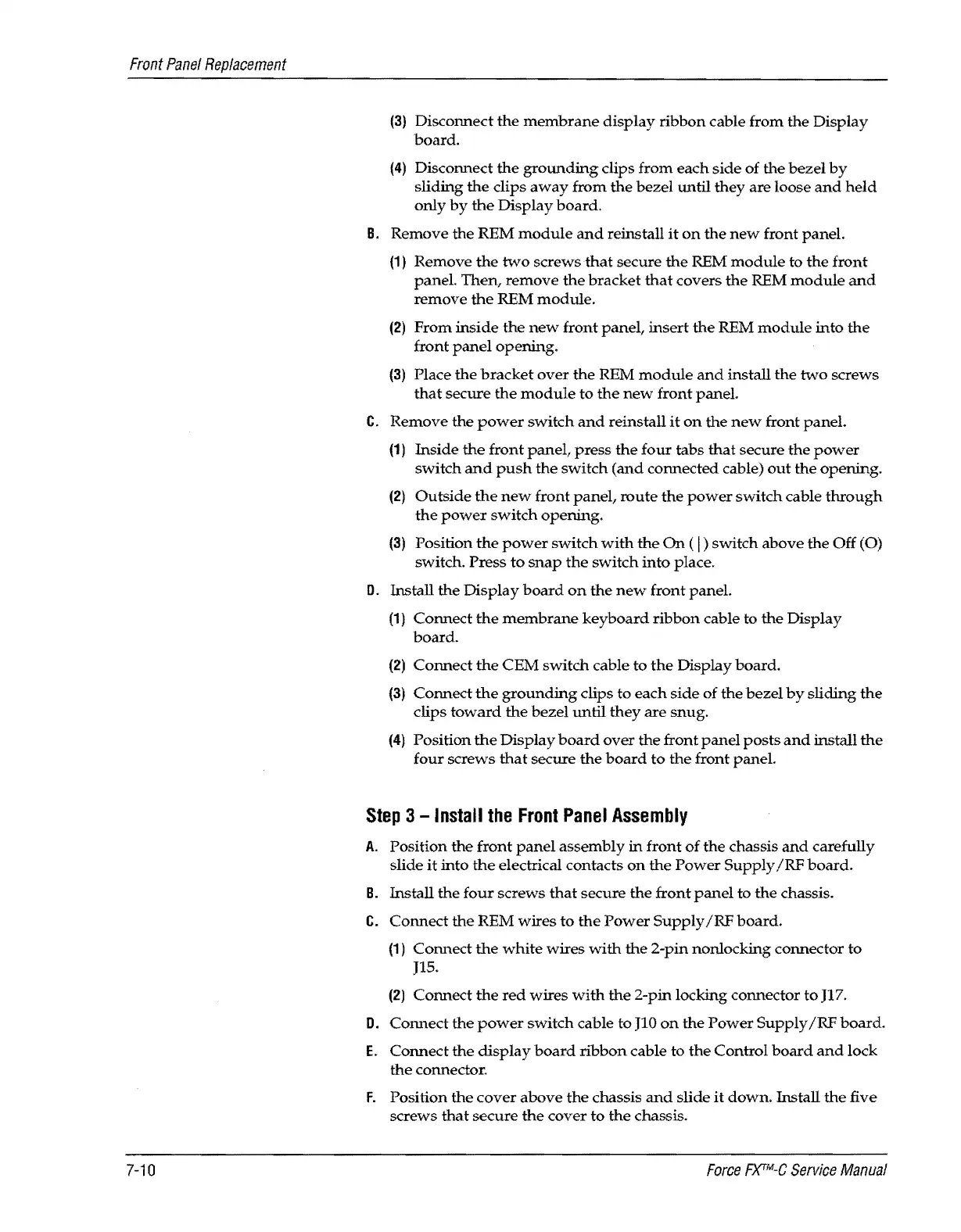

Front
Panel
Replacement
7-10
(3) Disconnect
the
membrane
display
ribbon cable from the Display
board.
(4)
Disconnect
the
grounding
clips
from
each
side
of
the bezel
by
sliding
the
clips
away
from
the
bezel
until
they
are
loose
and
held
only
by
the
Display
board.
B.
Remove the REM
module
and
reinstall
it
on
the
new
front panel.
(1)
Remove
the
two
screws
that
secure
the
REM
module
to
the
front
panel. Then,
remove
the
bracket
that
covers
the
REM
module
and
remove
the
REM
module.
(2)
From
inside
the
new
front panel,
insert
the
REM
module
into
the
front
panel
opening.
(3)
Place
the
bracket
over
the
REM
module
and
install
the
two
screws
that
secure
the
module
to
the
new
front panel.
C.
Remove
the
power
switch
and
reinstall
it
on
the
new
front panel.
(1)
Inside
the
front
panel,
press
the
four
tabs
that
secure
the
power
switch
and
push
the
switch
(and
connected cable)
out
the
opening.
(2)
Outside
the
new
front
panel,
route
the
power
switch
cable
through
the
power
switch
opening.
(3)
Position
the
power
switch
with
the
On
(
I)
switch above the Off
(0)
switch. Press
to
snap
the
switch
into
place.
D.
Install
the
Display
board
on
the
new
front paneL
(1)
Connect
the
membrane
keyboard
ribbon
cable to
the
Display
board.
(2)
Connect
the
CEM
switch
cable to
the
Display
board.
(3)
Connect
the
grounding
clips to
each
side
of
the
bezel
by
sliding
the
clips
toward
the
bezel
until
they
are
snug.
(4)
Position
the
Display
board
over
the
front
panel
posts
and
install
the
four
screws
that
secure
the
board
to
the
front paneL
Step
3 -
Install
the
Front
Panel
Assembly
A.
Position
the
front
panel
assembly
in
front
of
the
chassis
and
carefully
slide
it
into
the
electrical contacts
on
the
Power
Supply
/RF
board.
B.
Install
the
four
screws
that
secure
the
front
panel
to
the
chassis.
C.
Connect
the
REM
wires
to
the
Power
Supply
/RF
board.
(1)
Connect
the
white
wires
with
the
2-pin nonlocking connector
to
J15.
(2)
Connect
the
red
wires
with
the
2-pin locking connector
to
J17.
D.
Connect
the
power
switch cable to
JI0
on
the
Power
Supply
/RF
board.
E.
Connect
the
display
board
ribbon
cable to
the
Control
board
and
lock
the
connector.
F.
Position
the
cover
above
the
chassis
and
slide
it
down.
Install
the
five
screws
that
secure
the
cover
to
the
chassis.
Force
F)(TM-C
Service
Manual
