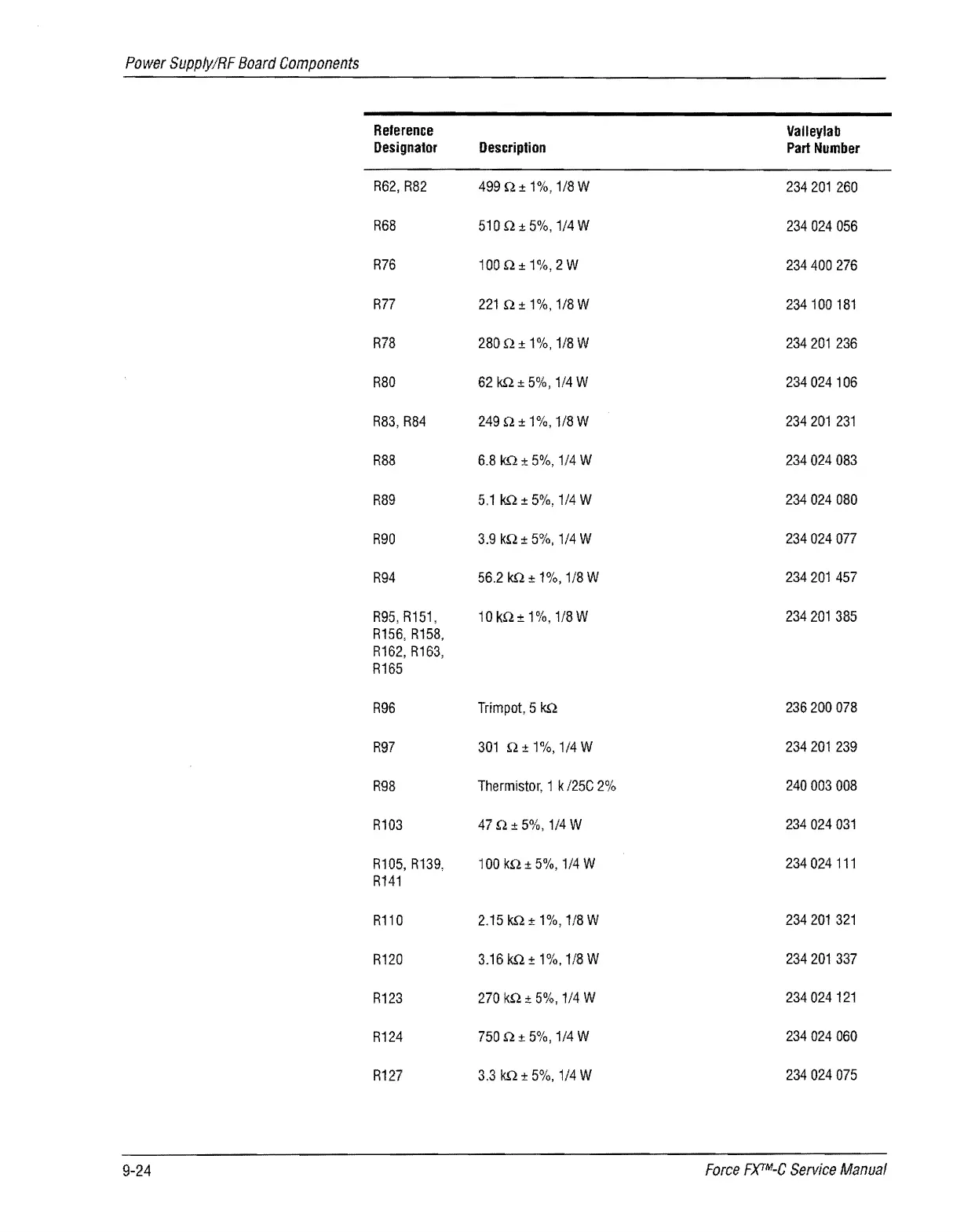

Power SupplylRF Board Components
Reference
Vatleylab
Designator Description
Part Number
R62,RS2
499Q± 1%, 1/SW
234201260
R6S
510 Q ± 5%, 1/4 W
234024056
R76 100Q±1%,2W
234400276
R77
221 Q± 1%, 1/SW
234100181
R78 280Q±1%,1/8W
234201236
RSO 62 kQ ± 5%, 1/4 W 234024106
RS3,R84
249Q±1%,1/8W
234201231
R8S 6.8 kQ ± 5%, 1/4 W 234024083
R89 5.1 kQ ± 5%, 1/4 W
234024080
R90
3.9 kQ ± 5%, 1/4 W 234024077
R94
56.2 kQ ± 1%, 1/S W 234201457
R95, R151, 10 kQ ± 1 %, 1/8 W
234201385
R156, R158,
R162, R163,
R165
R96
Trimpot, 5 kQ 236200078
R97
301 Q ± 1%, 1/4 W 234201239
R98
Thermistor, 1 k 125C 2% 240003 008
R103
47 Q ± 5%, 1/4 W
234024031
R105, R139, 100 kQ ± 5%, 1/4 W
234024111
R141
R110
2.15 kQ ± 1%, 1/8 W
234201321
R120
3.16 kQ ± 1%,1/8 W
234201337
R123
270 kQ ± 5
%
,114 W
234024121
R124
750Q±5%,1/4W
234024060
R127
3.3 kQ ± 5%, 1/4 W
234024075
