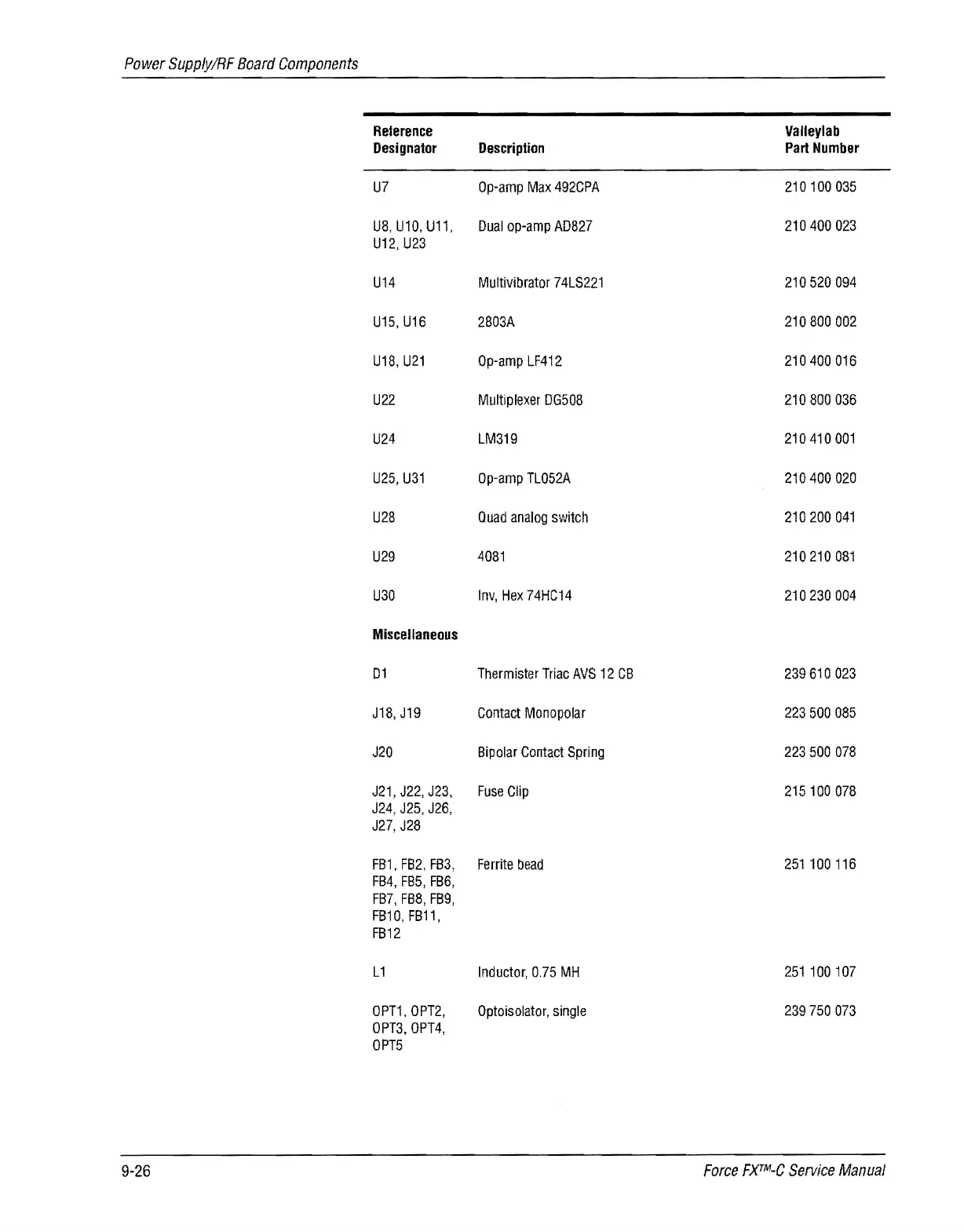

Valleylab Force FX-C - Page 210

Power Supp/y/RF Board Components
Relerence
Valleylab
Designator Description Part Number
U7
Op-amp Max 492CPA
210100035
U8, U10, U11, Dual op-amp AD827
210400023
U12,U23
U14 Multivibrator 74LS221
210520094
U15, U16
2803A
210800002
U18, U21 Op-amp LF412 210400016
U22
Multiplexer DG508 210800036
U24 LM319 210410001
U25, U31
Op-amp TL052A
210400020
U28 Quad analog switch 210200041
U29 4081 210210081
U30
Inv, Hex 74HC14
210230004
Miscellaneous
D1 Thermister Triac AVS 12 CB
239610023
J18,J19 Contact Monopolar 223500085
J20
Bipolar Contact Spring 223500078
J21, J22, J23, Fuse Clip 215 100 078
J24, J25, J26,
J27,J28
FB1, FB2, FB3, Fe rrite bead 251100116
FB4, FB5, FB6,
FB7, FB8, FB9,
FB10,FB11,
FB12
L1 Inductor, 0.75 MH 251100107
OPT1,OPT2,
Optoisolator, single
239750073
OPT3,OPT4,
OPT5
9-26
Force F)(TM-C Service Manual
