Rev AB Maintaining the Power Supply 7-3
Videojet 8520 Operator Manual
Maintaining the Power Supply
This section contains the information on how to replace the fuse.
Replacing the Mains Fuse
The fuses are the only user-serviceable parts in the power supply unit.
To replace the mains fuse, proceed as follows:
1 Using a small screw driver, press and turn the fuse holder anti-
clockwise, and remove the fuse holder (see Figure 7-1).
2 Replace the 5 A fuse if it is defective (see Figure 7-2).
3 Refit the fuse holder in its original position.

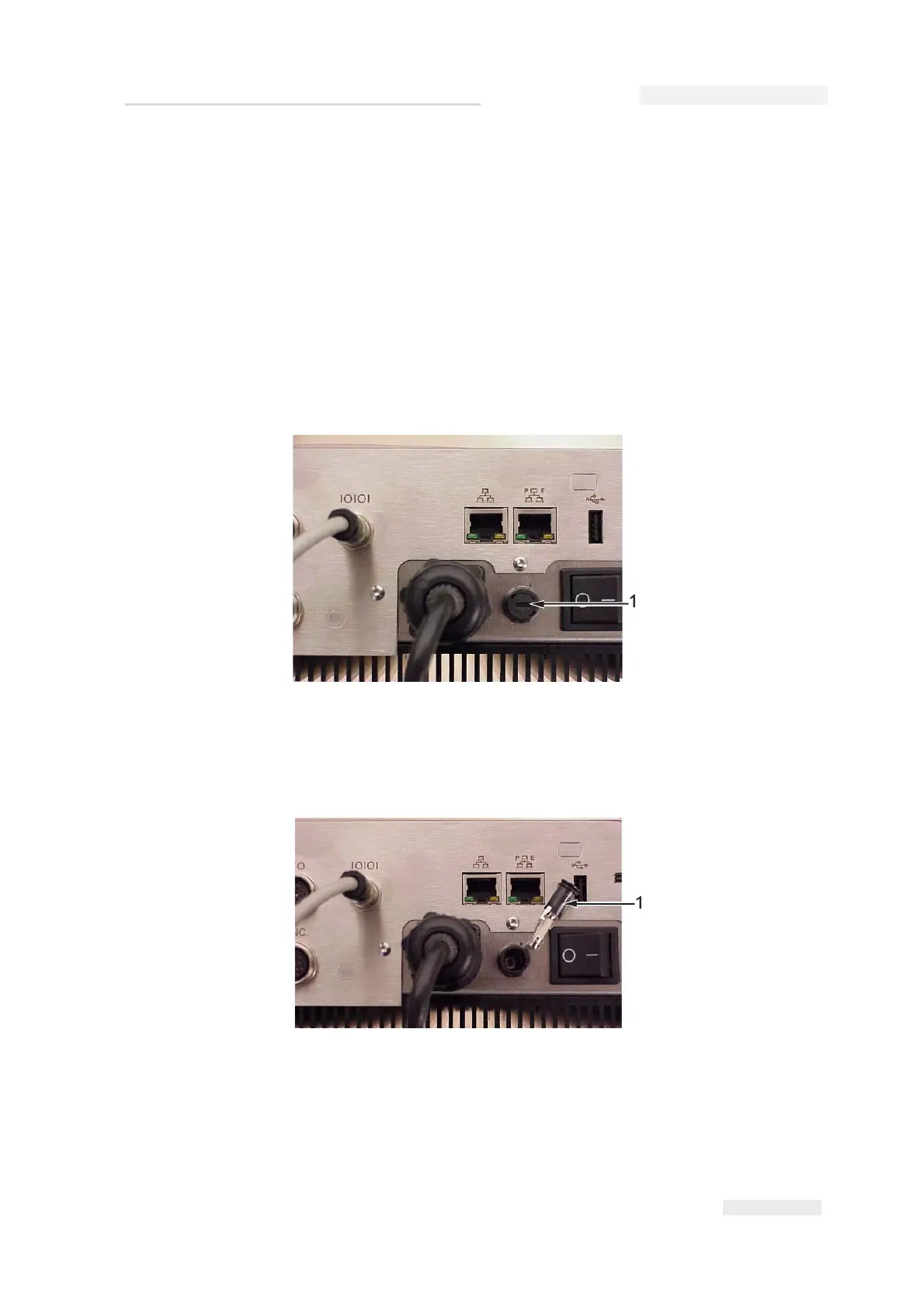

Figure 7-1: Fuse Holder removal
1. Fuse Holder
