Rev AB Installation of Printhead and Ink Cartridge 3-11
Videojet 8520 Operator Manual
Special Version Printheads for Printing Different Types of Print Material
The red printhead is short and uses the lower version of head plate with
cable outlet at the bottom (see Figure 3-21).
The green printhead is long and uses the lower version of head plate with
cable outlet at the top (see Figure 3-22). This version permits print material
to be printed which is fed through deep inside the machine.

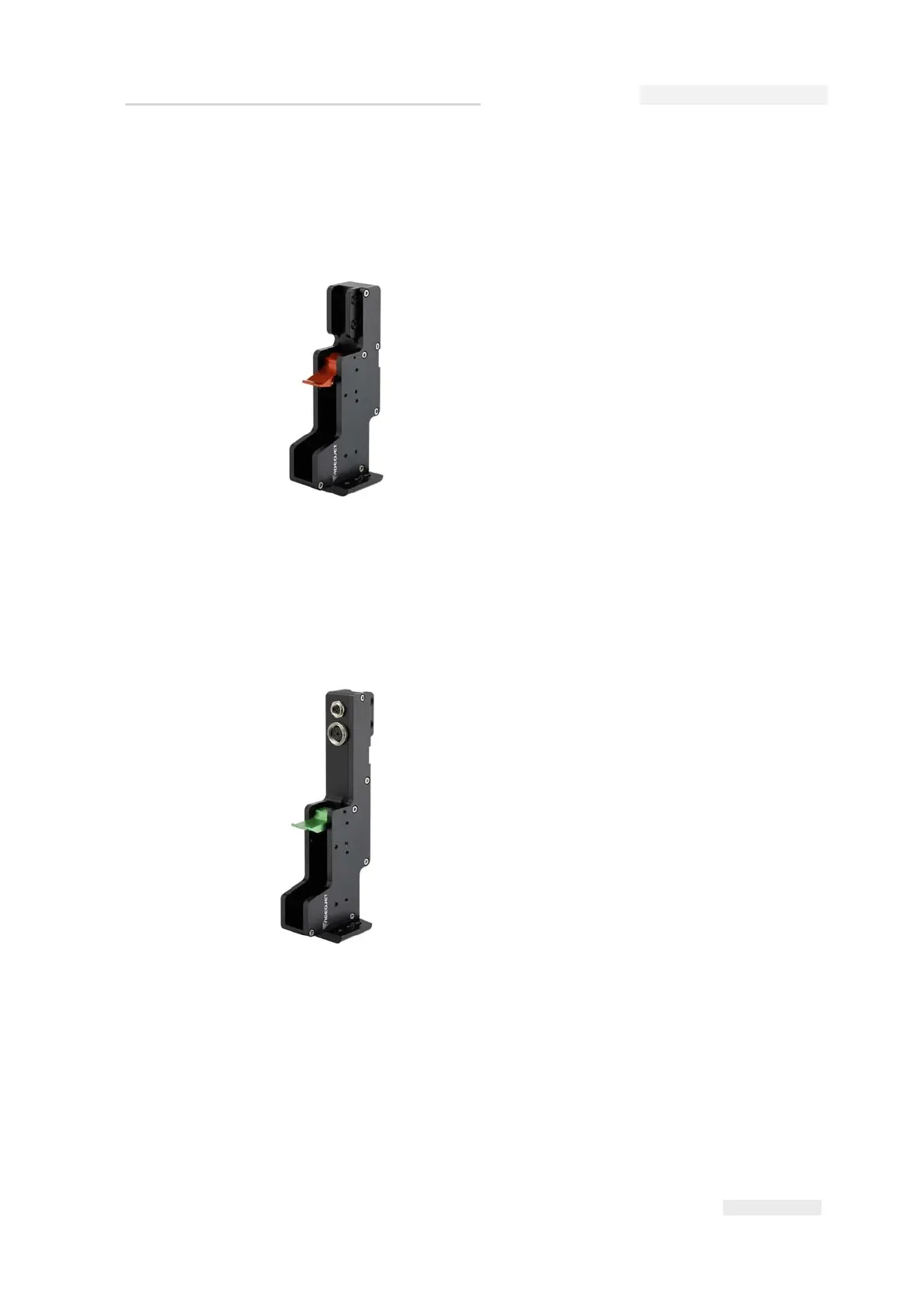

Figure 3-21: Red Printhead
Figure 3-22: Green Printhead
