3-2 Integral Parts and Accessories Rev AB
Videojet 8520 Operator Manual
Main Parts and Accessories
Controller
The controller is a touch screen user interface with an internal power
supply. All communication and power supply cables are connected
directly to the controller.
The controller is supplied with a standard mounting bracket.

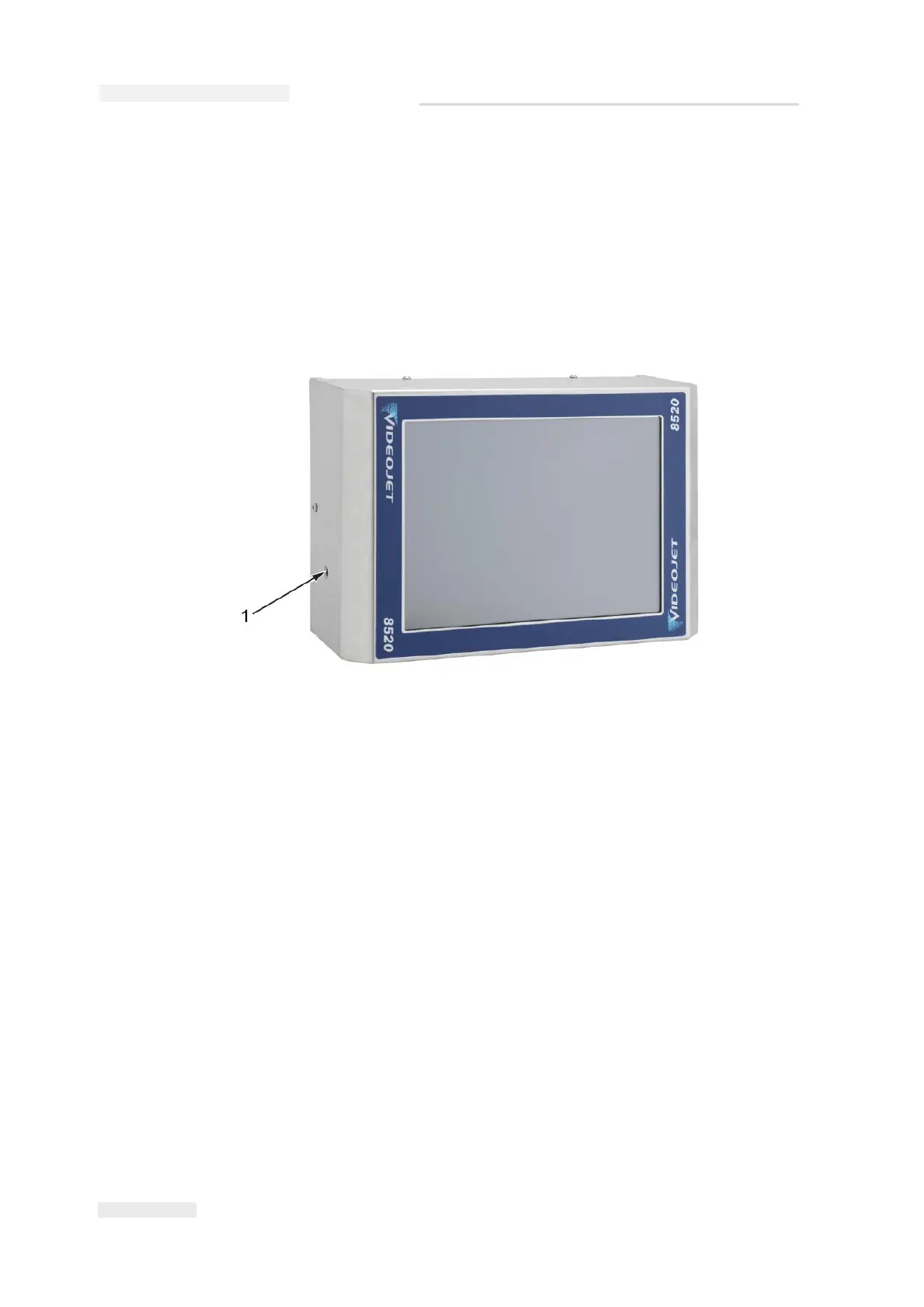

Figure 3-1: Controller
1. Mounting Hole (x2)
