Wacker Neuson 803 - Overview of Engine 3 TNV74 F-SNNS (Tier IV Final from 2012)

SHB 803 en – Edition 2.4 * 803s410.fm 4-15
Engine

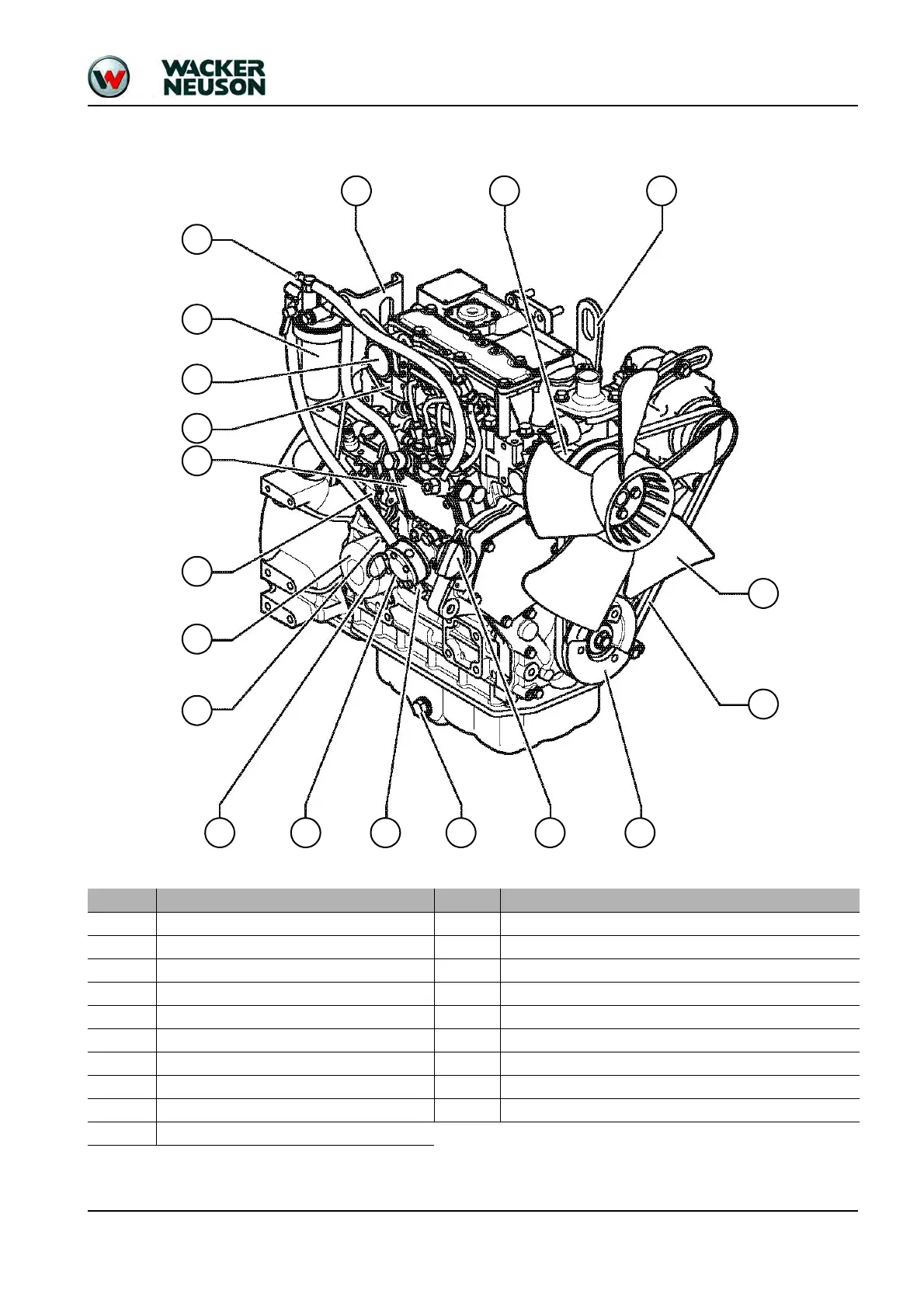

4.15 Overview of engine 3TNV74F-SNNS (Tier IV final from 2012)
1 2 3
4
5
678
16
15
14
13
12
11 910
Symbolic representation
17
18
19
Pos.
Designation
Pos.
Designation
1
Lifting eye
2
Water pump
3
Lifting eye
4
Injection pump fan wheel
5
V-belt
6
Crankshaft disk
7
Oil filler neck
8
Oil drain plug
9
Fuel intake
10
Void
11
Oil dipstick
12
Fuel supply connection
13
Engine oil filter
14
Speed control
15
Fuel injection pump
16
Intake manifold (manifold)
17
Air-intake opening (via air filter)
18
Fuel filter
19
Fuel return line
