Maintenance
Lubrication points on live ring (ball bearing)
Do not rotate the machine during lubrication!
Risk of serious crushing that can cause death or serious injury!
☞Stop and park the machine. – see chapter “Parking the machine” on
page 3-46
☞Stop and park the machine.
☞The lubrication point is located at the front right on the upper carriage.
☞Apply grease to lubrication point 11 with one stroke of the grease gun.
☞Remove ejected grease.
☞Turn the machine 90° three more times and apply grease to lubrication point 11 with
one stroke of the grease gun in the following three positions.
☞Remove ejected grease.
☞Turn the machine 360° a few times.

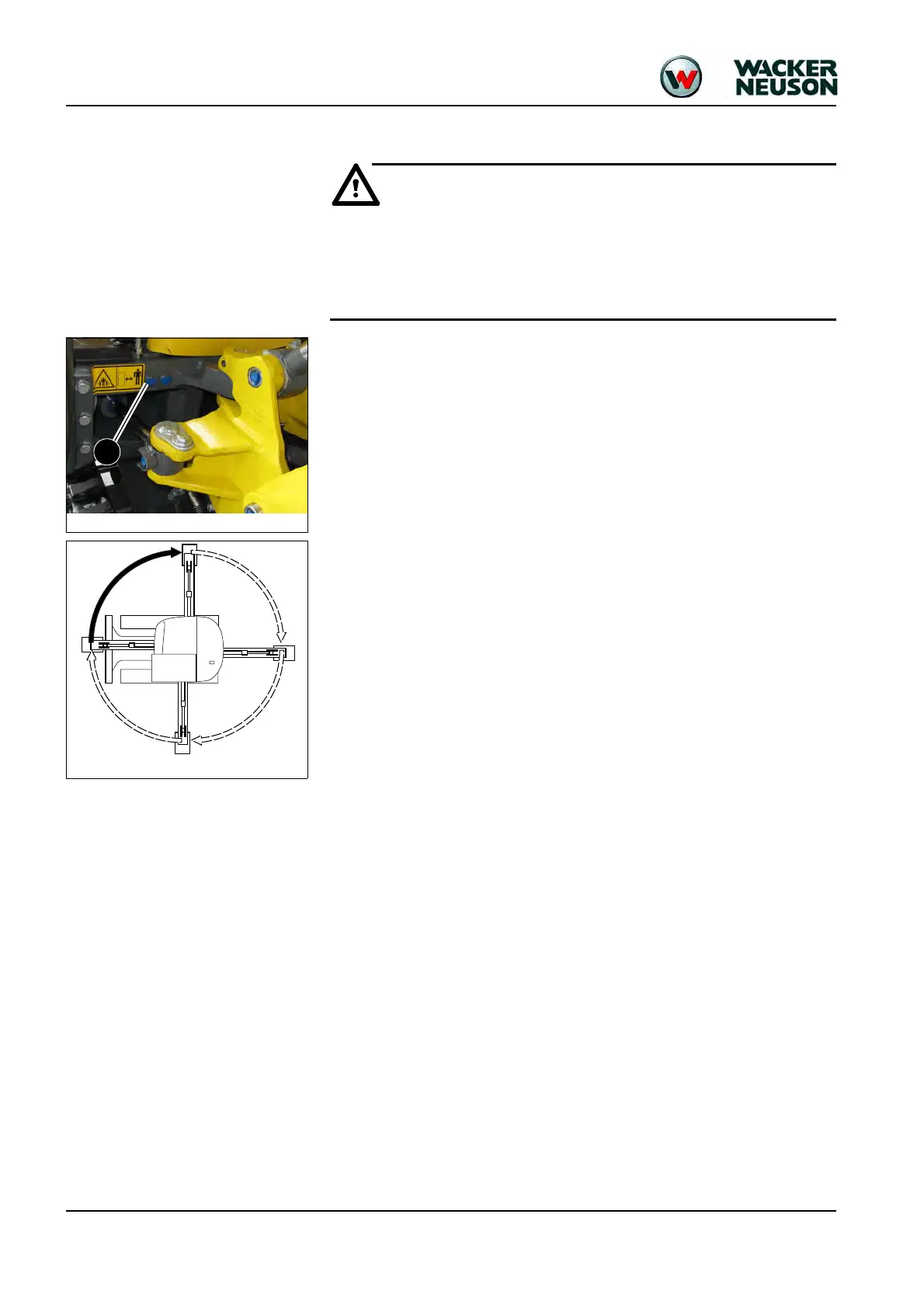

Fig. 49: Lubrication points of ball bearing race
11
Fig. 50: Lubricating the machine every 90°
