SHB 803 en – Edition 2.4 * 803s314.fm 3-49
Maintenance
Lubrication points of live ring teeth
Do not rotate the machine during lubrication!
Risk of serious crushing that can cause death or serious injury!
☞Stop and park the machine. – see chapter “Parking the machine” on
page 3-46
☞Stop and park the machine.
☞The lubrication point is located at the front right on the upper carriage.
☞Apply grease to lubrication point 12 with one stroke of the grease gun.
☞Remove ejected grease.
☞Turn the machine 90° three more times and apply grease to lubrication point 12 with
one stroke of the grease gun in the following three positions.
☞Remove ejected grease.
☞Turn the machine 360° twice.
12

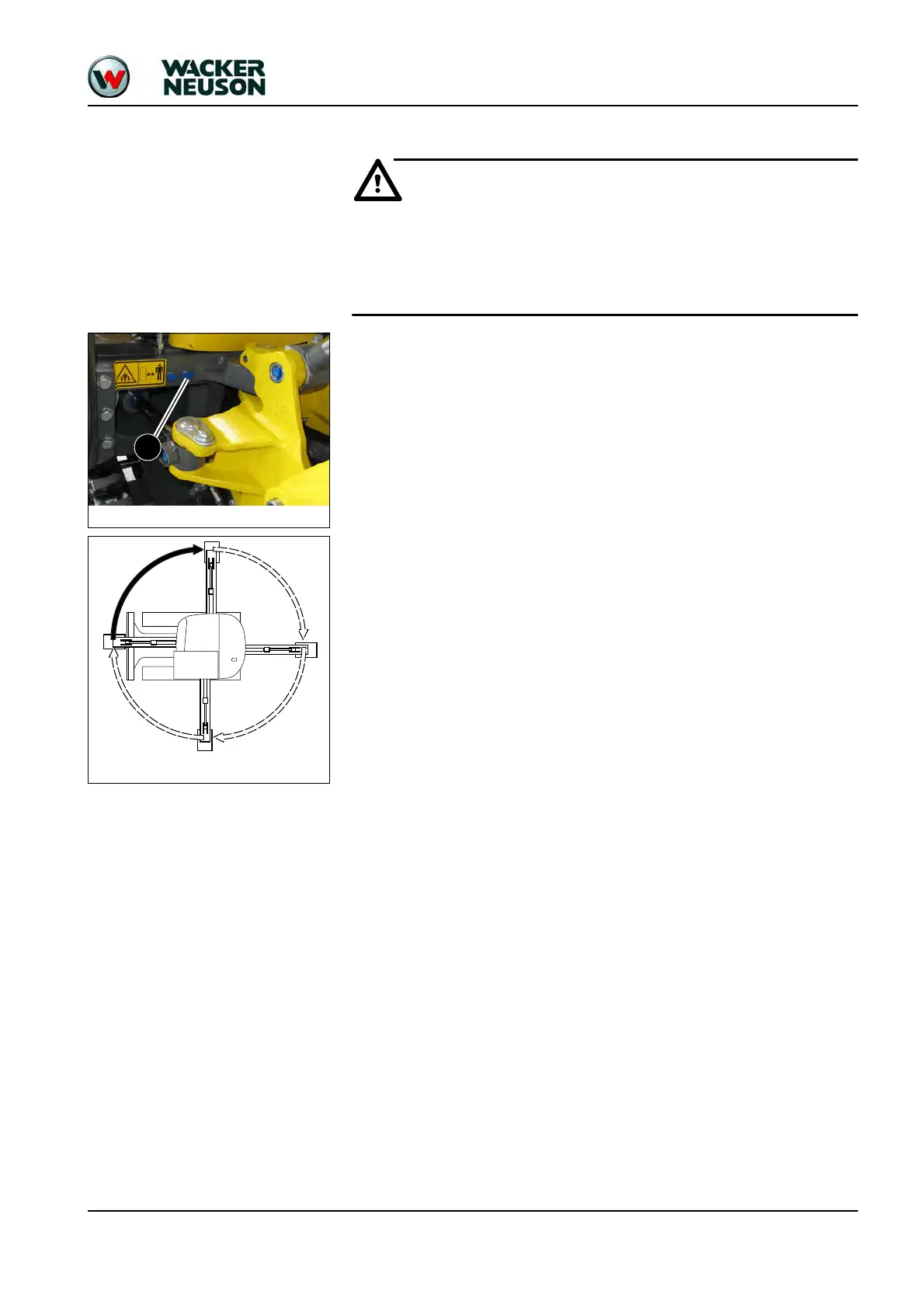

Fig. 51: Teeth lubrication point
Fig. 52: Lubricating the machine every 90°
