Wacker Neuson 803 - Traveling Drive

SHB 803 en – Edition 2.4 * 803s510.fm 5-11
Hydraulic system
5.4 Traveling drive
The hydraulic motor is slow-running Geroller motor without gears and with internal leak oil
drain.
5
3
4
1
2
6
6

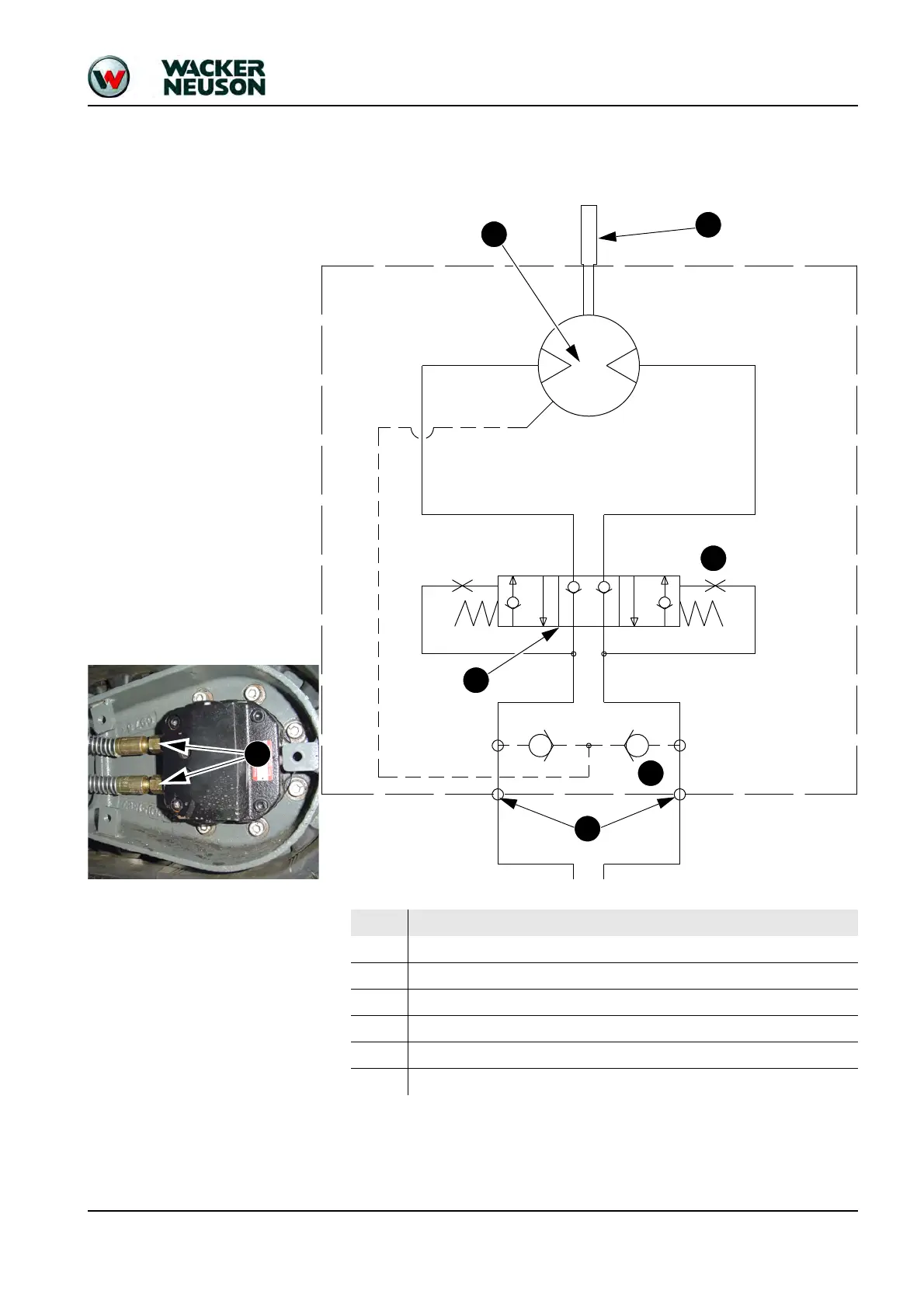

Pos. Designation
1 Input shaft
2 Engine
3 Damping
4 Brake valve
5 Non-return valve
6 Connections
