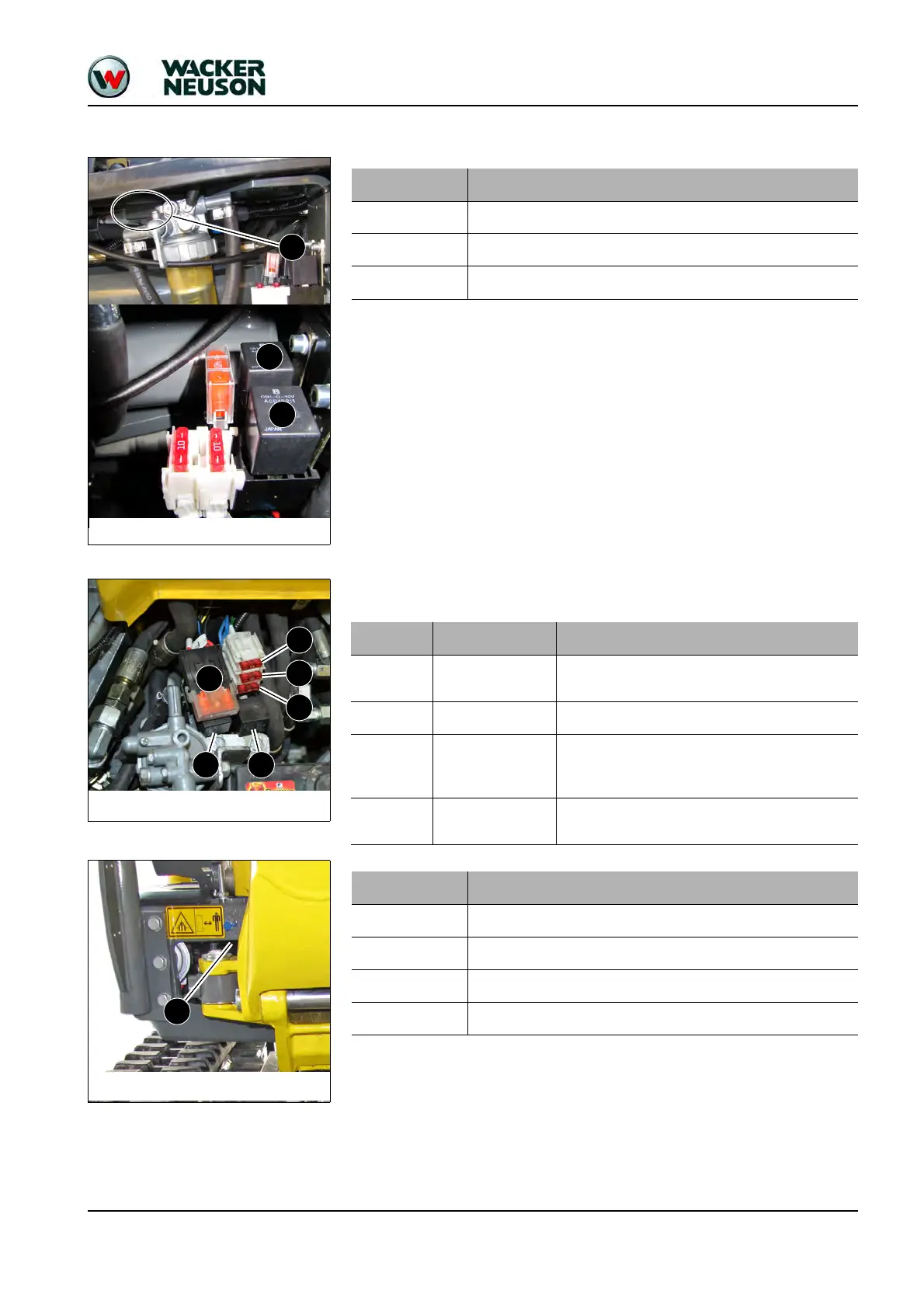

Relays behind the right-hand trim
Fuses and relays with Dual Power option
If the machine is equipped with the Dual Power option, the fuses and relays are located
under the base plate.
K8
K9
K7
Fig. 11: Relays
Relay no. Protected circuit
K 7 Starting relay
K 8 Cutoff solenoid time lag relay 1s
K 9 Cutoff solenoid switching relay
Fig. 12: Fuses and relays with Dual Power option
F1
F4
F2
F3
K7K9
Fuse no. Rated current (A) Protected circuit
F1 40 A
Main fuse: air-pressure sensor/output adaptation
(Yanmar 3TNV74F-SNNS)
F2 10 A
Fuse: relay, indicator, cutoff solenoid
F3 10 A
Fuse: horn, working light 12 V power outlet (up to
serial number WNCE0801CPAL0050, travel signal
(option), battery control (Dual Power option)
F4 10 A
12 V power outlet (from serial number
WNCE0801TPAL0051)
Fig. 13: Relay K8
K8
Relay no. Protected circuit
K 7 Starting relay
K 8 Cutoff solenoid time lag relay 1s
K 9 Cutoff solenoid switching relay
K 116 Battery control
