Wacker Neuson 803 - Dimensions Model 803 with ROPS Rollbar (from Serial No. AI00967)

SHB 803 en – Edition 2.4 * 803s210.fm 2-13
Technical data
2.13 Dimensions model 803 with ROPS rollbar (from serial no. AI00967)

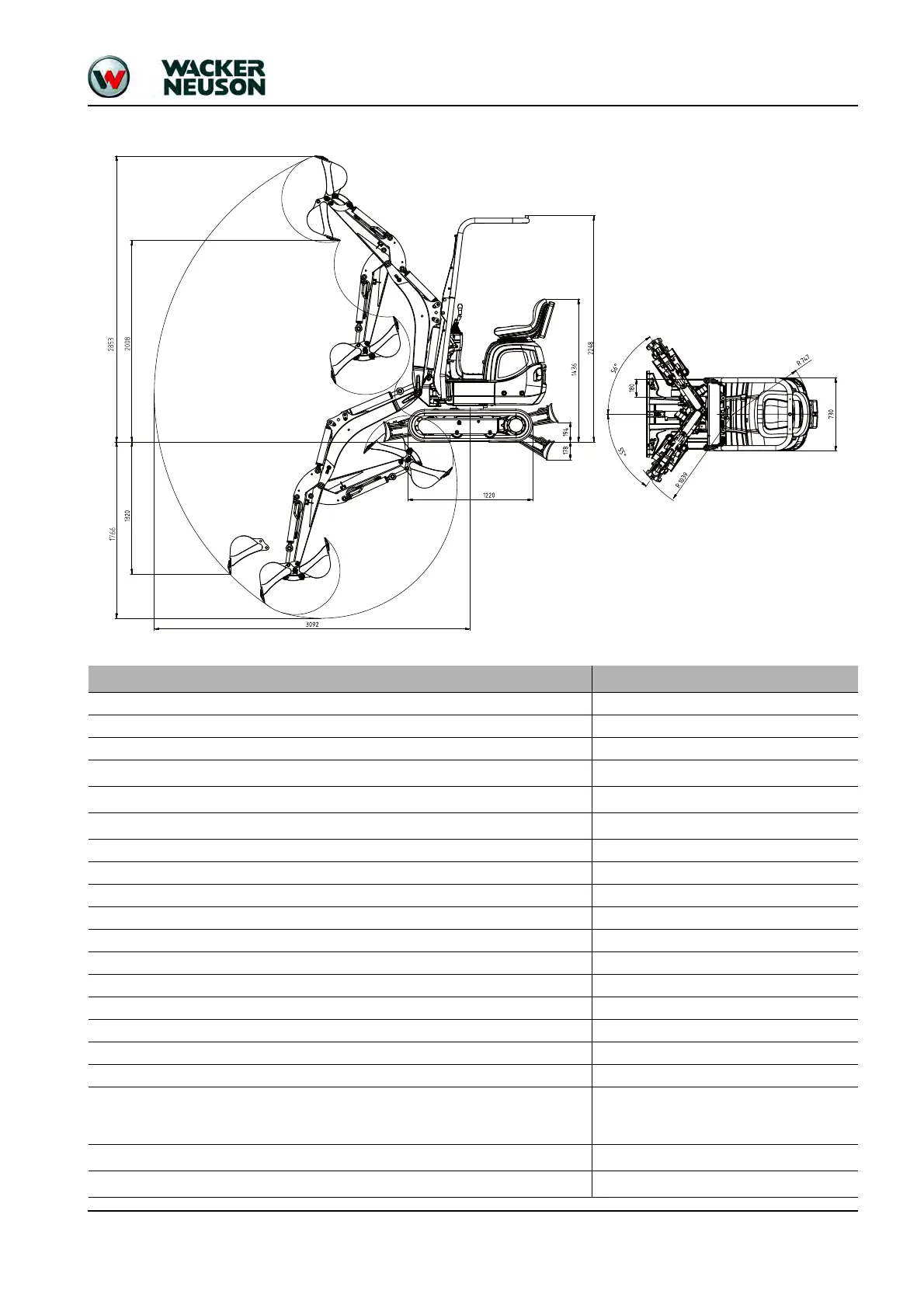

Fig. 15: Machine dimensions (model 803)
Main data Model 803
Operating weight
1087 kg ( 2396 lbs)
Transport weight
990 kg (2182 lbs)
Height (transport position)
2248 mm (7'-5")
Upper carriage width 730 mm (2'-5'')
Width of telescopic travel gear (retracted/extended) 700/860 mm (2'-4"/2'-10")
Width of stabilizer blade (folded in/out) 700/860 mm (2'-4"/2'-10")
Transport length
2747 mm (9')
Max. digging depth
1766 mm (5'-10")
Stick length
890 mm (2'-11'')
Max. vertical digging depth
1320 mm (4'-4")
Max. digging height
2853 mm (9'-4")
Max. tilt-out height
2008 mm (6'-7")
Max. digging radius
3092 mm (10'-2")
Max. reach at ground level
3046 mm (10")
Max. breakout force at bucket tooth
8.99 kN (2021 lbf)
Max. tearout force
4.51 kN (1014 lbf)
Min. tail end slewing radius
747 mm (2'-5'')
Max. tail end lateral projection (90° rotation of upper carriage)
Retracted/extended telescopic travel gear
Stabilizer blade folded in/out
397/317 mm (1'-4"/1')
397/317 mm (1'-4"/1')
Max. boom displacement to bucket center (right side)
287 mm (0' 11")
Max. boom displacement to bucket center (left side)
242 mm (0'-10")
