Technical data
2.12 Dimensions model 803 (up to serial no. AI00966)
787 (31 in)
1294 (51 in)
1220 (48 in)
500 (20 in)
897 (35 in)
747 (29 in)
1906 (75 in)
323 (13 in)
1198 (47 in)

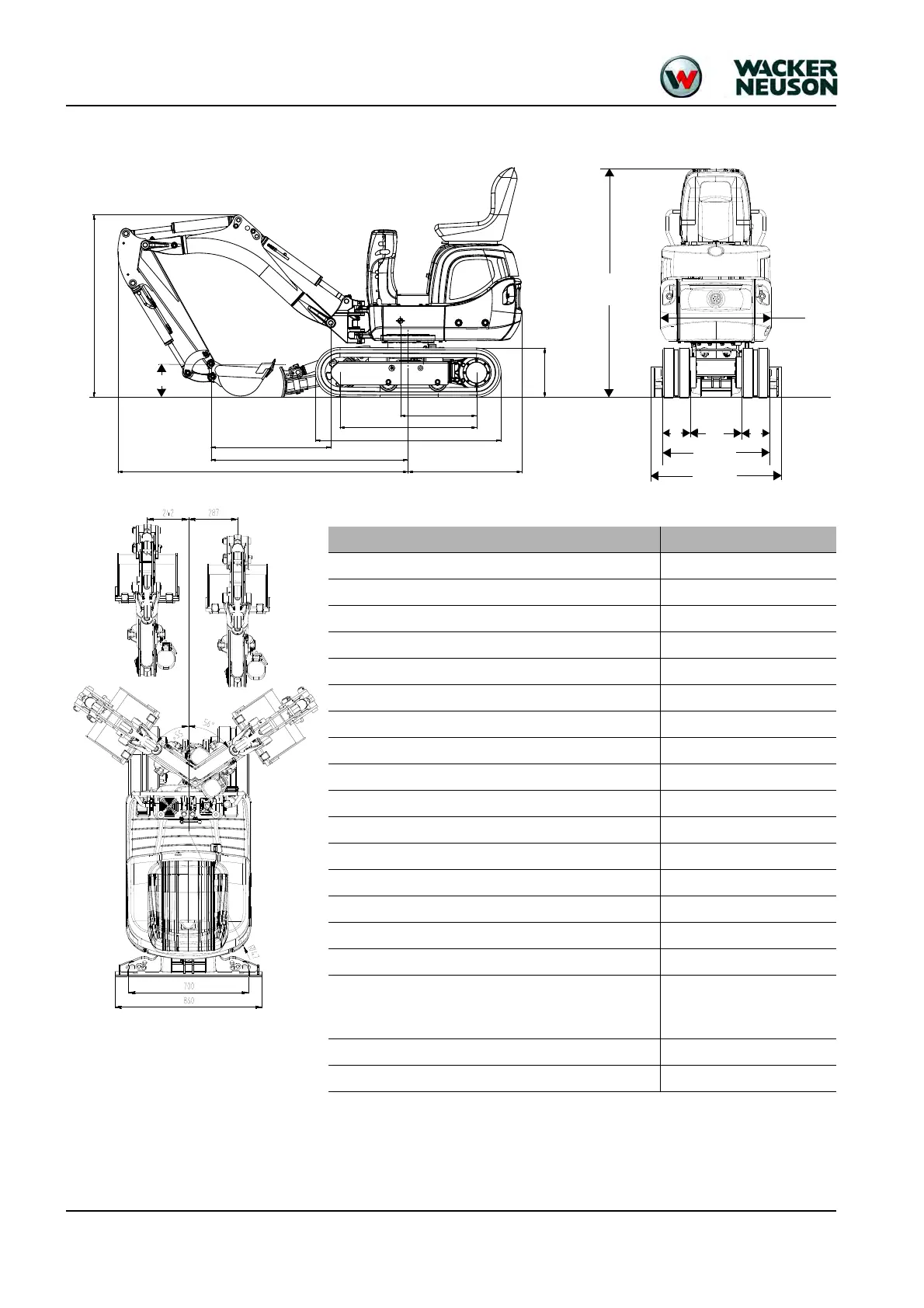

Fig. 14: Machine dimensions (model 803)
198
1507
700/860
180
180
340
700/860
730
Main data Model 803
Operating weight 935 kg (2061 lbs.)
Height (transport position) 1507 mm (4'-11")
Upper carriage width 730 mm (2'-5'')
Width of telescopic travel gear (retracted/extended) 700/860 mm (2'-4"/2'-10")
Width of stabilizer blade (folded in/out) 700/860 mm (2'-4"/2'-10")
Transport length 2747 mm (9')
Max. digging depth 1731 mm (5'-8")
Stick length 890 mm (2'-11'')
Max. vertical digging depth 1349 mm (4'-5")
Max. digging height 2863 mm (9'-5")
Max. tilt-out height 2035 mm (6'-8")
Max. digging radius 3074 mm (10'-1")
Max. reach at ground level 3028 mm (9'-11")
Max. breakout force at bucket tooth 8.99 kN (2021 lbf)
Max. tearout force 4.51 kN (1014 lbf)
Min. tail end slewing radius 747 mm (2'-5'')
Max. tail end lateral projection (90° rotation of upper carriage)
Telescopic travel gear retracted/extended
Stabilizer blade folded in/out
397/317 mm (1'-4"/1")
397/317 mm (1'-4"/1")
Max. boom displacement to bucket center (right side) 287 mm (0' 11")
Max. boom displacement to bucket center (left side) 242 mm (0'-10")
