6-4 SHB 803 en – Edition 2.4 * 803s610.fm
Electrical system
6.5 Electrical system
Fuses behind the right-hand trim
Electrical system
Dynamo 12 V 20 A
Starter 12 V 1.1 kW (1.5 hp)
Battery 12 V 30 Ah
Socket For 12 V power outlet, for example; 15 A max.
F1
F2F3

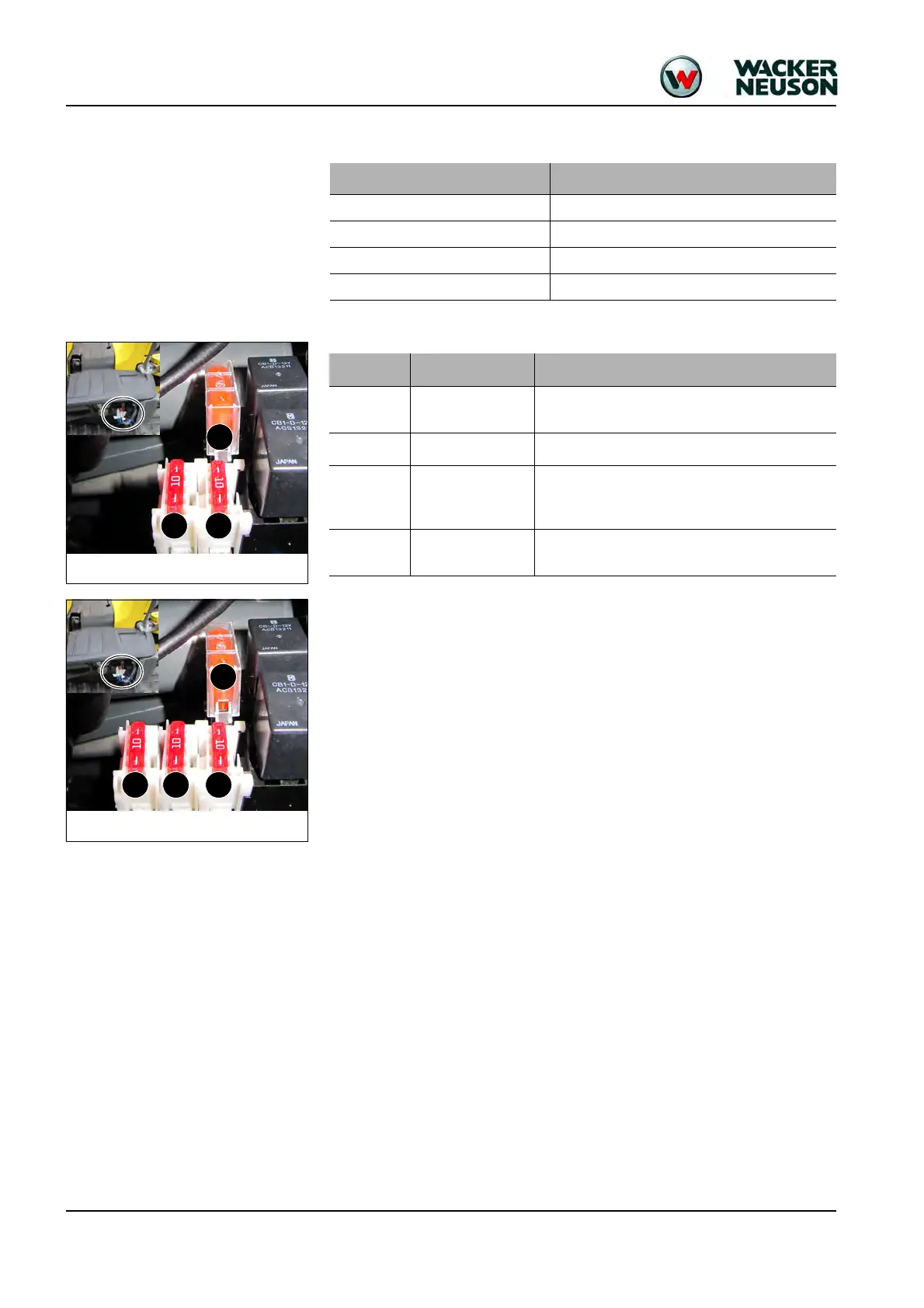

Fig. 2: Fuses (up to serial number
WNCE0801CPAL0050)
Fuse no. Rated current (A) Protected circuit
F1 40 A
Main fuse: air-pressure sensor/output adaptation
(Yanmar 3TNV74F-SNNS)
F2 10 A
Fuse: relay, indicator, cutoff solenoid
F3 10 A
Fuse: horn, working light 12 V power outlet (up to
serial number WNCE0801CPAL0050, travel signal
(option)
F4 10 A
12 V power outlet (from serial number
WNCE0801TPAL0051)
F1
F2F3
Fig. 3: Fuses (from serial number WNCE0801TPAL0051)
F4
