5-16 SHB 803 en – Edition 2.4 * 803s510.fm
Hydraulic system
5.6 Swivel joint

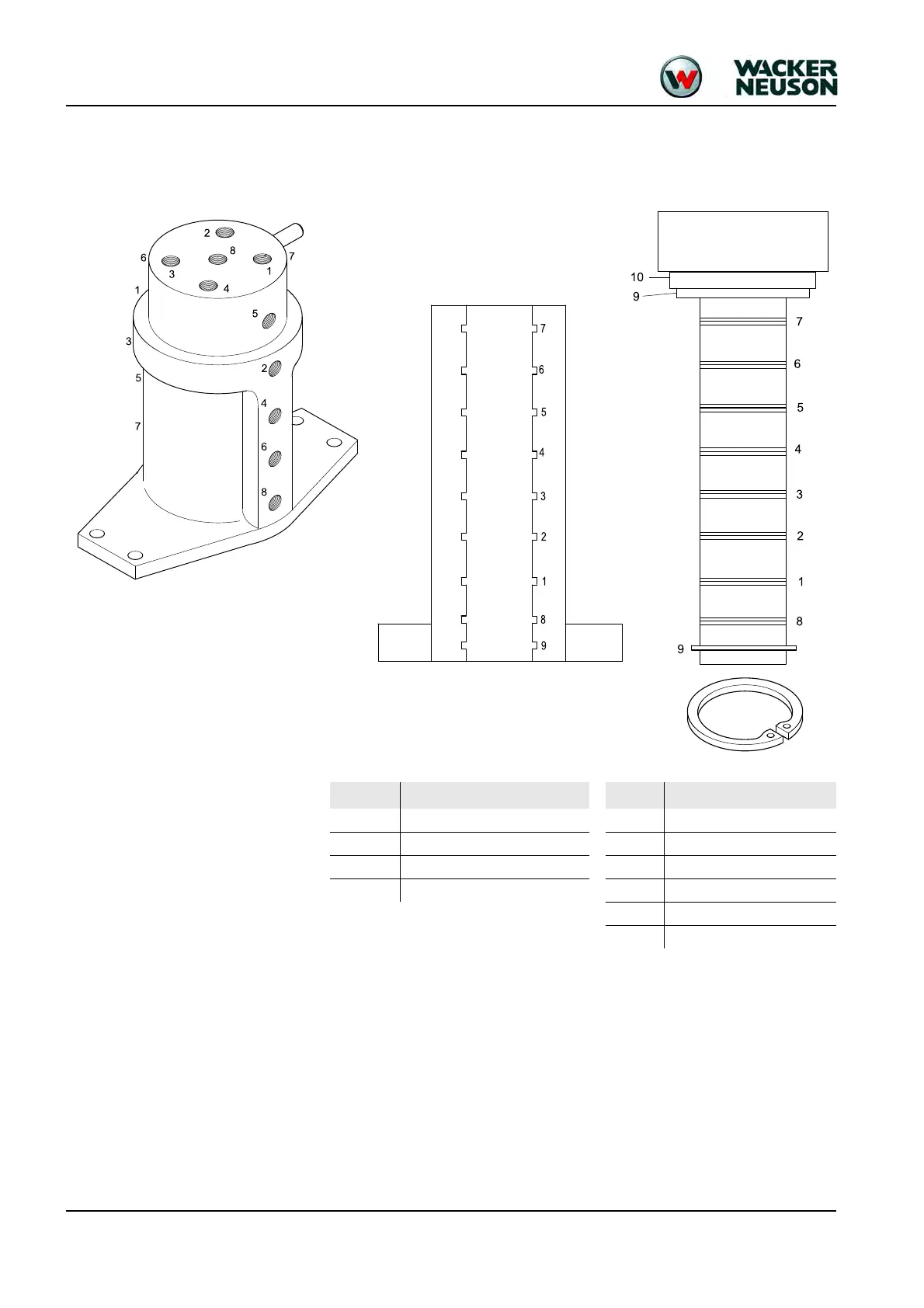

8-channel swivel joint
Sealing
☞Loosen the circlip on the lower side.
☞Pull the swivel joint apart.
☞Replace the sealing rings.
☞Push the inside and outside parts together again.
☞Insert the circlip again
Pos. Connection Pos. Designation
1a and 6a Stabilizer blade cylinder 1-8 Sealing rings
2a and 4a Traveling drive (right) 9 PU prop ring
3a and 5a Traveling drive (left) 10 V sealing ring
7a and 8a Telescopic undercarriage cylinder 11 Circlip
12 Inside part
13 Outside part
