Maintenance
Battery
Battery charge condition
☞Stop and park the machine. Stop the engine.
• The battery is maintenance-free according to DIN.
• However check the battery at regular intervals to ensure that the electrolyte level is
between the MIN and MAX marks.
More maintenance is required if:
• The engine does not start easily.
• The battery is used in areas with higher temperatures.
• The machine was out of operation over a longer period of time (2 – 3 months).
The battery must be removed before it can be checked.
Charging the battery
☞Stop and park the machine. Stop the engine.
☞Remove the battery with a suitable tool – see Replacing the battery on page 3-53.
☞Charge the battery with a suitable battery charger.
• Recommended battery charging current: 1/10 of the battery capacity.
☞After charging the battery, check the electrolyte level to ensure that it is between the
MIN and MAX marks.
☞Correct the electrolyte level if necessary.
Replacing the battery
The battery is located under the floor panel directly in front of the control stand.
Always follow the specific battery safety instructions.
☞Stop and park the machine. Stop the engine.
☞Open the engine cover.
☞Remove floor panel B with a suitable tool.
☞First remove the black battery lead from the negative terminal (−), then the red battery
lead from the positive terminal (+).
☞Replace the battery.
☞First install the battery lead on the positive terminal (+), then on the negative terminal (−).
☞Install floor panel B.
☞Close the engine cover.
In order to avoid damage to the engine electronics, do not disconnect the battery
while the engine is running.

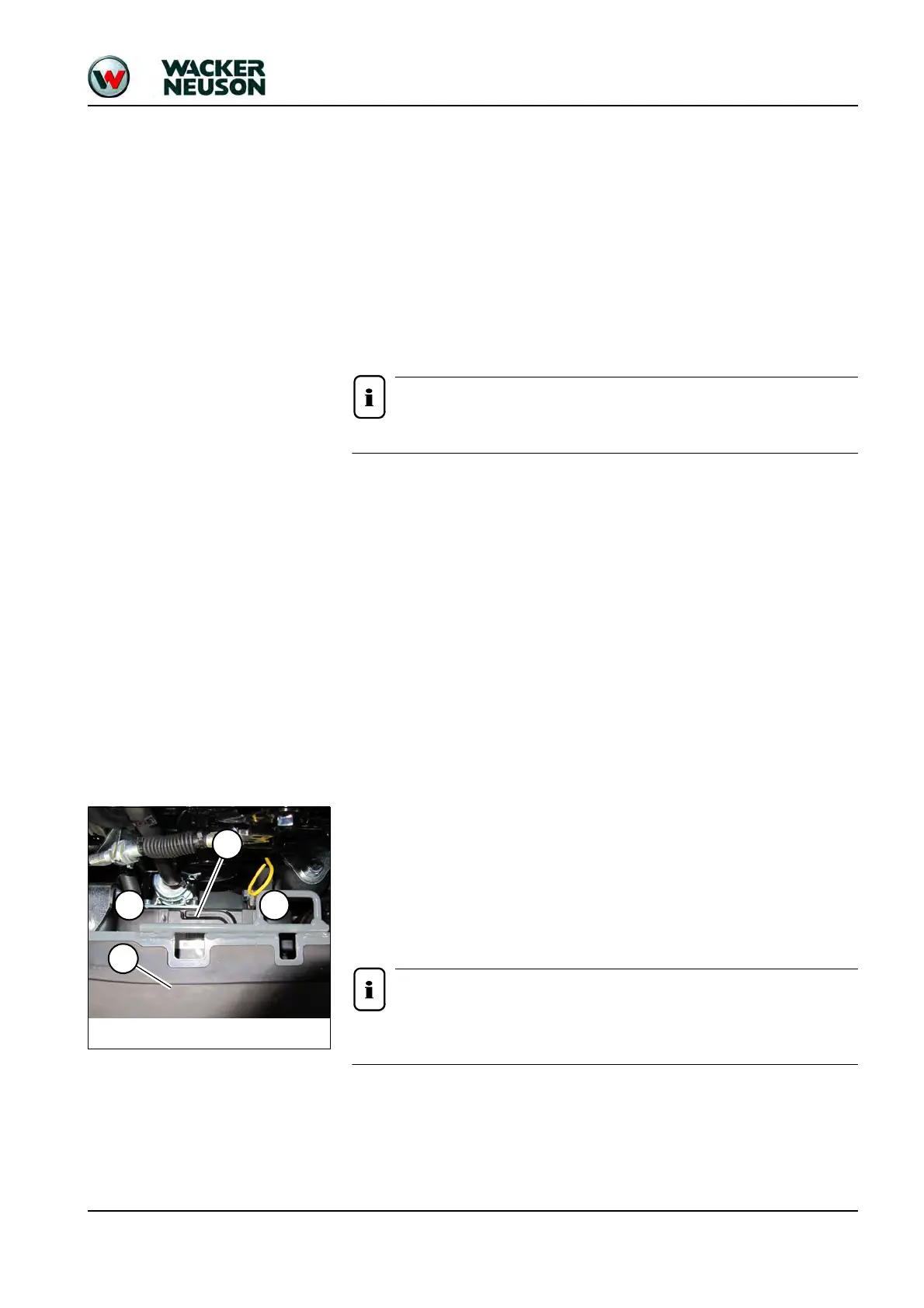

Fig. 56: Replacing the battery
-+
A
B
