7-4 SHB 803 en – Edition 2.4 * 803s710.fm
Options
Lowering and raising the rollbar
Lowering the rollbar:
☞Park the machine on level ground
☞Stop the engine
☞Lock the control levers
☞Install suitable lifting gear on the rollbar
☞Remove the split pins and pins B on either side
☞Slowly and carefully lower the rollbar with suitable lifting gear and auxiliary means
toward C, as far as it will go S.
Raising the rollbar:
☞Park the machine on level ground
☞Stop the engine
☞Lock the control levers
☞Install suitable lifting gear on the rollbar
☞Slowly and carefully raise the rollbar with suitable lifting gear and auxiliary means
☞Fit pins B again on either side and secure them with the split pins
Lowerable ROPS rollbar from serial no. AI00967
The ROPS rollbar is very heavy, folding it up and down, or lowering and raising
it, is very
Dangerous!
☞Use suitable lifting gear and auxiliary means to lower, raise and fold the roll-
bar up and down.
Always fasten the lap belt if the rollbar is folded up.
Do not use the lap belt without the rollbar!
Accident hazard!
In case of structural damage on the rollbar, replace it immediately otherwise
safety is no longer ensured!
For safety reasons, always use the ROPS bar if it is fitted on your machine.
Bracket P for installing a rotating beacon is located on top of the rollbar.

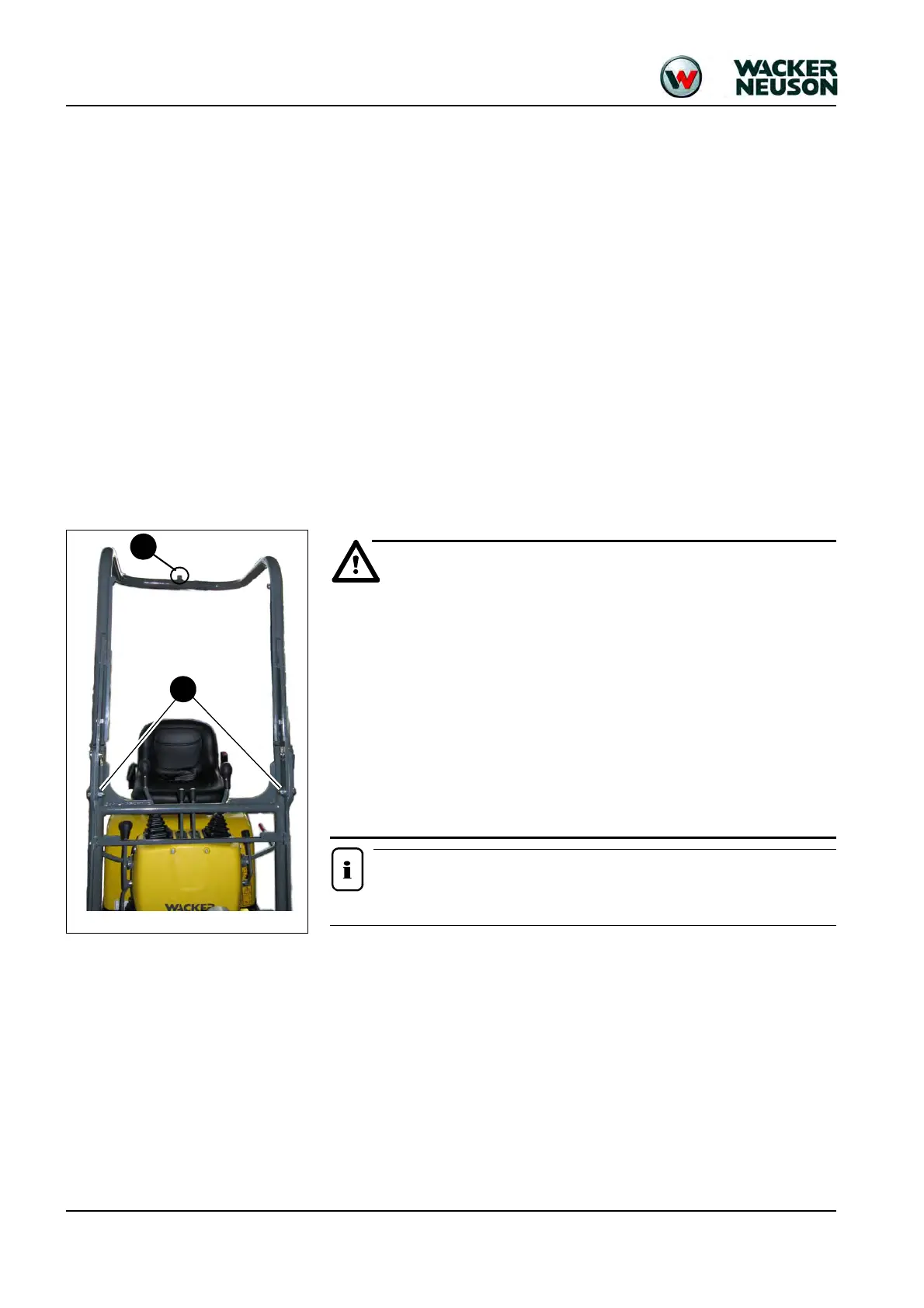

Fig. 3: Raised ROPS rollbar (option)
A
P
