Wacker Neuson 803 - Dynamo; Rectifier; Starter

SHB 803 en – Edition 2.4 * 803s610.fm 6-7
Electrical system

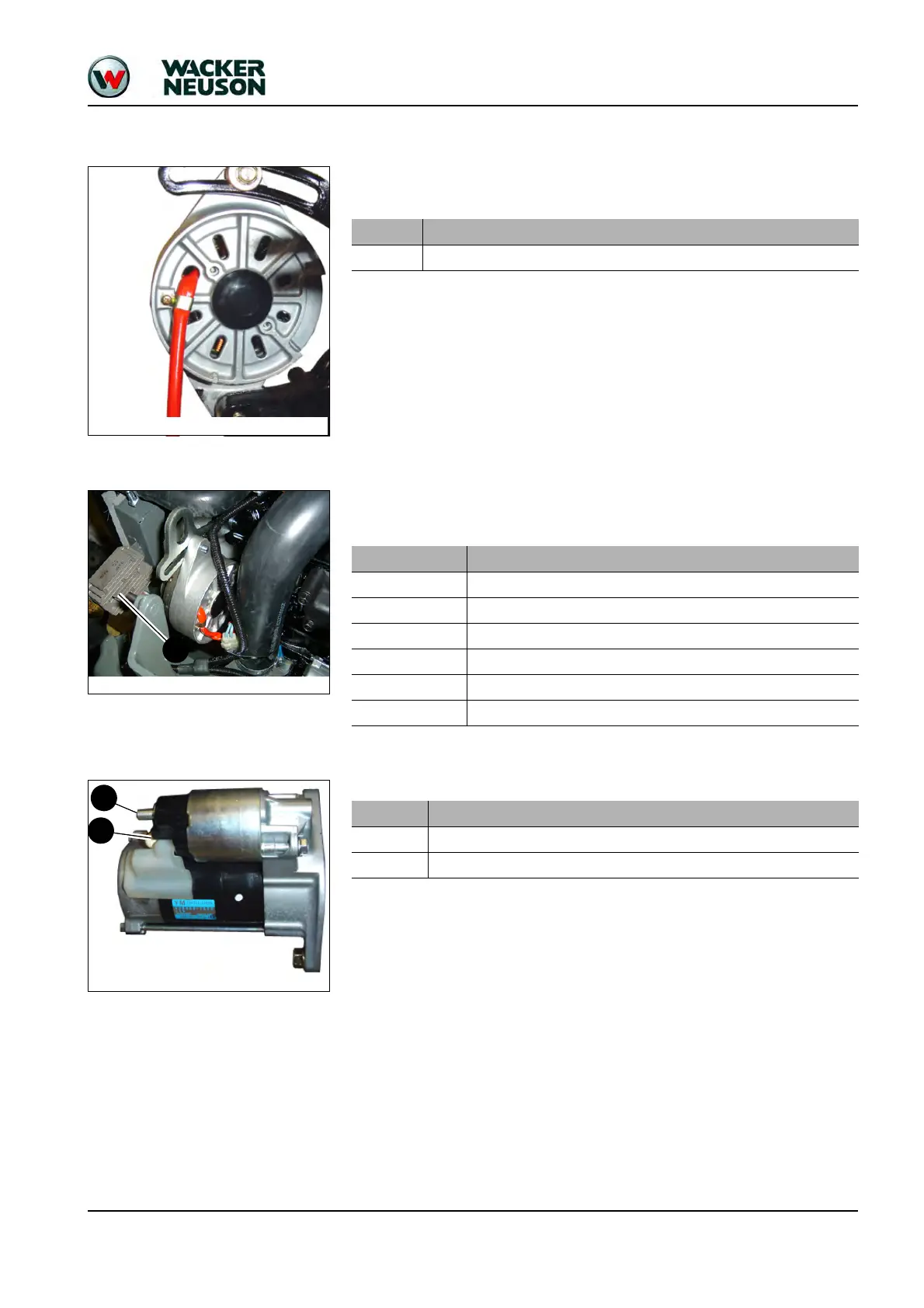

6.8 Dynamo
The dynamo supplies the alternating current (rectified by the rectifier) to the electric con-
sumers and for charging the battery.
6.9 Rectifier
Rectifier R rectifies the dynamo voltage.
Wiring:
6.10 Starter
Fig. 8: Dynamo
Pos. Designation
1
Alternating voltage to rectifier
Fig. 9: Rectifier
1
R
Color Assignment
Blue Alternating voltage (dynamo)
Black Ground
Red Battery +
Orange 12V starter
Brown Start interlock
Yellow Charge indicator light
Fig. 10: Starter
2
1
Pos. Designation
1
Connection S starting relay
2
Connection B battery
