Wacker Neuson 803 - Parking the Machine; Lubrication Points on the Stabilizer Blade and Stabilizer Blade Cylinder

3-46 SHB 803 en – Edition 2.4 * 803s314.fm
Maintenance
Notice!
Keep the lubrication points clean and remove ejected grease.
Parking the machine
☞Park the machine on level and horizontal ground.
☞Lower the boom and the attachment to the ground.
☞Lower the stabilizer blade to the ground.
☞Stop the engine.
☞Remove the starting key and carry it with you.
☞Move control levers 15 and 16 in all directions repeatedly.
☞Raise the lock lever.
☞Get off the machine, lock the engine cover.
Lubrication points on the stabilizer blade and stabilizer blade cylinder
☞Apply grease to lubrication points 5 on the stabilizer blade cylinder
☞Apply grease to lubrication points 6 on the stabilizer blade
Pos. Lubrication point Quantity
1
Bucket cylinder 2
2
Stick cylinder 2
3
Boom cylinder 2
4
Boom 2
5
Stabilizer blade cylinder – see chapter “Lubrication points on the stabilizer blade and stabilizer blade cylinder”
on page 3-47
2
6
Stabilizer blade – see chapter “Lubrication points on the stabilizer blade and stabilizer blade cylinder” on
page 3-47
2
7
Stick 1
8
Bucket 2
9
Swiveling console – see chapter “Lubrication points on swiveling console” on page 3-47 2
10
Swiveling cylinder 2
11
Live ring (ball bearing) – see chapter ”Lubrication points on live ring (ball bearing)” on page 3-48 1
12
Live ring teeth – see chapter “Lubrication points of live ring teeth” on page 3-49 1
13
Ball sockets (ISO/SAE changeover option) 2

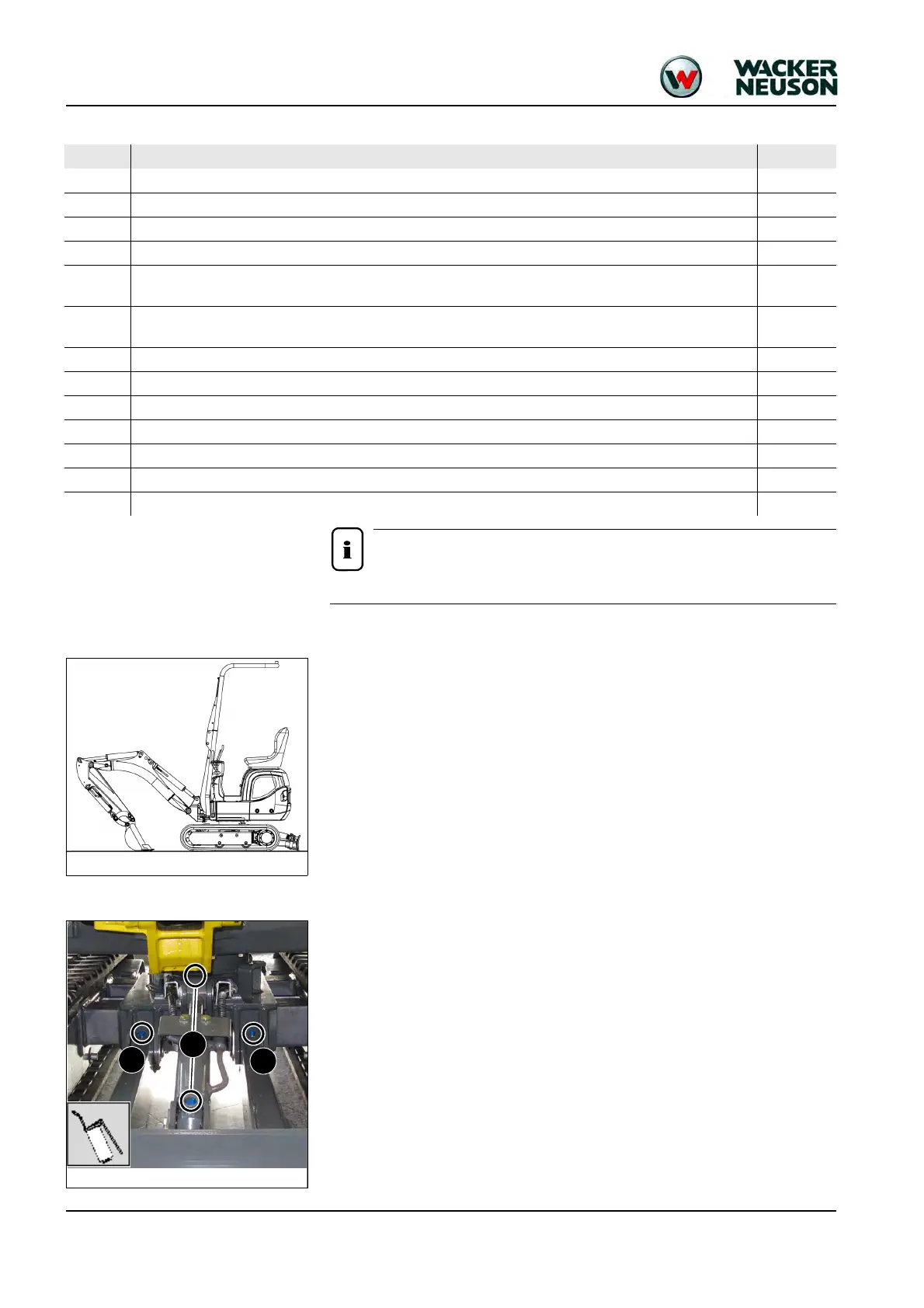

Fig. 44: Parking the excavator
5
6
6
Fig. 45: Lubrication points on the stabilizer blade
