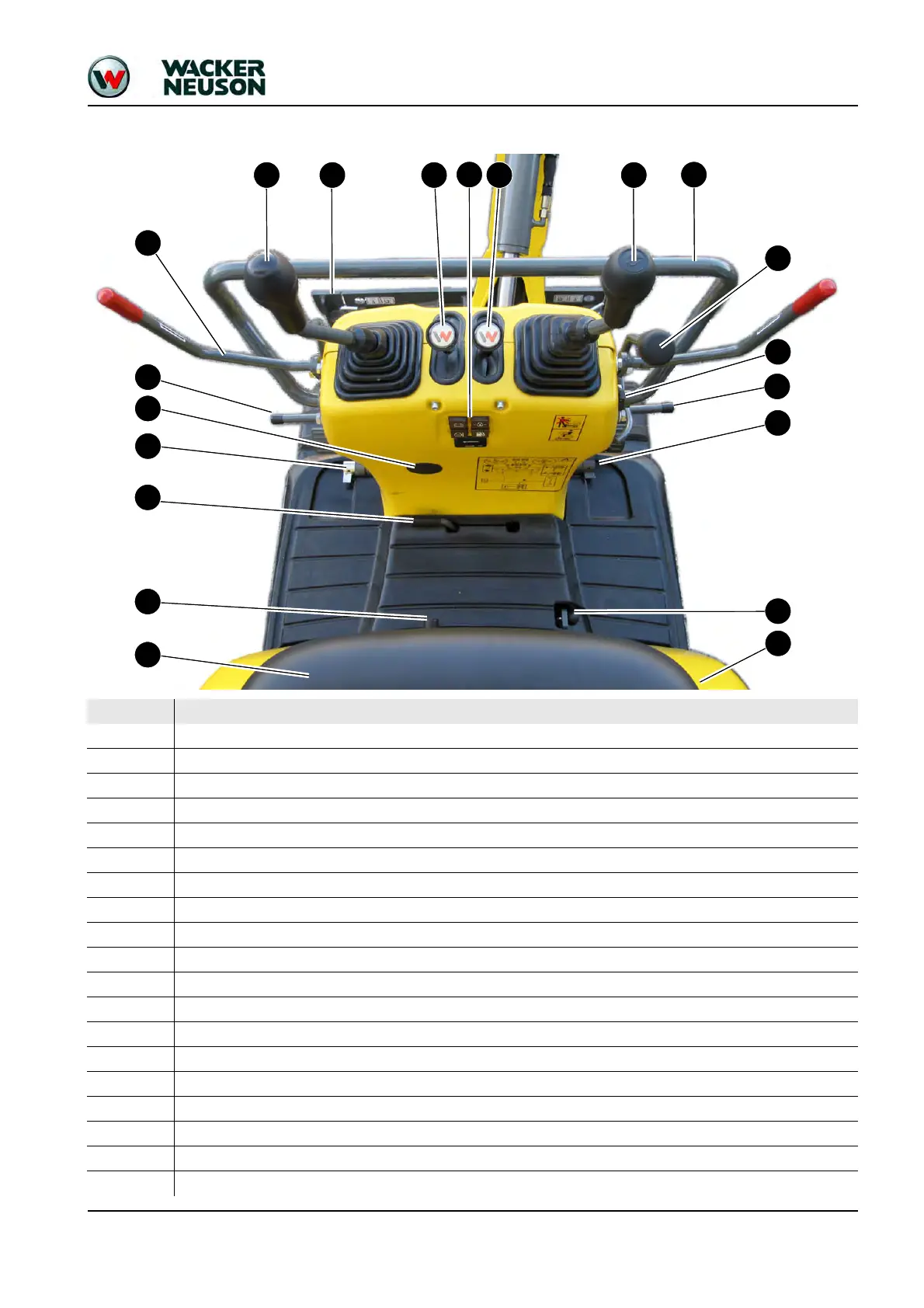

1.8 Control stand overview (from serial no. AI00815)
Pos. Designation
1
Operator seat
2
Upper carriage lock
3
Engine cover lock
4
Starter
5
Stabilizer blade/telescopic travel gear lever
6
Stabilizer blade/telescopic travel gear changeover lever
7
Boom swivel pedal
8
Engine cover
9
Handhold
10
Auxiliary hydraulics pedal
11
Footrest
12
Lock lever
13
Throttle
14
Control lever (left)
15
Drive lever (left)
16
Drive lever (right)
17
Control lever (right)
18
Display element
19
Lever for switching over hammer/grab operation (option)
4
6
1
2
3
5
7
8
10
11
11
12
1314 15 16 17
9
18
19
