5-18 SHB 803 en – Edition 2.4 * 803s510.fm
Hydraulic system
Drive levers (up to serial no. AI00814)
Setting the drive levers
☞Place the machine horizontally
☞Adjust the length of the adjustment linkage so that the shackle on the drive lever
remains horizontal in neutral position.
➥A correct setting ensures maximum operating comfort and best possible straight-
ahead driving features.
The pedals for the auxiliary hydraulics and for swiveling cannot be adjusted.

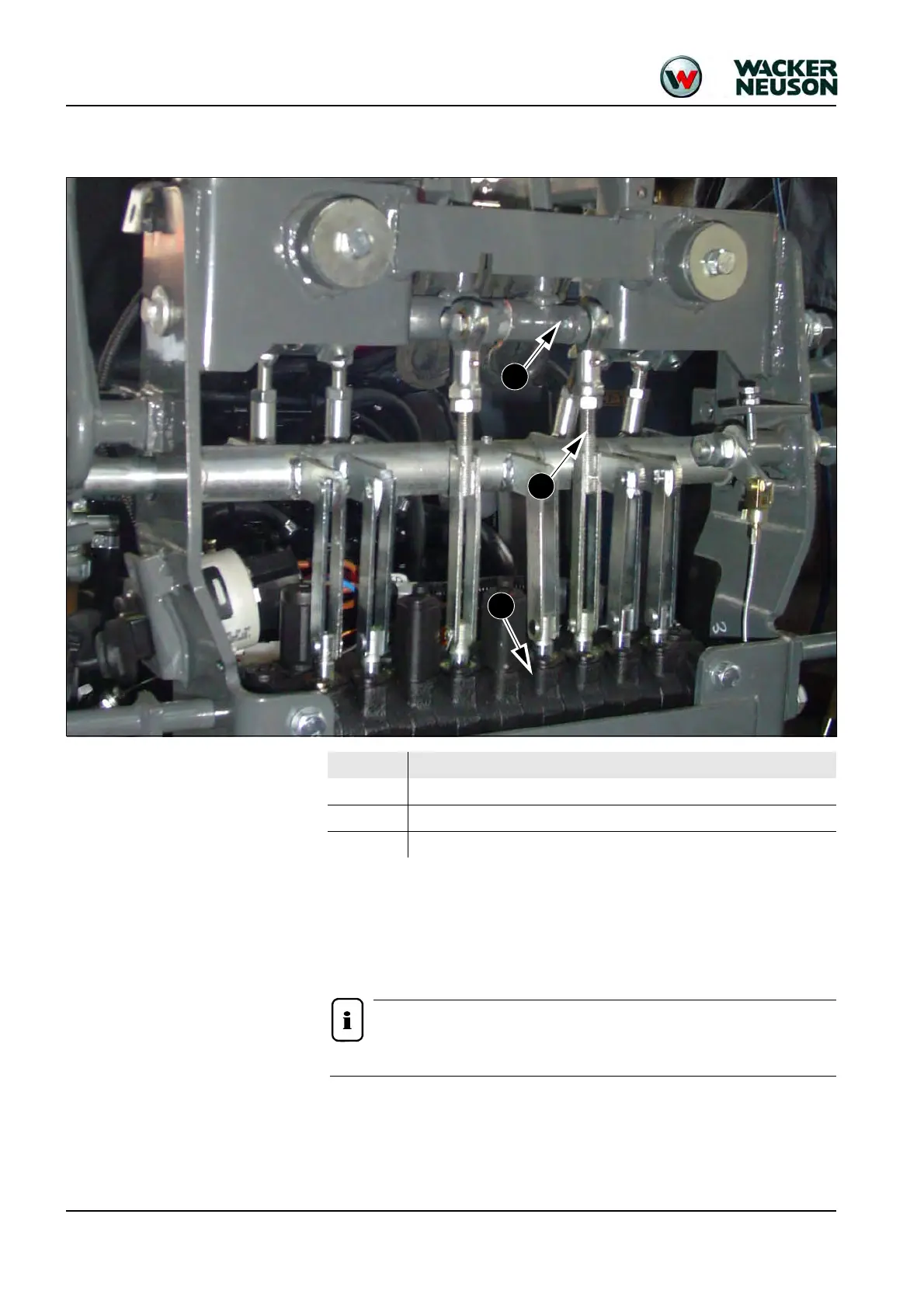

Pos. Connection
1 Shackle on drive lever
2 Adjustment linkage
3 Main valve block
