Wacker Neuson 803 - Pump Unit: Exploded View

SHB 803 en – Edition 2.4 * 803s510.fm 5-5
Hydraulic system

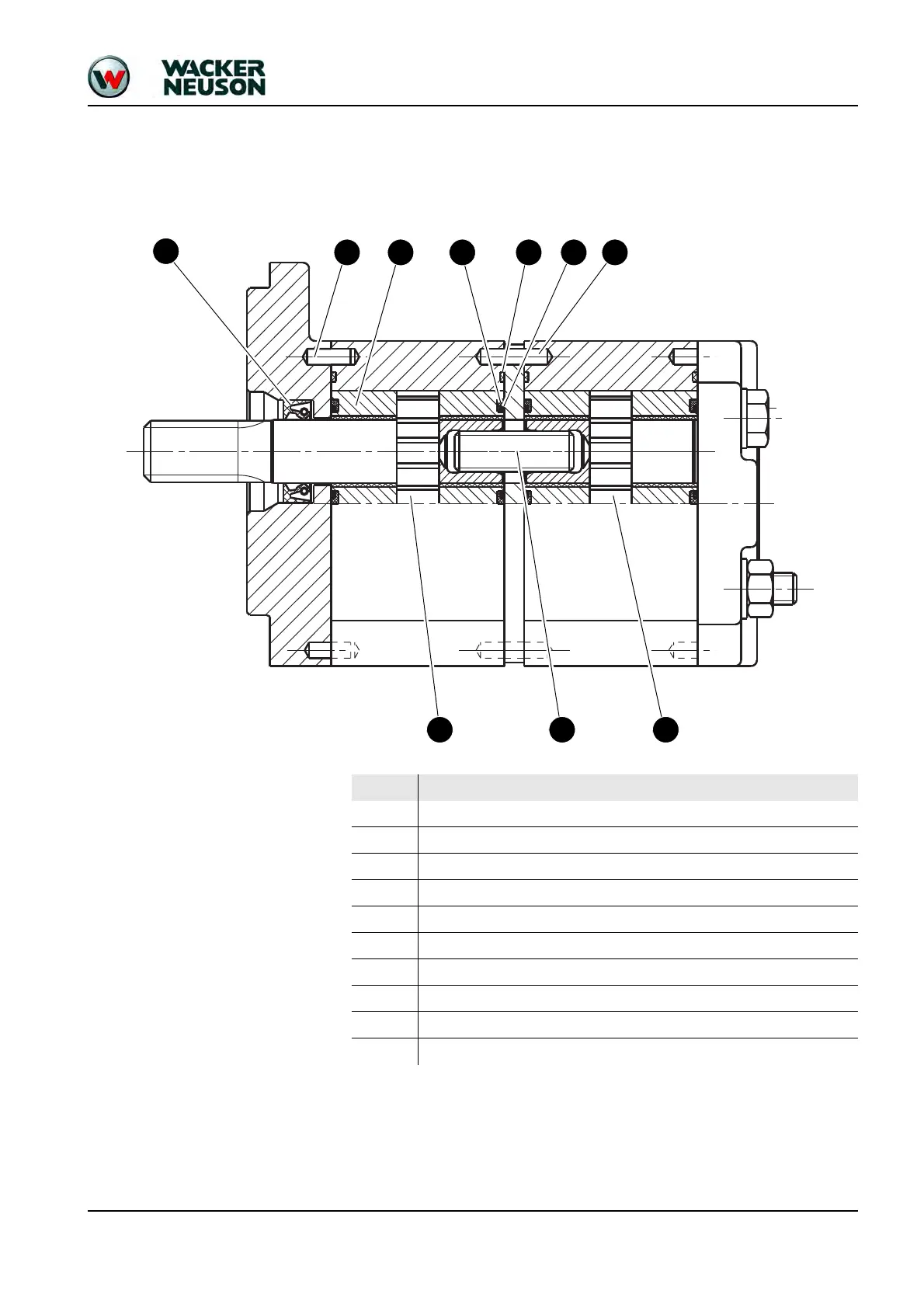

Pump unit: exploded view
6
11 7 8 10 9 12
4 13 5
Pos. Designation
4 Gear shaft set
5 Gear set
6 Lip seal
7 Sleeve
8 Sealing ring
9 Prop ring
10 Seal
11 Parallel pin
12 Parallel pin
13 Connecting shaft
