Maintenance
Lubrication points on swiveling console
☞Apply grease to lubrication points 9 of the swiveling console
Swiveling cylinder lubrication points
☞Stop and park the machine.
☞Open the engine cover.
☞The lubrication point is located on the right under the engine cover.
☞Apply grease to lubrication point 10 with a grease gun.
☞Remove ejected grease.
☞A further lubrication point is located on the right on the swiveling console.
☞Apply grease to lubrication point 10 with a grease gun.
☞Remove ejected grease.

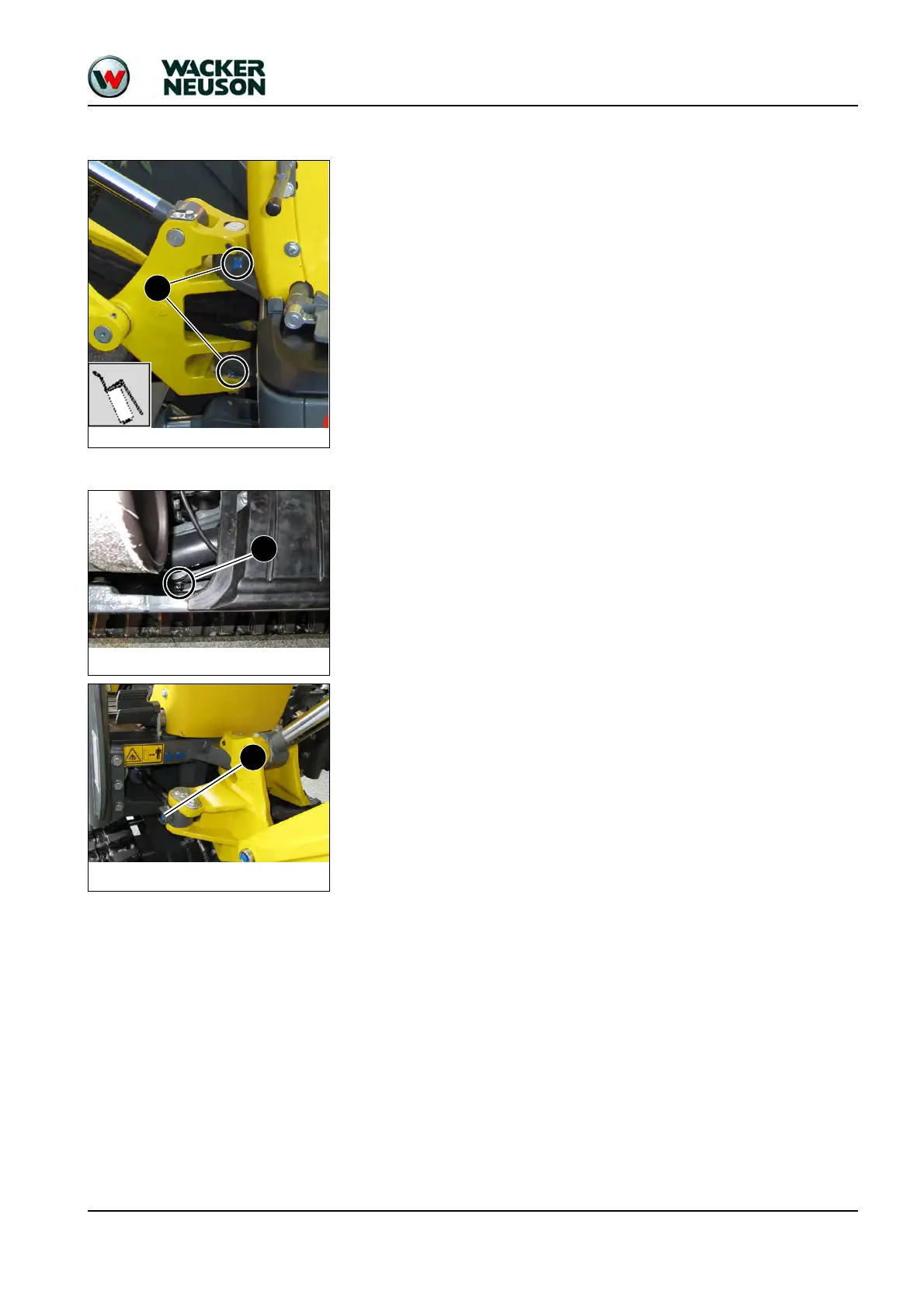

Fig. 46: Lubrication point on the swiveling console
9
Fig. 47: Lubrication point on swiveling cylinder (engine
cover)
10
10
Fig. 48: Lubrication point on swiveling cylinder (swiveling
console)
