Waters 2489 - Disassembling the Flow Cell

4-10 Maintaining the Detector

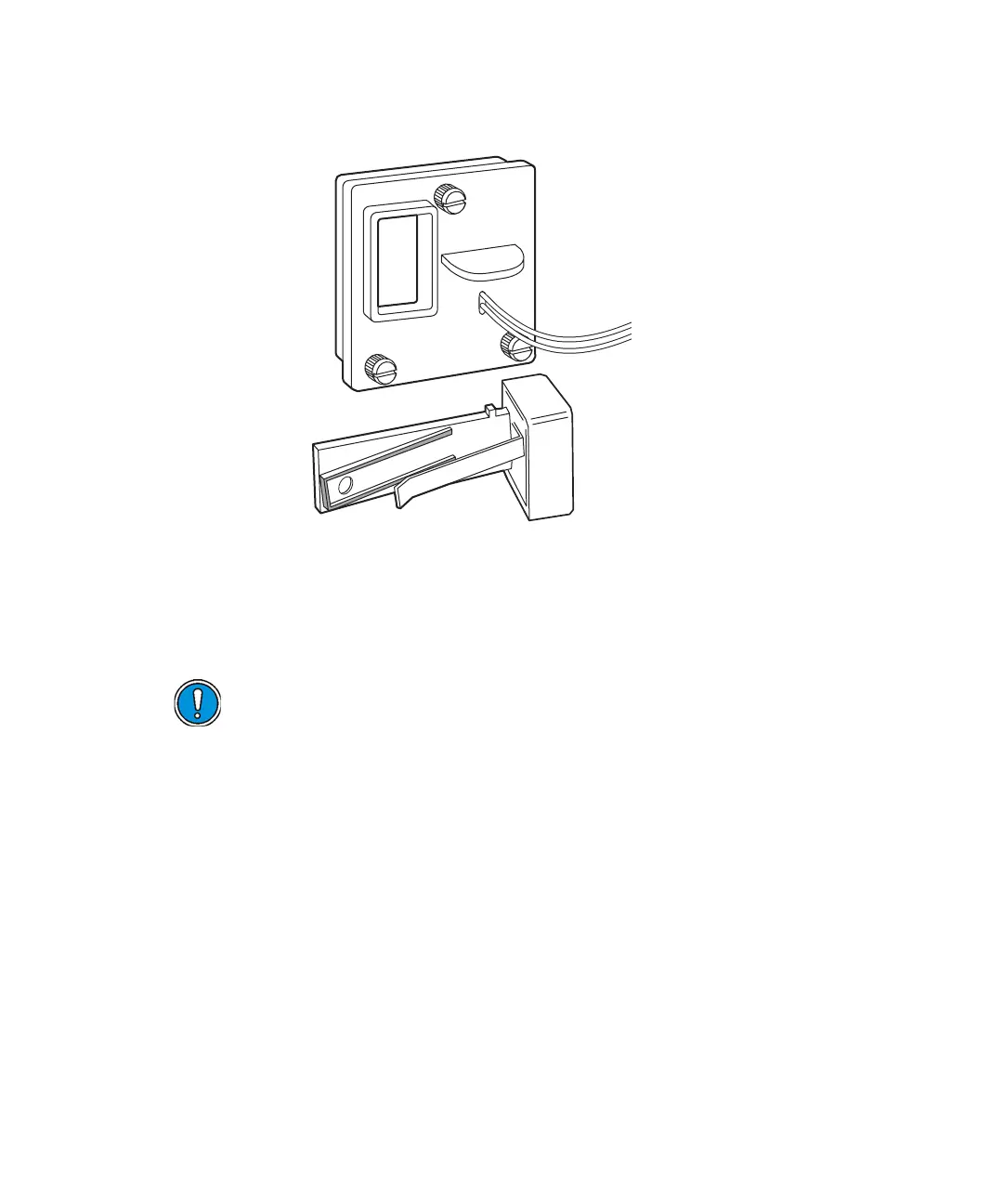

Detector flow cell assembly with the cuvette subassembly removed
7. Place the flow cell assembly on a flat clean surface.
Disassembling the flow cell
The TaperSlit flow cell consists of these components:
•Flow cell body
• Cuvette lens
• Split ring (cuvette lens holder)
• Cuvette lens screw
• Lens mount screw
•Exit window
• Exit window mount
Caution: To prevent contamination, use powder-free finger cots or gloves
when disassembling, inspecting, cleaning, or replacing parts within the
Waters TaperSlit™ Flow Cell or when removing or replacing the flow cell
within its assembly.
TP0150
8
Flow cell assembly
Cuvette subassembly
