Waters 2489 - Chart Marks

2-28 Installing the Detector

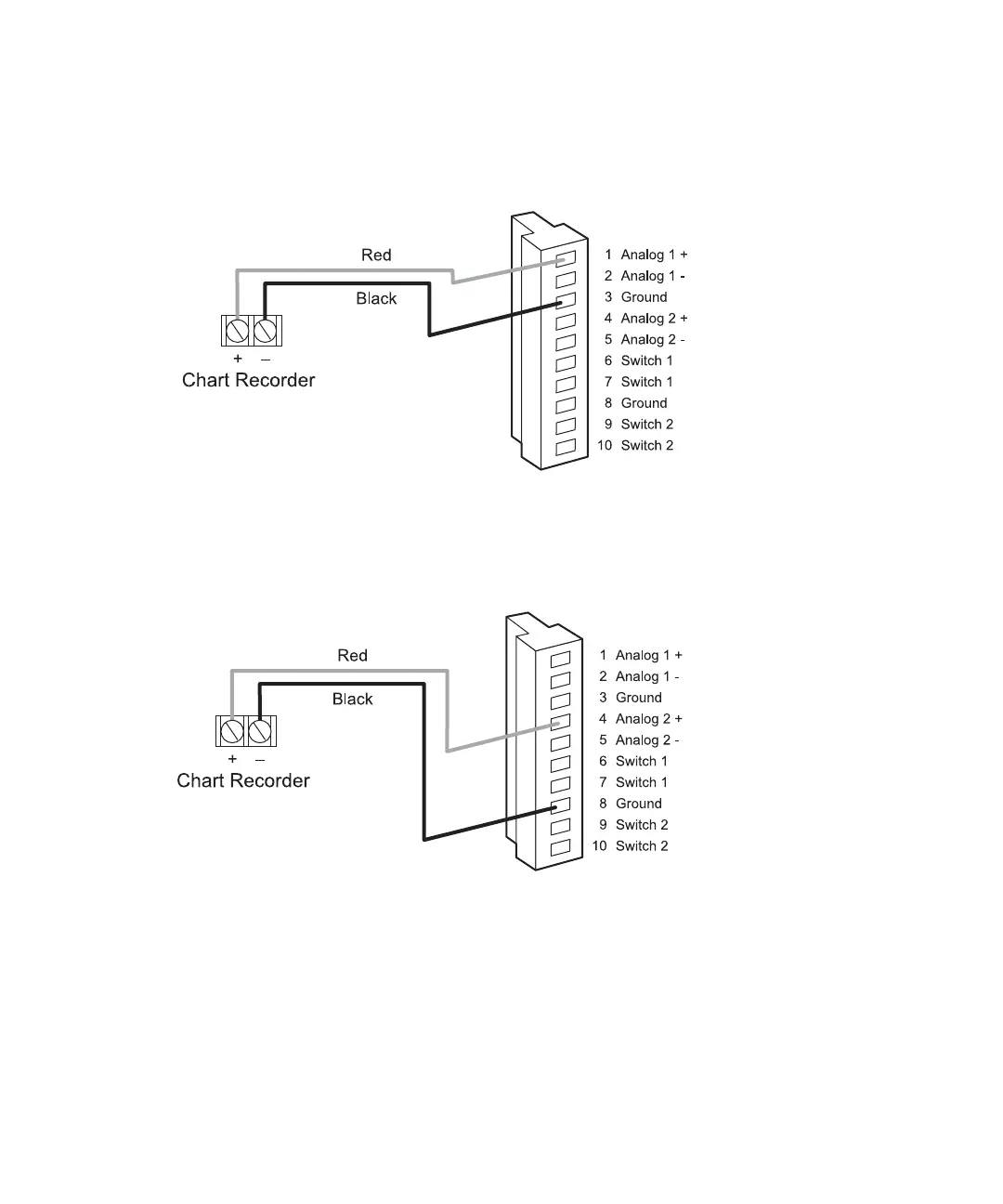

Chart recorder 2-V output connections on the detector
Chart marks
You can generate a chart mark from the front panel of the detector. A chart
mark signal is generated whenever one of the following occurs:
• You press the Chart Mark key on the detector keypad.
Waters 2489
I
TP01487
Waters 2489
I
TP01488
