Making electrical power connections 2-17
After configuring the detector lamp on/off signal, you can turn the lamp on or
off from the separations module by making the connections shown in the table
and figure below.

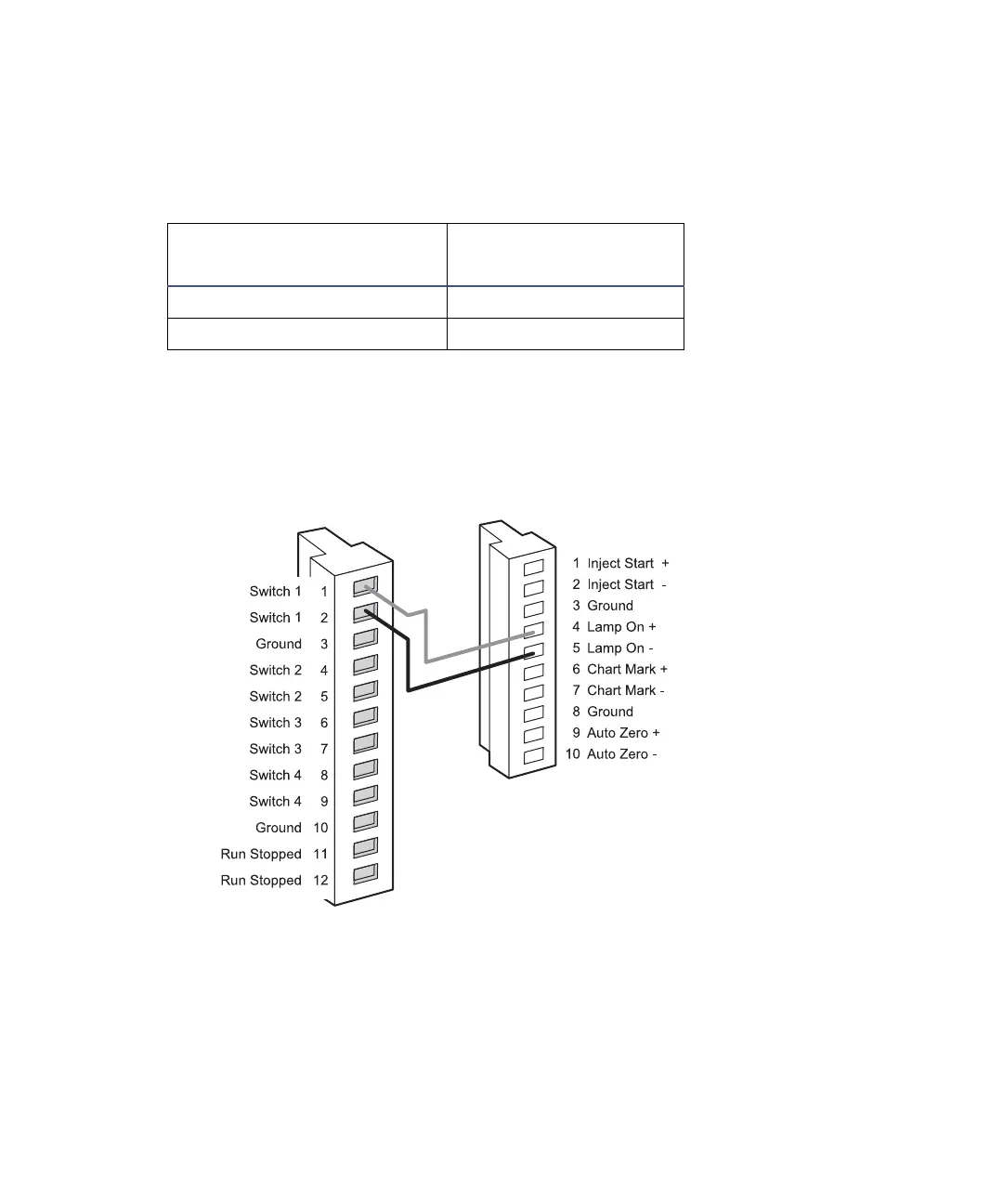

Separations module connections to the detector for turning the lamp on or
off
Detector connections to separation module (lamp on or off)
2695 Separations Module
(A Outputs)
2489 Detector (II)
Pin 1 Switch 1 Pin 4 Lamp On/Off +
Pin 2 Switch 1 Pin 5 Lamp On/Off –
Waters 2489
II
TP01524
Waters 2695
A
