Preliminary Setup
Weber Packaging Solutions, Inc. 3-11
Air Filter Setup
NOTE: The air filter assembly must be connected to the applicator prior to operation.
Failure to do so will result in a decrease in performance and/or applicator failure.
The air filter removes particulate material from the plant air supply. The filter assembly consists on the
fitting, filter, and mounting bracket.
To install the air filter:
1. Attach the mounting bracket on the side of the applicator U-arm with 2 cap screws.
NOTE: The bracket must be oriented so the filter will be perpendicular from the
floor for proper operation.
2. Attach the filter to the mounting bracket with 2 long cap screws.
3. Connect the air hose from the applicator to the outlet side of the filter.
AIR
FILTER
INDUSTRIAL
INTERCHANGE FITTING
(MALE)

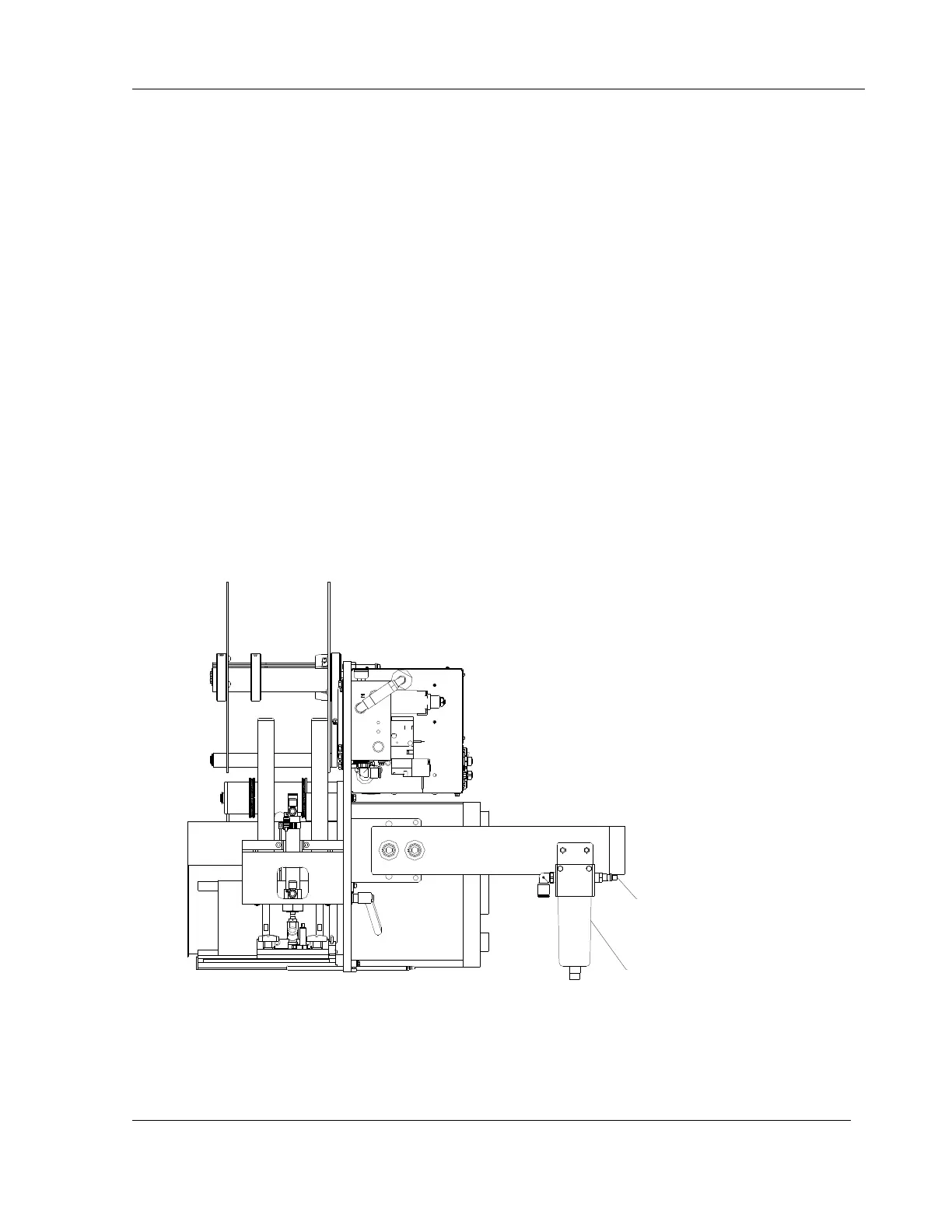

Figure 3-7: Air Filter
