Chapter 9
9-16 Printer-Applicator User’s Manual
Center of Gravity Drawings
C OF UARM
PIVOT
MOUNTING
L
C OF UARM
MOUNTING
L
-110 PAX 4
-NO MEDIA ON UNWIND
-NO LINER ON REWIND
-3" STROKE
-4"x6" PAD

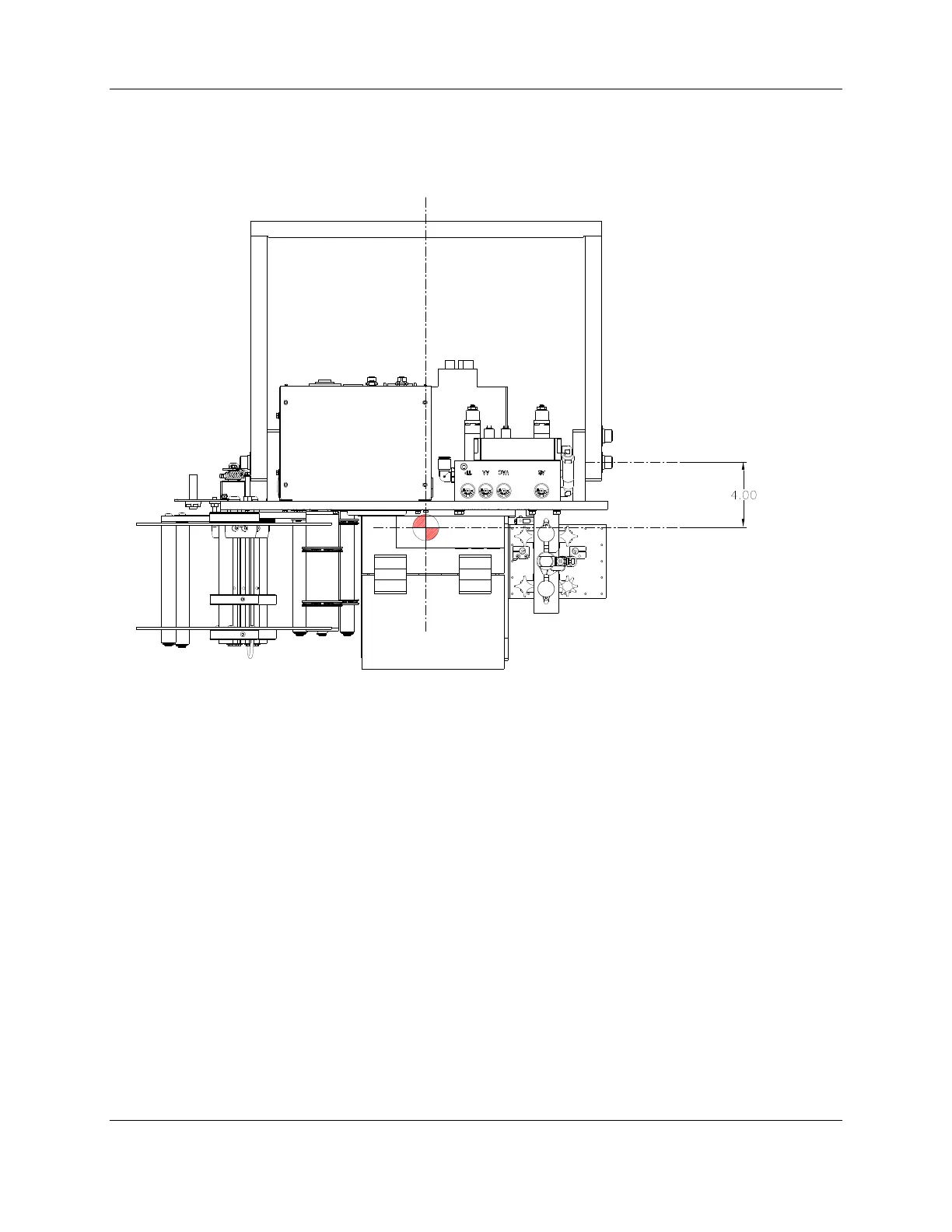

Figure 9-11: Center of Gravity
