Appendix
Weber Packaging Solutions, Inc. 9-3
JMP2 Settings

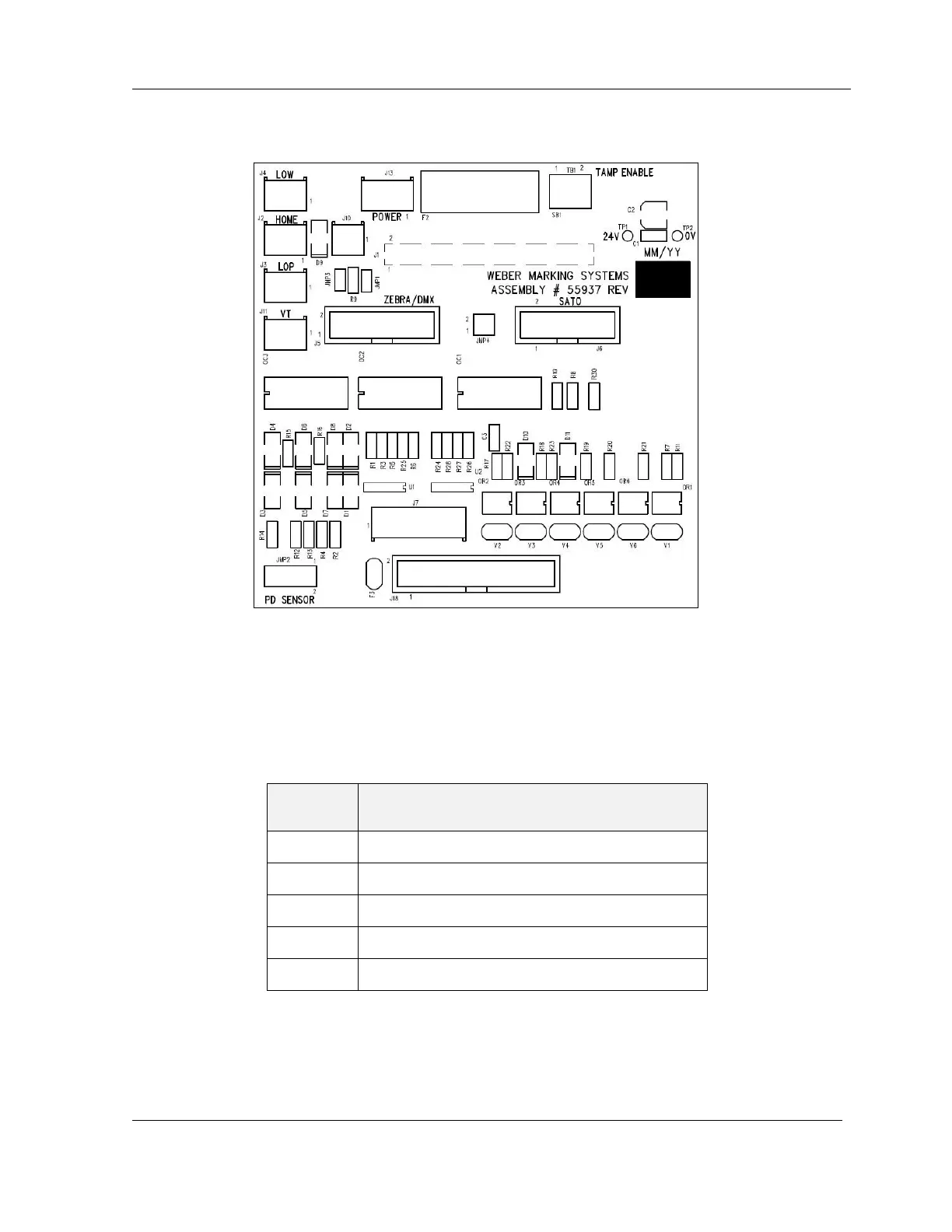

Figure 9-2: Rear View of IO Board with Call-Out to JMP2
Jumper
Position
Product Detector Output Configuration
1-2
Sourcing (PNP) on Pin 2 (Factory Default Position)
3-4
Sinking (NPN) on Pin 2
5-6
Spare Jumper Position
7-8
Sourcing (PNP) on Pin 4
9-10
Sinking (NPN) on Pin 4
