Applicator Setup
Weber Packaging Solutions, Inc. 4-3
4. Set the main [POWER ON/OFF] switch to the ON position. Wait for the applicator and
print engine to fully power up.
5. Press the [FEED] button on the print engine to dispense a label.
6. If the label is not fully dispensed from the label liner a the end of the feed, the stop
position must be adjusted. If the label is fully dispensed and the next label also begins to
dispense (extends past the peeler bar) at the end of the feed, the stop position must be
adjusted.
7. Refer to the Print Engine Manual for specific instructions on how to adjust the stop
position of the label.

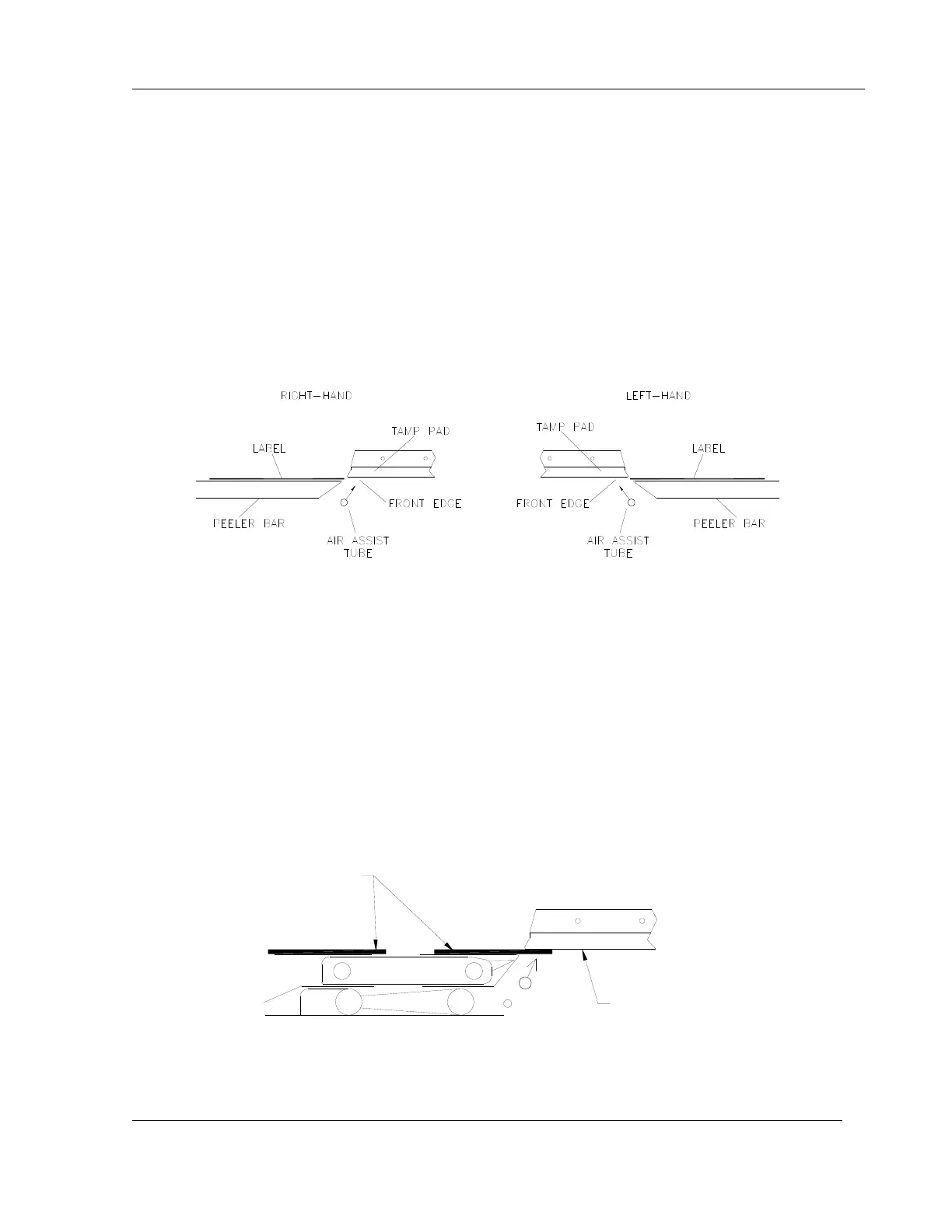

Figure 4-1: Air Assist Tube Alignment
Tamp Home Adjustment
The tamp home position is where the tamp pad receives the label after it has been printed. The tamp
will then extend to apply the label to the product. For most situations, the tamp home adjustment
should be set to a position where the pad surface is one label thickness above the printer peeler bar.
PAD SURFACE
LABEL
RIGHT HAND
Figure 4-2: Printer Peeler Bar/Tamp Home Alignment
