Chapter 9
9-2 Printer-Applicator User’s Manual
Product Detector Jumpers
The product detector triggers a label application cycle. JMP2 on the rear of the Model 4300 IO board
is used to configure the product detector input. The product detector connects to the product detector
receptacle located on the rear of the Model 4300 enclosure. The receptacle is a 5-conductor, M12,
female connector that accepts 4-conductor and 5-conductor cables terminated with an M12 male
connector.

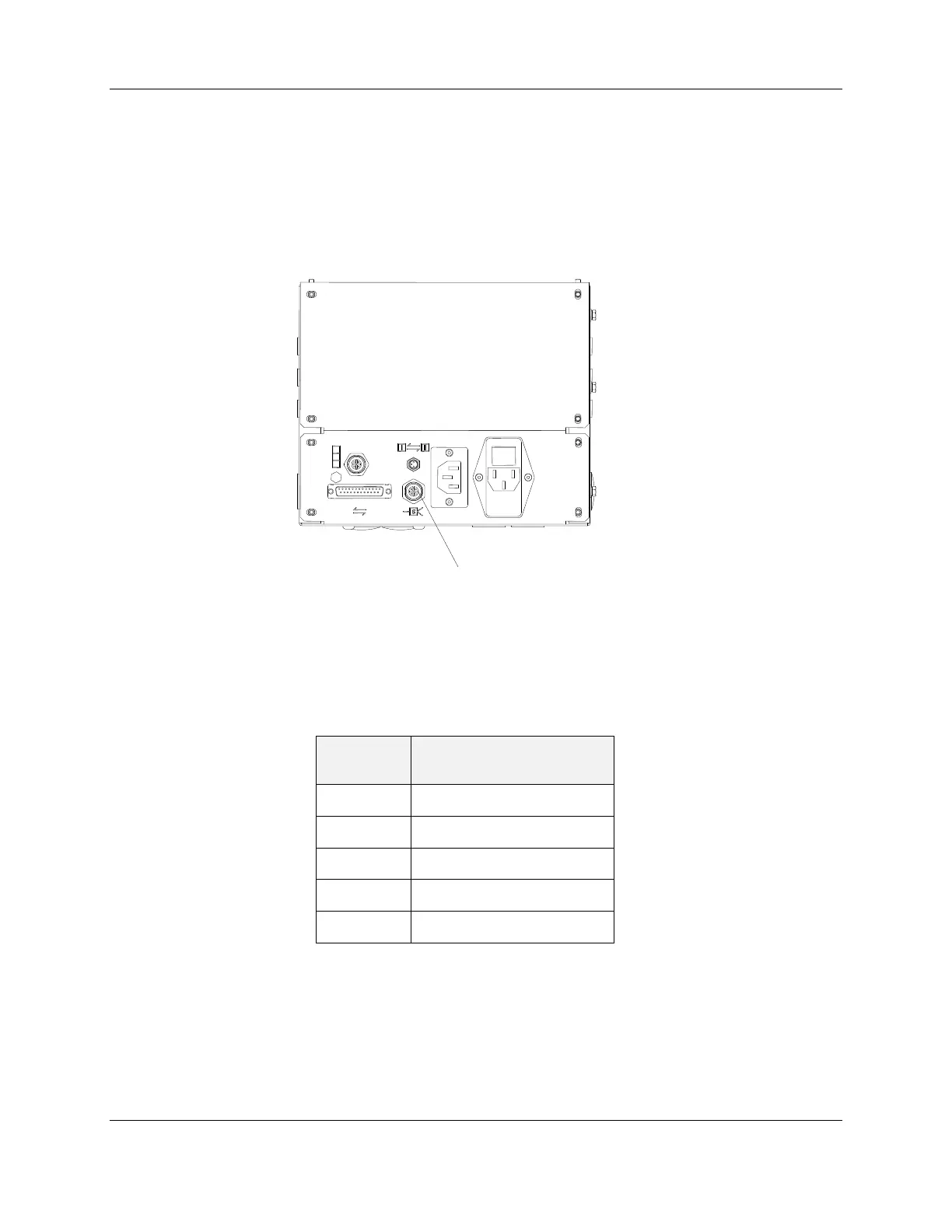

Figure 9-1: Rear View of Enclosure with Call-Out to Product Detector
Pin
Number
Allowed Connections
1
+24 VDC
2
Sink or source input
3
O VDC
4
Source or sink input
5
No connection
PRODUCT DETECTOR
